System Description

21

MXE-5300

2.4

Internal I/O Connectors

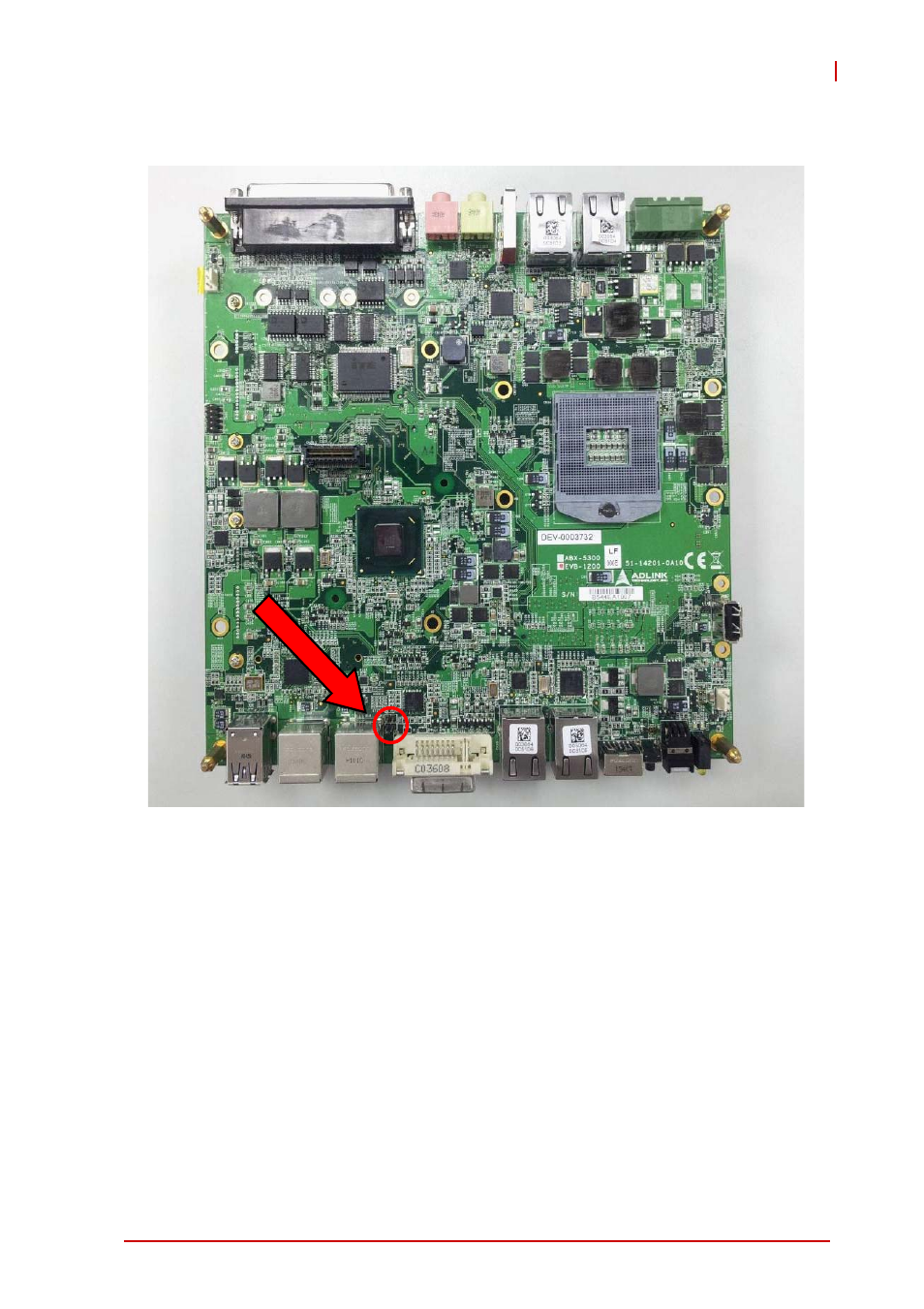

Figure 2-6: Mainboard Top View

(showing Clear CMOS and ME RTC Register Jumpers)

2.4.1

Clear CMOS and ME RTC Register Jumpers

Under abnormal conditions in which the MXE-5300 controller fails
to boot, clearing the BIOS content stored in CMOS and restoring
the default settings may be effective. To clear CMOS, shorten
