System Description 13
MXE-5300

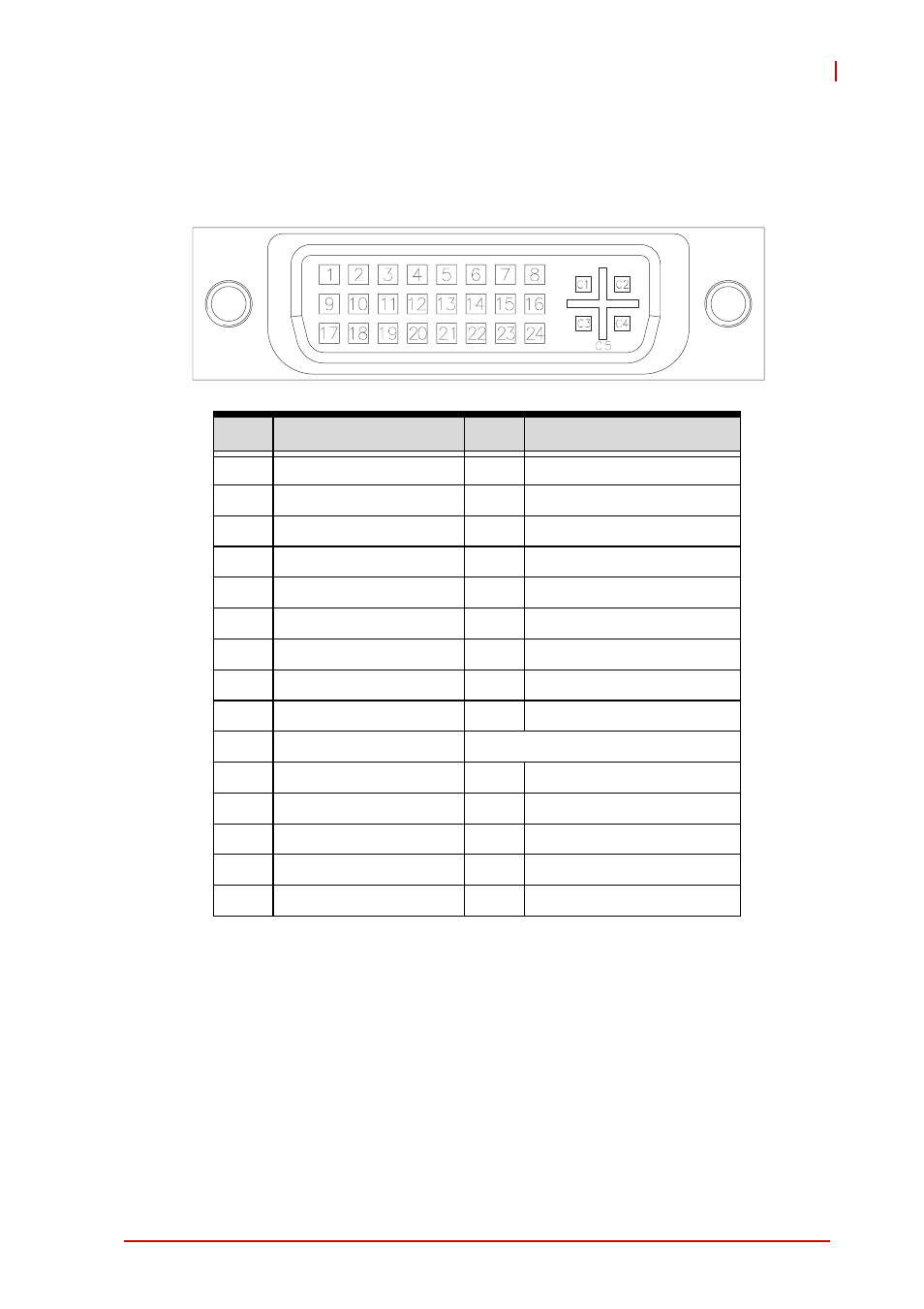

2.2.6 DVI-I Connector
The MXE-5300 provides one DVI-I connector for external monitor,
which can separate to VGA and DVI-D (single link) interfaces.
Table 2-6: DVI-I Connector Pin Assignment
2.2.7 USB 2.0 Connectors
The MXE-5300 provides four Type A USB 2.0 ports on the front
panel. All are compatible with Hi-Speed, full-speed, and low-speed
USB devices.
The MXE-5300 supports multiple boot devices, including USB
flash, USB external HD, USB floppy, and USB CD-ROM drives.
Pin Signal Name Pin Signal Name
1 DVI Data 2- 16 Hot plug detect
2 DVI Data 2+ 17 DVI Data 0-
3 GND 18 DVI Data 0+
4 CRT DDC clock 19 GND
5 CRT DDC data 20 N/C
6 DVI DDC clock 21 N/C
7 DVI DDC data 22 GND
8 Analog vertical sync 23 DVI clock +
9 DVI Data 1- 24 DVI clock -
10 DVI Data 1+
11 GND C1 Analog Red
12 N/C C2 Analog Green
13 N/C C3 Analog Blue
14 +5V C4 Analog horizontal sync
15 GND C5 Analog GND
