Page 23 ETX-Proto User’s Manual

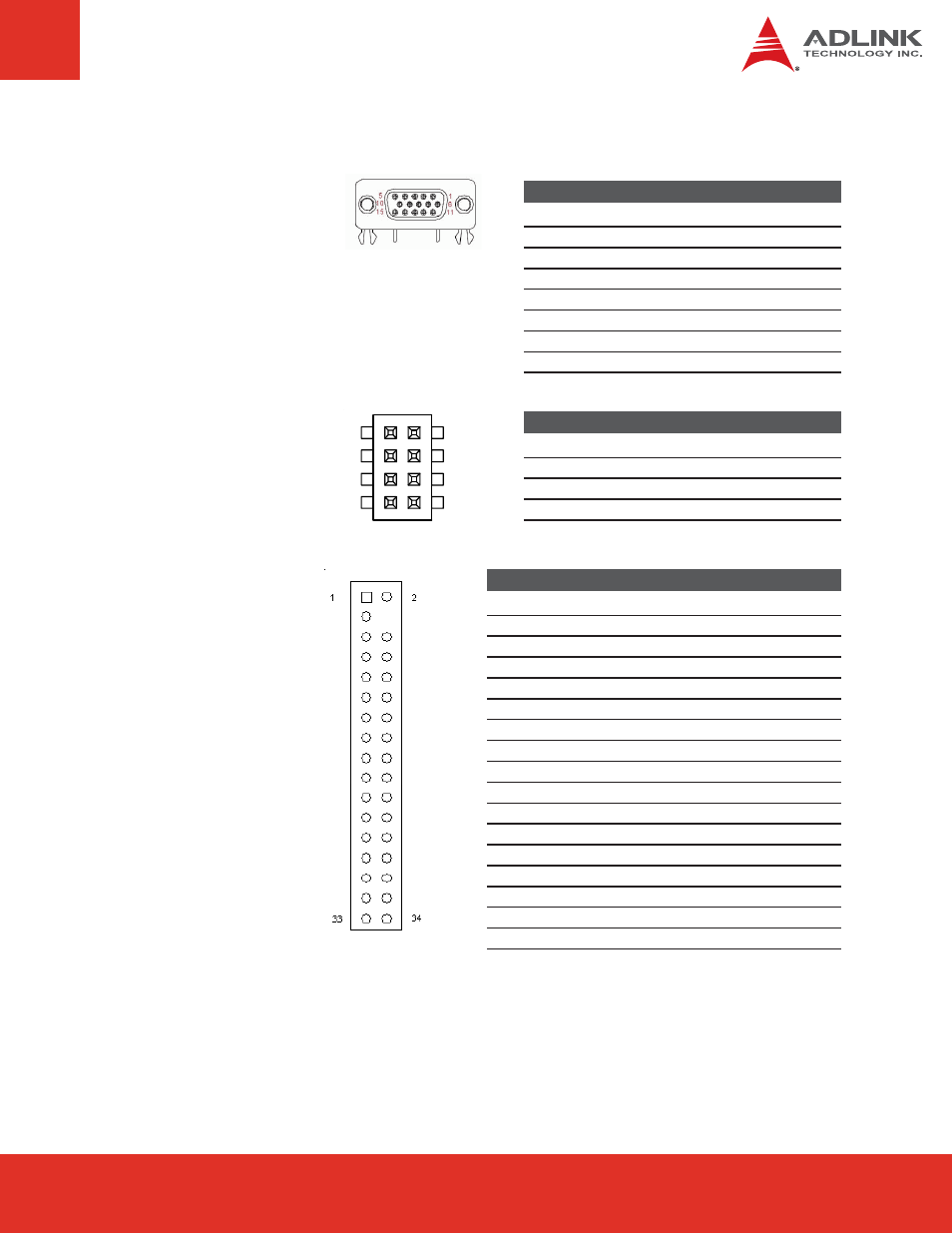

CN8: TV-out
Pin Signal Pin Signal
1 Red 2 Green
3 Blue 4 VCC pull-up
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 VCC pull-up 12 DDC2B Data
13 HSYNC 14 Vsync
15 DDC2B clock
6.10 Video
3
5
7
2
4
8
6
1
Pin Signal Pin Signal
1 Y 2 GND
3 C 4 GND
5 COMP 6 GND
7 SYNC 8 GND
CN7: VGA CRT
CNY4: LVDS Pin Signal Pin Signal
1 LVDS_I2C_DAT 2 LVDS_I2C_CK
3 N.C 4 N.C
5 GND 6 LVDS_A0-
7 LVDS_A0+ 8 LVDS_VDD_EN
9 LVDS_A1- 10 LVDS_A1+
11 LVDS_BKLT_EN 12 LVDS_A2+
13 LVDS_A2- 14 N.C
15 LVDS_A_CK- 16 LVDS_A_CK+
17 N.C 18 LVDS_A3+
19 LVDS_A3- 20 GND
21 LVDS_B0- 22 LVDS_B0+
23 GND 24 LVDS_B1-
25 LVDS_B1+ 26 GND
27 LVDS_B2- 28 LVDS_B2+
29 GND 30 LVDS_B_CK+
31 LVDS_B_CK- 32 N.C
33 LVDS_B3+ 34 LVDS_B3-
