Page 21 ETX-Proto User’s Manual

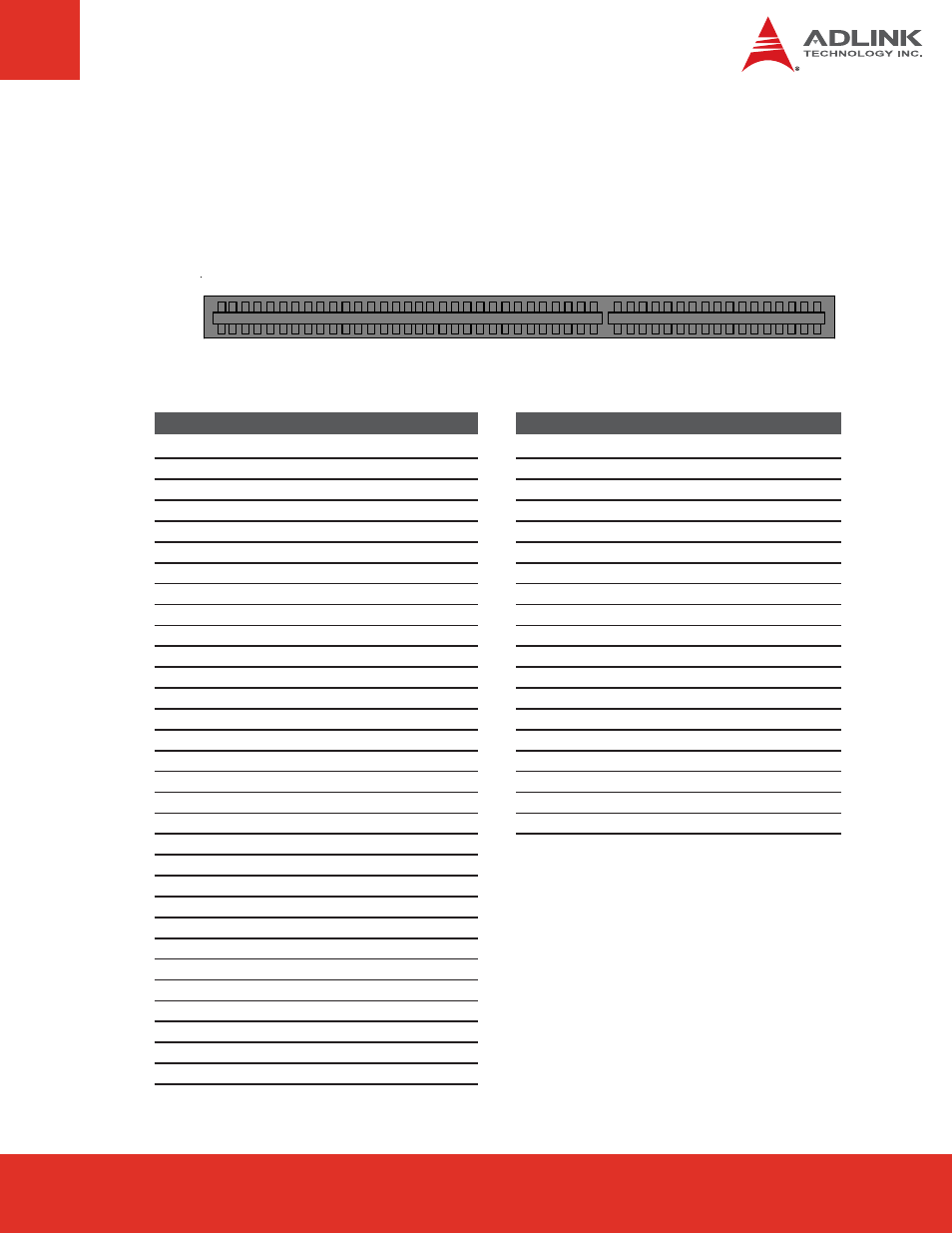

A1
B1 A31
B31
D1
C1 C18
D18
A Signal B Signal
1 IOCHK# 1 GND
2 SD7 2 RSTDRV
3 SD6 3 +5V
4 SD5 4 IRQ9
5 SD4 5 +5V
6 SD3 6 DRQ2
7 SD2 7 -12V
8 SD1 8 NOWS#
9 SD0 9 +12V
10 IOCHRDY 10 GND
11 AEN 11 SMEMW#
12 SA19 12 SMEMR#
13 SA18 13 IOW#
14 SA17 14 IOR#
15 SA16 15 DACK#3
16 SA15 16 DRQ3
17 SA14 17 DACK#1
18 SA13 18 DRQ1
19 SA12 19 REFSH#
20 SA11 20 SYSCLK
21 SA10 21 IRQ7
22 SA9 22 IRQ6
23 SA8 23 IRQ5
24 SA7 24 IRQ4
25 SA6 25 IRQ3
26 SA5 26 DACK#2
27 SA4 27 TC
28 SA3 28 BALE
29 SA2 29 +5V
30 SA1 30 OSC
31 SA0 31 GND
C Signal D Signal
1 SBHE# 1 MCS16#
2 LA23 2 IOCS#
3 LA22 3 IRQ10
4 LA21 4 IRQ11
5 LA20 5 IRQ12
6 SA19 6 IRQ14
7 SA18 7 IRQ15
8 SA17 8 DACK#0
9 MEMR# 9 DRQ0
10 MEMW# 10 DACK#5
11 SD8 11 DRQ5
12 SD9 12 DACK#6
13 SD10 13 DRQ6
14 SD11 14 DACK#7
15 SD12 15 DRQ7
16 SD13 16 +5V
17 SD14 17 MASTER#
18 SD15 18 GND
SLA1: 8/16-bit ISA slot
SLA2: 8/16-bit ISA slot
SLA3: 8/16-bit ISA slot
