ETX-Proto User’s Manual Page 22

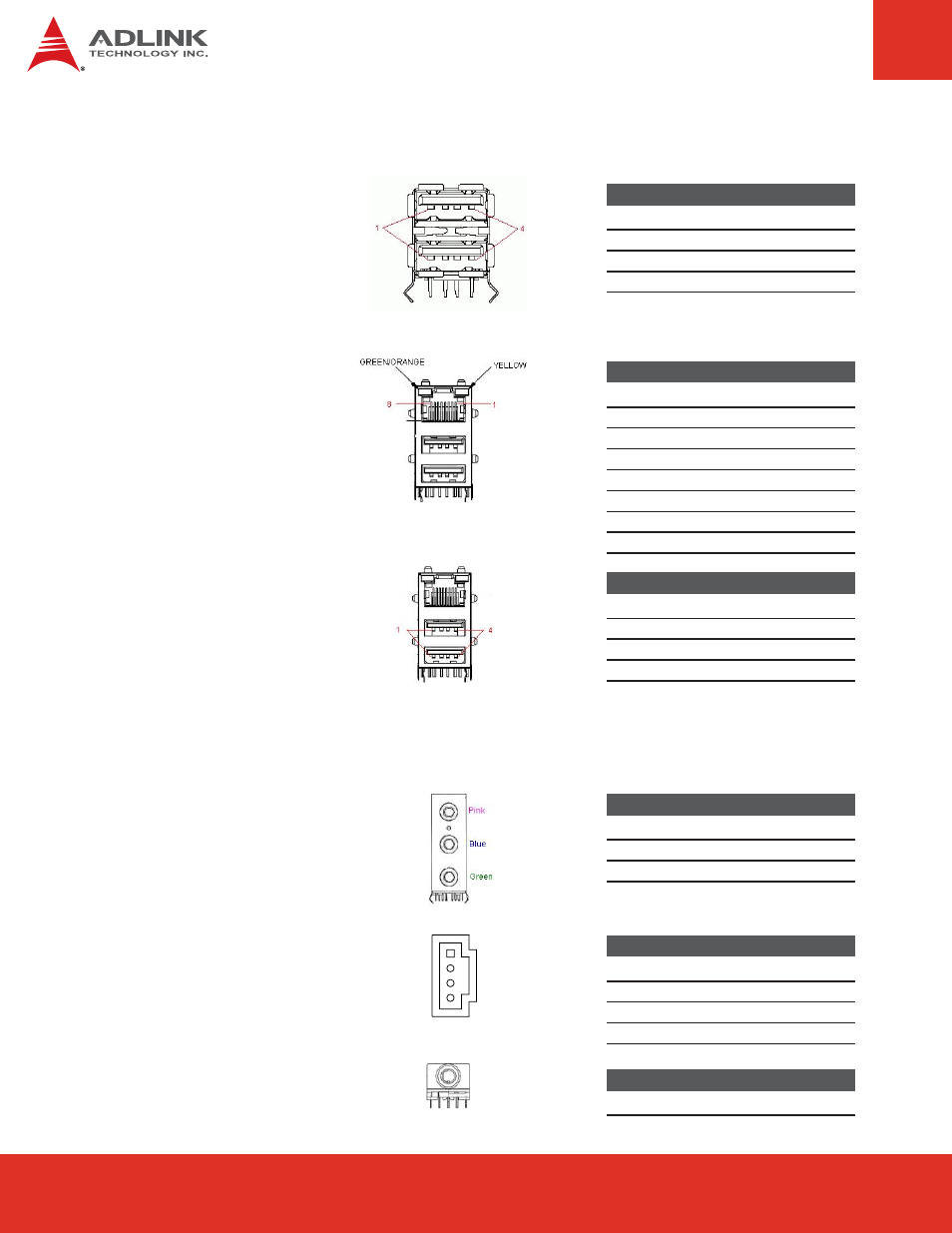

CN3: USB Connector
Pin Signal
1 VCC
2 USB-
3 USB+
4 Ground
CN4: RJ-45 LAN
+ USB
Pin Signal Function
1 TXDP Transmit Data(+)
2 TXDN Transmit Data(-)
3 RXDP Receive Data(+)
4 LANCT1 Termination
5 LANCT2 Termination
6 RXDN Receive Data(-)
7 LANCT3 Termination
8 LANCT4 Termination
Pin Signal
1 VCC
2 USB-
3 USB+
4 Ground
PH1: Audio
Color Signal
PINK MIC IN
BLUE LINE IN
GREEN LINE OUT
CN5: Audio CD-in
Color Signal
1 LINR
2 AGND
3 AGND
4 LINL
4
3
2
1
CN6: Audio Amplifier
Color Signal
BLACK Audio Out
6.8 USB and LAN
6.9 Audio
