Getting Started 59
cPCI-3615
5.4 Removing the DB-3610CF Daughter Board
To access SW1 (VGA/GPIO Mode Switch) which is under the
DB-3610CF Daughter Board, follow the steps below (see
“cPCI-3615 Blade Assembly Layout” on page 20 for DB-3610CF
location).

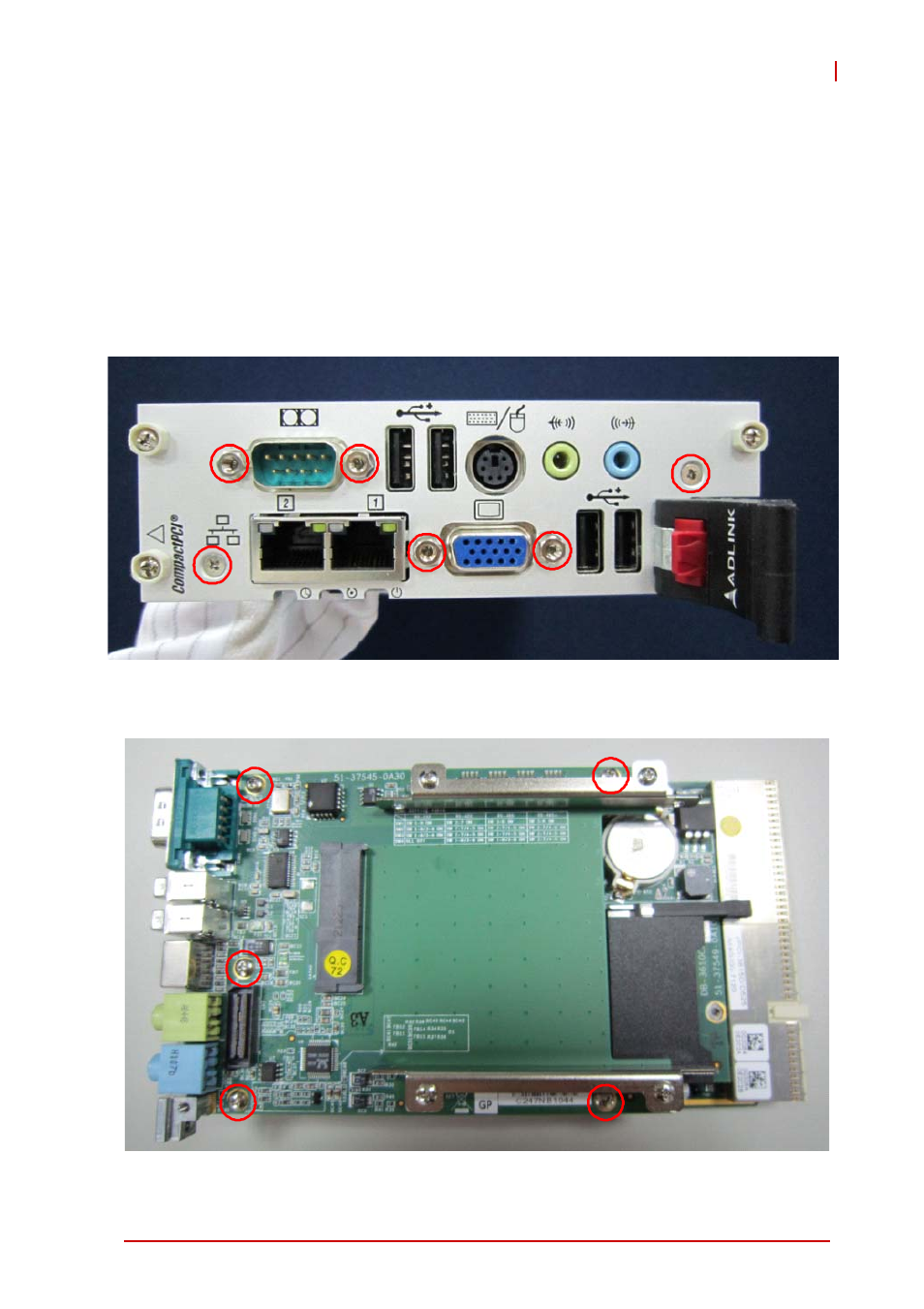

1. Remove the front panel from the blade assembly by
unscrewing the screws and standoffs as shown (dual-slot
version shown).
2. Remove the Layer 2 daughter board by unscrewing the five
screws as shown below (not required for single-slot version).
