Getting Started 55
cPCI-3615
5.3 PMC/XMC Card Installation
The cPCI-3615P provides one PMC/XMC slot designed to support
3.3V or 5V V(I/O) (default 3.3V) and 5V or 12V VPWR (default
5V). Before you install the PMC/XMC card on the cPCI-3615P,
please make sure that the PMC V(I/O) jumper JPX2 and XMC
VPWR jumper JPX1 have been correctly set (see page 45).

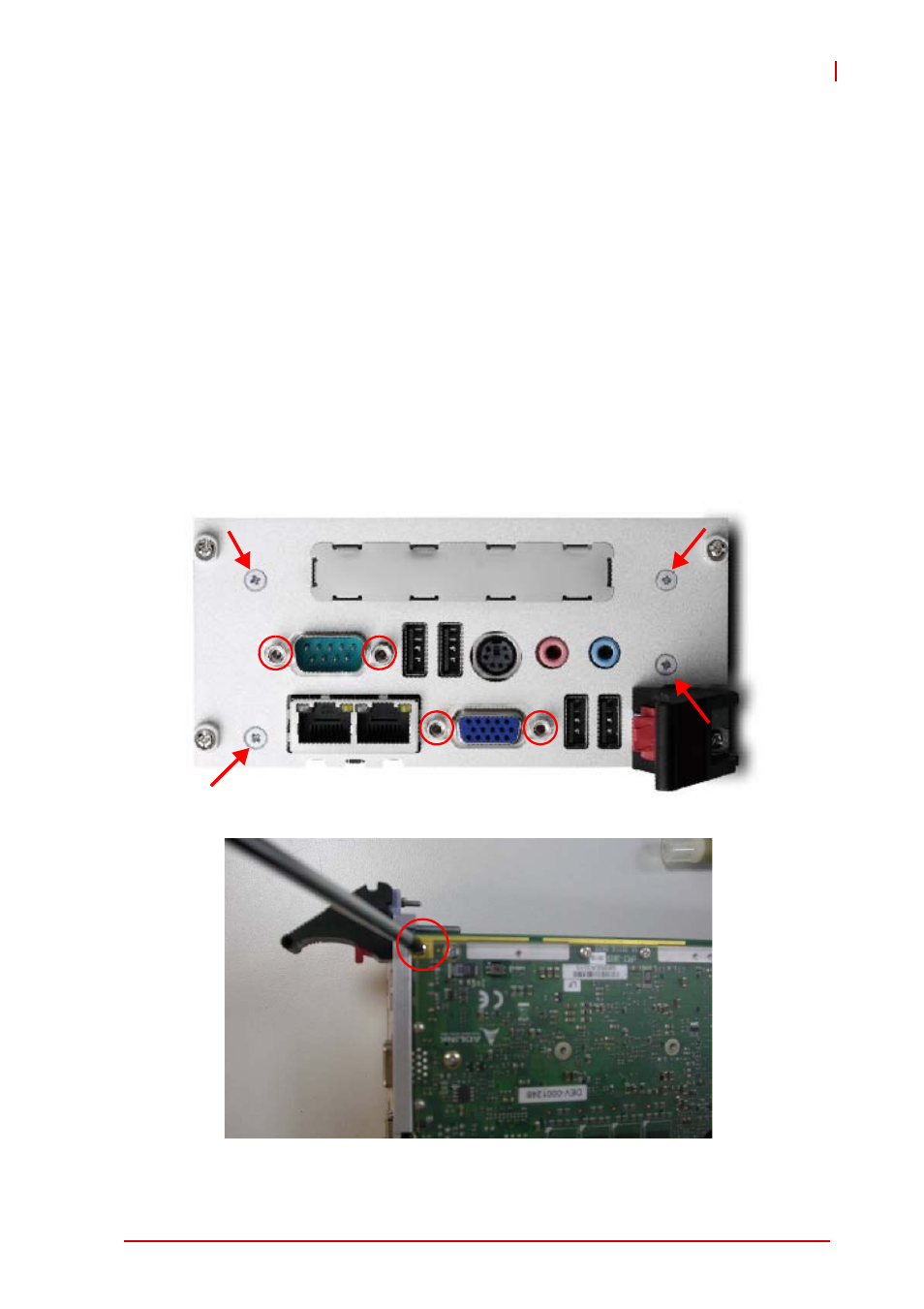

1. To install a PMC/XMC card on the cPCI-3615P, the front
panel and DB-3UMC daughter board must first be disassem-
bled. Remove the front panel by unscrewing the four screws
securing it to the PCB assembly (arrows), the four stand-
offs securing the VGA and COM connectors (circles), and
one screw under the ejector handle.
