Board Interfaces

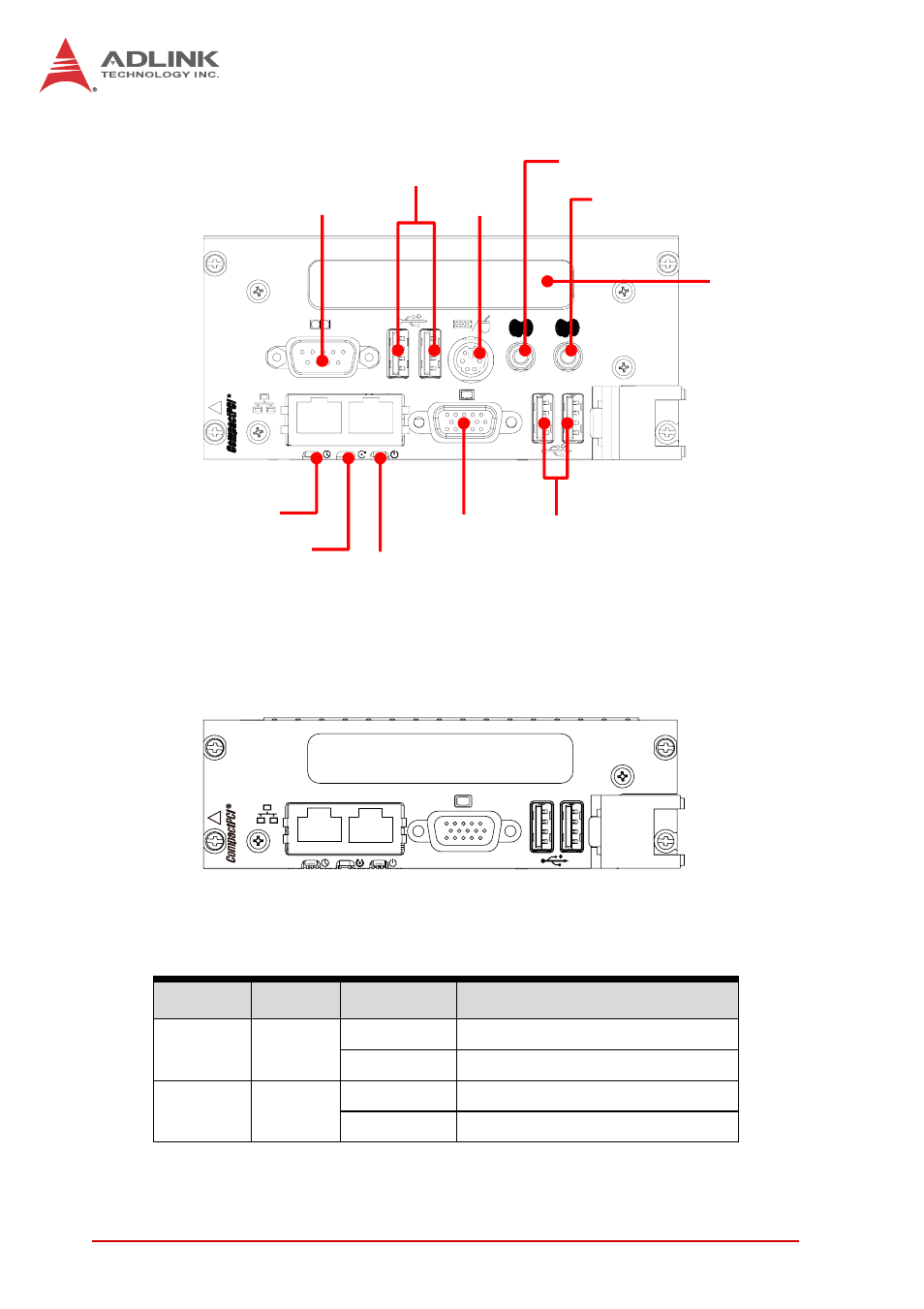

Figure 4-5: cPCI-3615P Front Panel Layout

Optional 2-slot version with PMC/XMC as shown below is avail-
able by request. Please contact your ADLINK sales representative.

System LEDs

Table 4-1: cPCI-3615 Front Panel System LED Descriptions

LED

Color

Condition

Indication

Power Green

OFF

System is off

System is on

WDT Red

OFF

No Watchdog event

Blinking

Watchdog event alert

cPCI-3615P

VGA

USB 2.0

Power LED

WDT LED

Reset button

COM1

USB 2.0

PS/2

KB/MS

Line-in

Line-out

PMC/XMC
