Introduction

15

PCIe-2602

1.5.5

Switch Settings

Switches for digital I/O and card ID settings, allowing identification
of individual cards in a multi-card system, are located as follows.

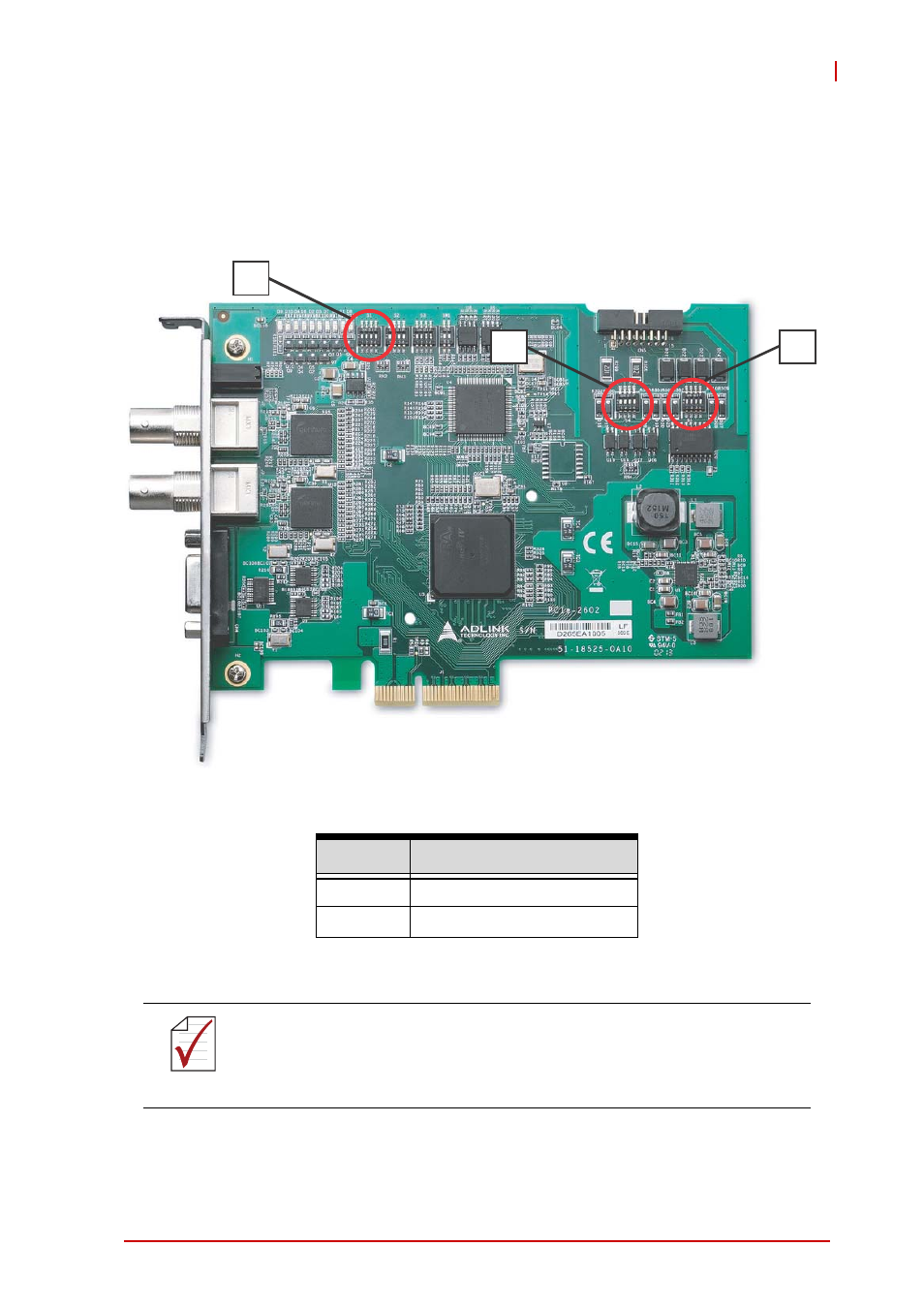

Figure 1-10: Switch Locations

Table 1-8: Switch Functions

Switch

Function

S1

Card ID Settings

S4-S5

Digital I/O Settings

NOTE:

NOTE:

Default setting for sliders S1, S4 and S5 is OFF

S1

S4

S5
