30 Function Library
1: Top-down, in which order of the rows is reversed, with the
top row the first row in memory, followed by the next row down,
with the bottom row of the image the last row in the buffer, such
that first byte in memory is the top-left of the image, with physi-
cal layout of a top-down image as shown.

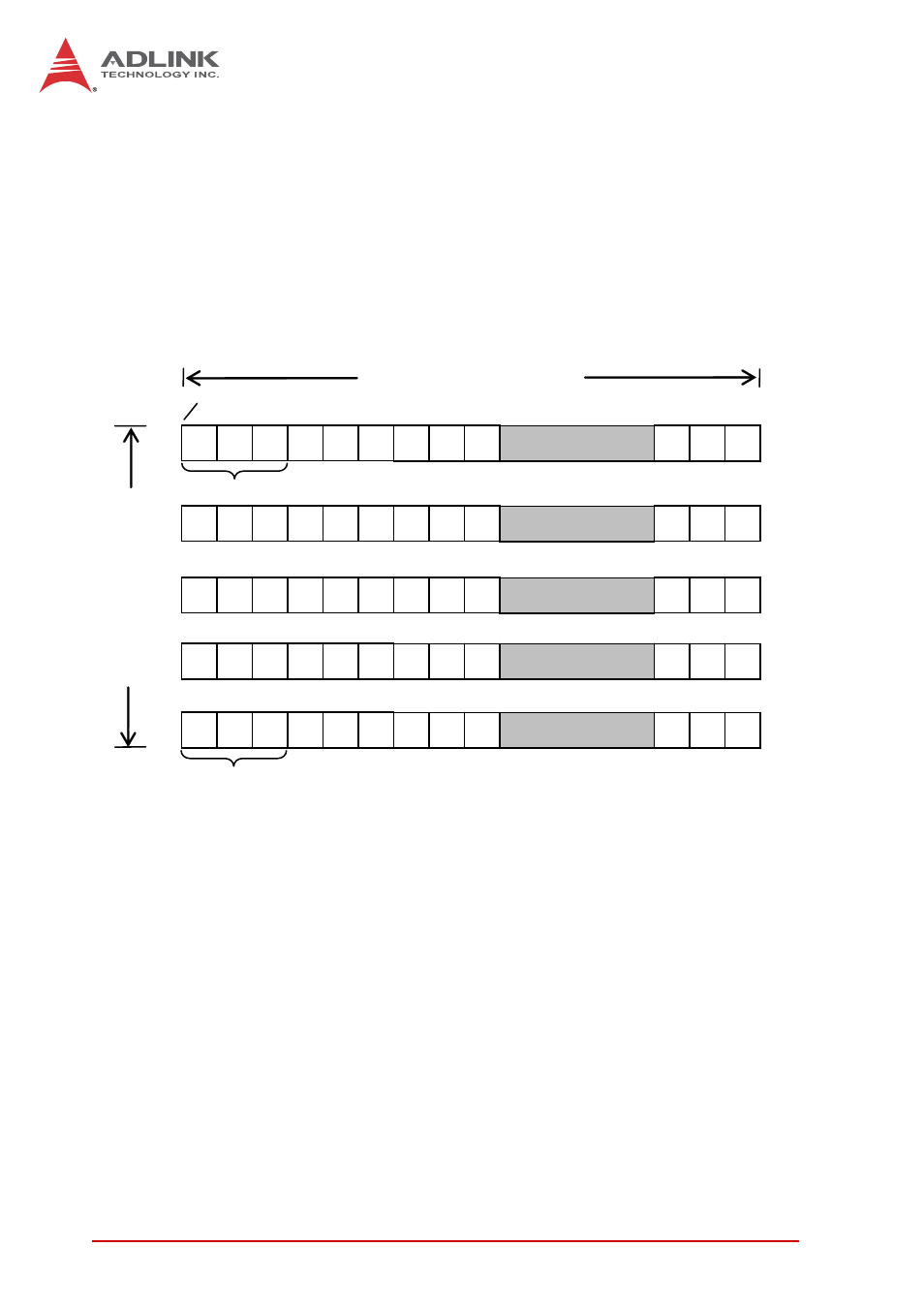

Figure 2-2: Top-down Image Orientation
Return Value
No error occurs if return value ≥ 0; if a negative value,
please refer to Other Functions for return code error informa-
tion.
2.4.3 Event & Callback Functions
Event Selector
Sets or retrieves the event type.
B G R B G R B G R B G R
…
top left pixel
1
B G R B G R B G R B G R 2
B G R B G R B G R B G R 3
…
…
B G R B G R B G R B G R 4
…
B G R B G R B G R B G R 5
…
Image Hei
g
ht
E.g. Color space = RGB24
Image Width
Start of buffer
bottom left pixel
