5 timebase, 1 internal sampling clock, 2 external reference clock (pcie-9814p only) – ADLINK PCIe-9814 User Manual

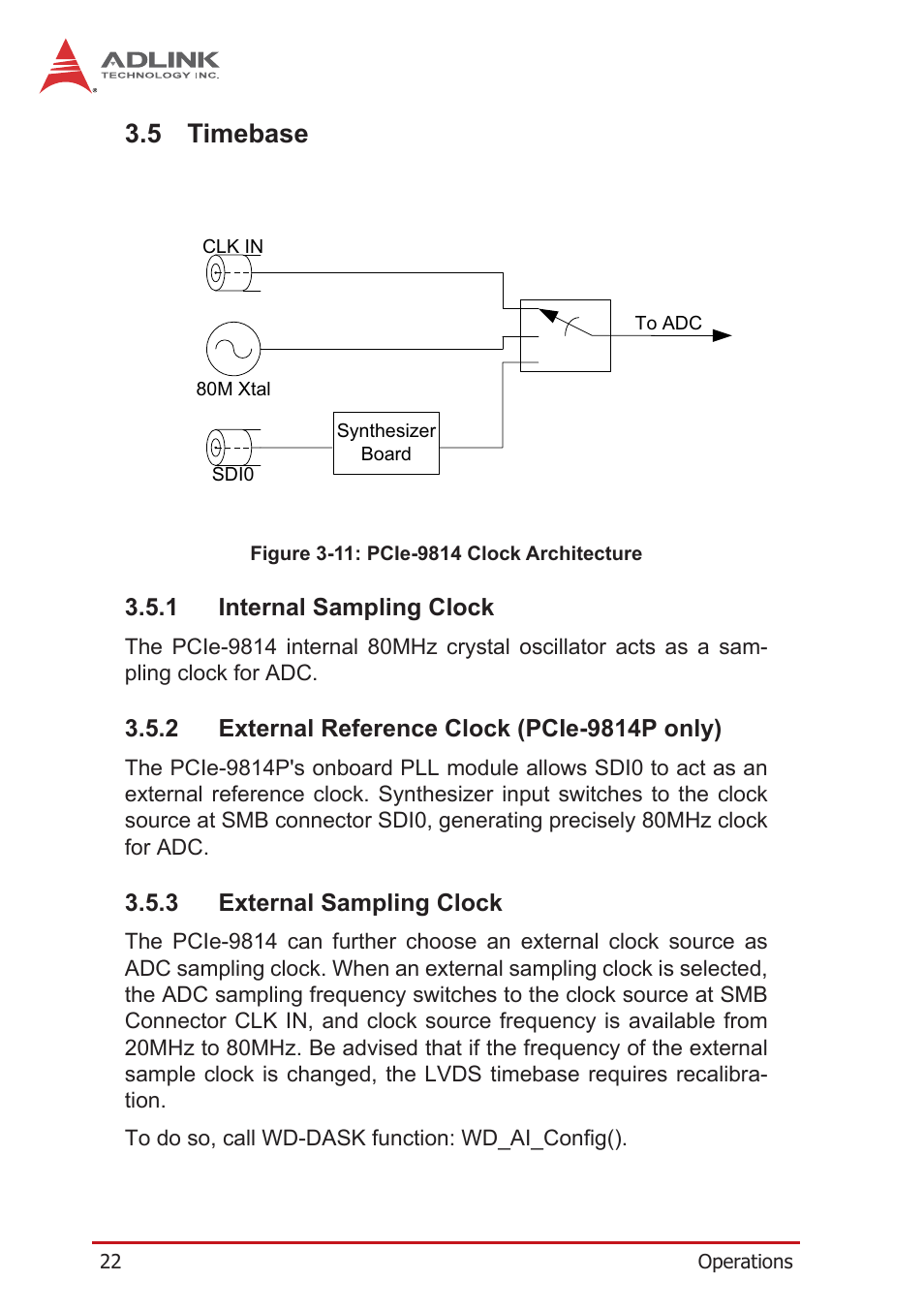

Page 32: 3 external sampling clock, Timebase, Internal sampling clock, External reference clock (pcie-9814p only), External sampling clock, Figure 3-11, Pcie-9814 clock architecture

5 timebase, 1 internal sampling clock, 2 external reference clock (pcie-9814p only) | 3 external sampling clock, Timebase, Internal sampling clock, External reference clock (pcie-9814p only), External sampling clock, Figure 3-11, Pcie-9814 clock architecture | ADLINK PCIe-9814 User Manual | Page 32 / 46 5 timebase, 1 internal sampling clock, 2 external reference clock (pcie-9814p only) | 3 external sampling clock, Timebase, Internal sampling clock, External reference clock (pcie-9814p only), External sampling clock, Figure 3-11, Pcie-9814 clock architecture | ADLINK PCIe-9814 User Manual | Page 32 / 46
