32 ● Pin Assignments
4 V(I/O)
5 ALERT
The SMB is connected to the P2 of the system slot.

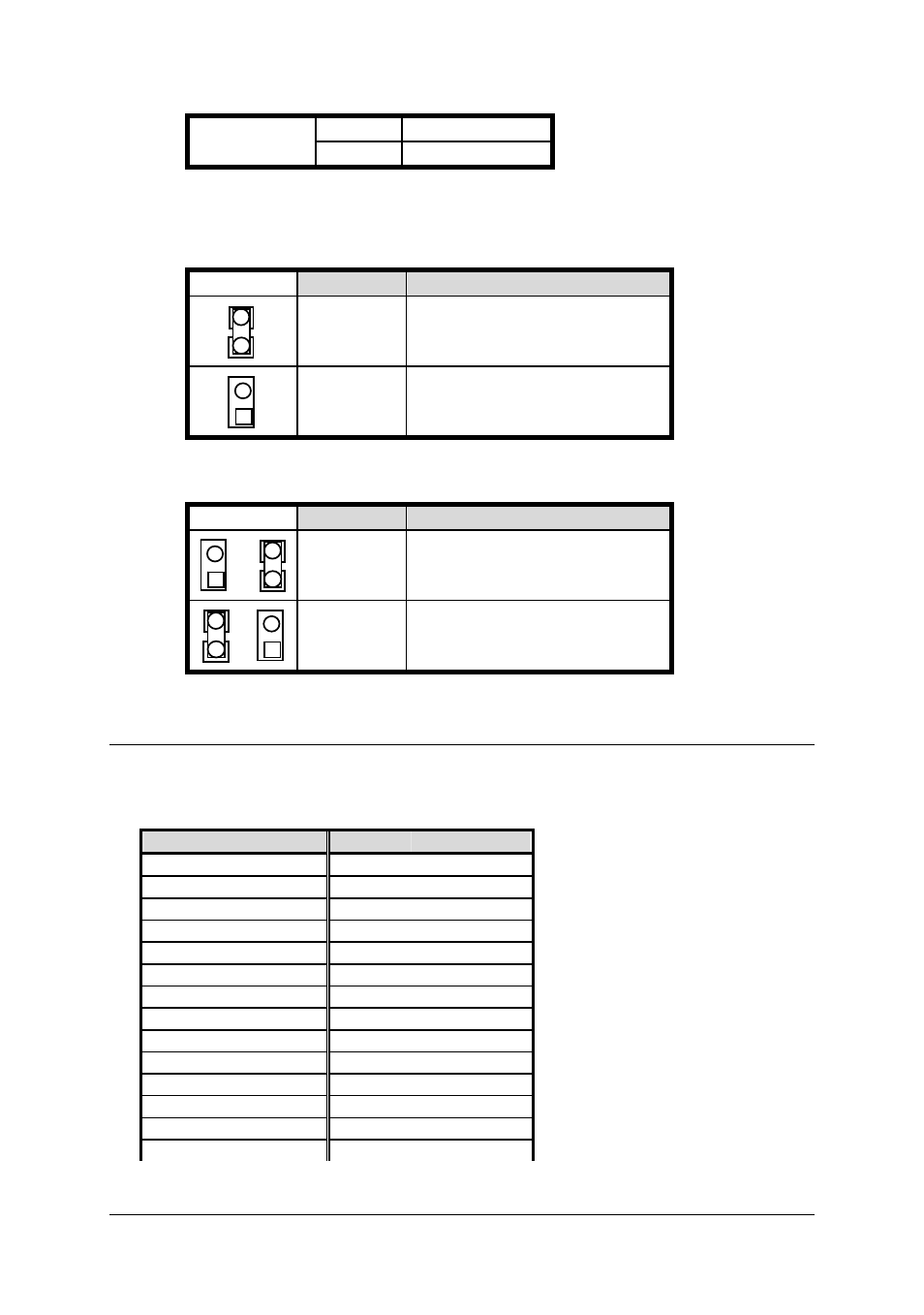

JP1: PXI Bus Speed Control
Pin 1-2 Description
Short Short M66EN to ground to
force PCI bus run 33M Hz
Open
(default)
PCI bus speed defined by
M66EN on the PXI bus
JP2 JP3: PXI 10MHz Reference Clock Control
JP2 JP3 Pin 1-2 Description
Open JP2
Short JP3
External clock through the
PXI_CLK10_IN
on star trigger slot
Short JP2
Open JP3
(default)
Internal 10MHz system clock
PXI_CLK10
B.3 LCD Connectors Pin Assignment
LCD Signal Connector
Signal Pin # Pin # Signal
NC 1 2 NC
GND 3 4 GND
VDD 5 6 VDD
NC 7 8 NC
P0 9 10 P1
P2 11 12 P3
P4 13 14 P5
NC 15 16 NC
P8 17 18 P9
P10 19 20 P11
P12 21 22 P13
NC 23 24 NC
P16 25 26 P17
P18 (N/C) 27 28 P19 (N/C)
