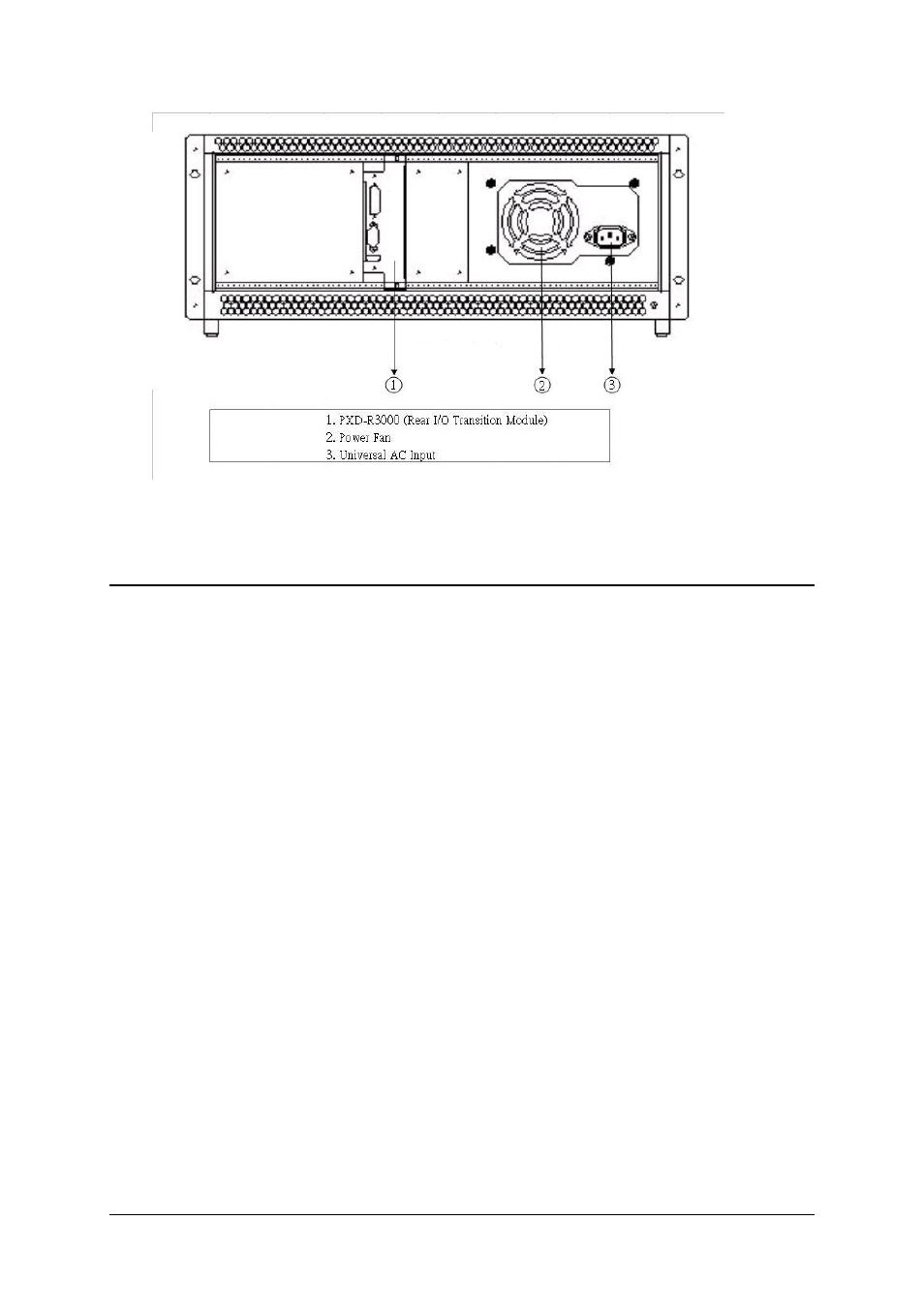

Figure 1-2 Rear View of the PXIS-2650/2650T Chassis
1.3 OEM options
The standard PXIS-2650 series chassis includes two backplanes and a
power supply unit in addition to the enclosure metal parts. The following
sections depict the standard parts used in the PXIS-2650 series.
1.3.1 Backplane
The PXIS-2650 series has 8-slot PXI backplane cBX-3008L inside. To use
redundant power users can choose the following power backplane:
ƒ cBP-3061: Backplane for one 47-pin 3U CompactPCI modular with
one ATX DC output power supply unit.
ƒ
cBP-3062A: Backplane for one 47-pin 3U CompactPCI modular with
two ATX DC output power supply unit.
Please refer to the Appendix for detail specifications.
ADLINK provides customized design and manufacturing service. Please
contact an ADLINK sales representative for available backplane
configurations.
1.3.2 Power Supply Unit
PXIS-2650 series equips the APS-940XA, a 400 W modular power supply
unit that is complaint with PICMG 2.11, the ATX Power Supply
Specifications. Please refer to Appendix A.3 for detail specifications.
Various models that accommodate different AC or DC input are available.
