20 Installation
2.7 8254 for Timer Pacer Generation

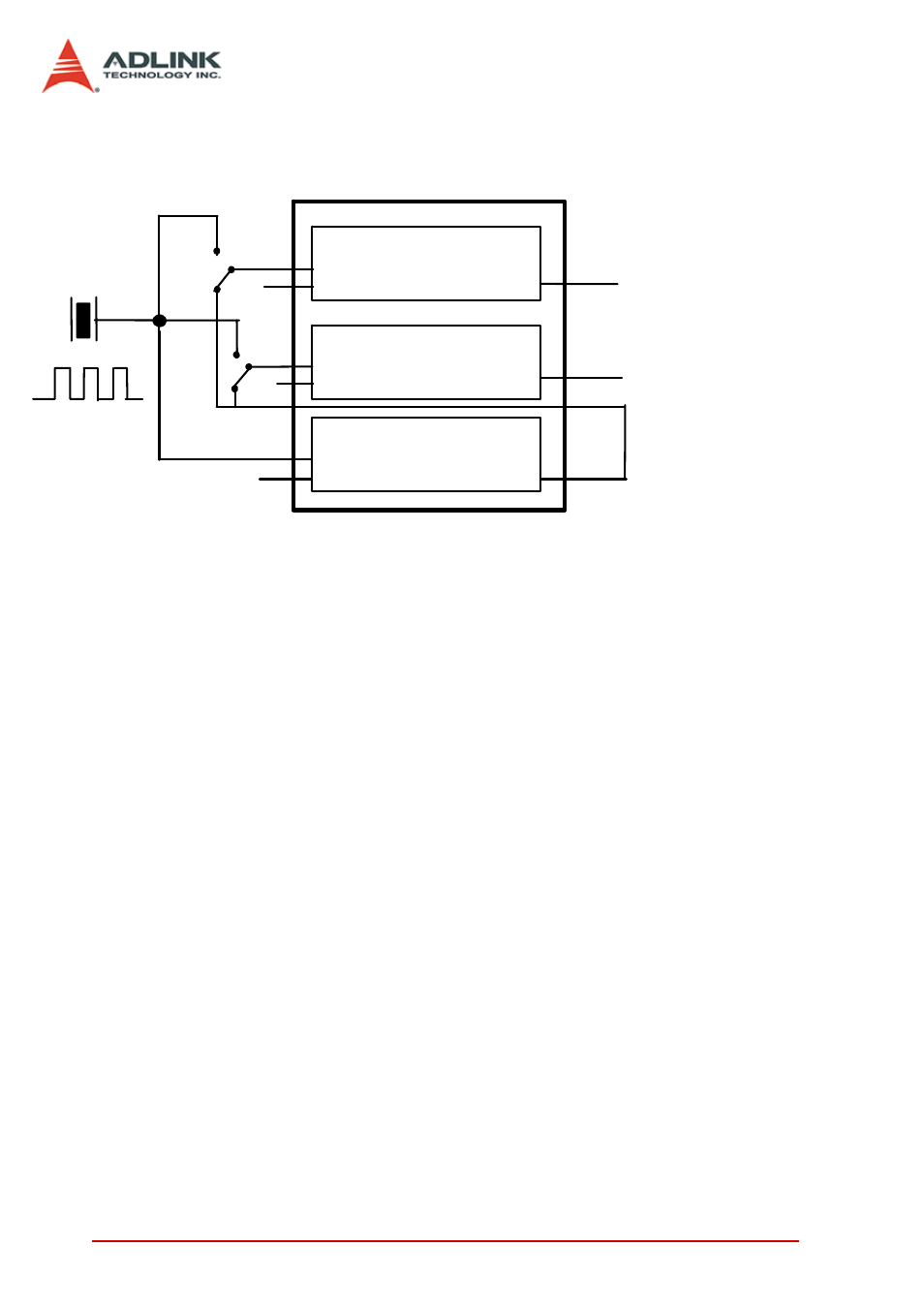

Figure 2-7: 8254 configuration
The internal timer/counter 8254 on the 7200 series is configured
as the above diagram (Figure 2.7). Users can use it to generate
the timer pacer for both digital input and digital output triggers.
The digital input timer pacer is from OUT0 (Timer 0), and the digi-
tal output timer pacer is from OUT1 (Timer 1). Besides, Timer 0
and Timer 2 can be cascaded together to generate more timer
pacer frequencies for digital input. Also, Timer 2 can be cascaded
with Timer 1 for digital output.
pacer rate = 4MHz / ( C0 * C2)
if Timer 0 & Timer 2 are cascaded
pacer rate = 4MHz / C0
if timer 0 & Timer 2 are not cascaded
The maximum pacer signal rate of input and output are 4MHz/2 =
2MHz. The minimum signal rate is 4MHz/65535/65535.
For example, to get a pacer rate of 2.5kHz, set C0 = 40 and C2 =
40. That is 2.5kHz = 4MHz / (40 x 40)
Timer 0
Timer 1
Timer 2
CLK0
GATE0
OUT0
CLK1
GATE1
CLK2
GATE2
OUT1
OUT2
8254 Timer/Counter
Digital Input Timer Pacer
Digital Output Timer Pacer
4MHz Clock
“H”
“H”
“H”
