38 • Operation Theorem
4.4 Timer/Counter Operation
The ACL-8216 has an interval timer/counter 8254 on board. It offers 3
independent 16-bit programmable down counters; counter 1 and counter 2
are cascaded together for A/D timer pacer trigger of A/D conversion. and

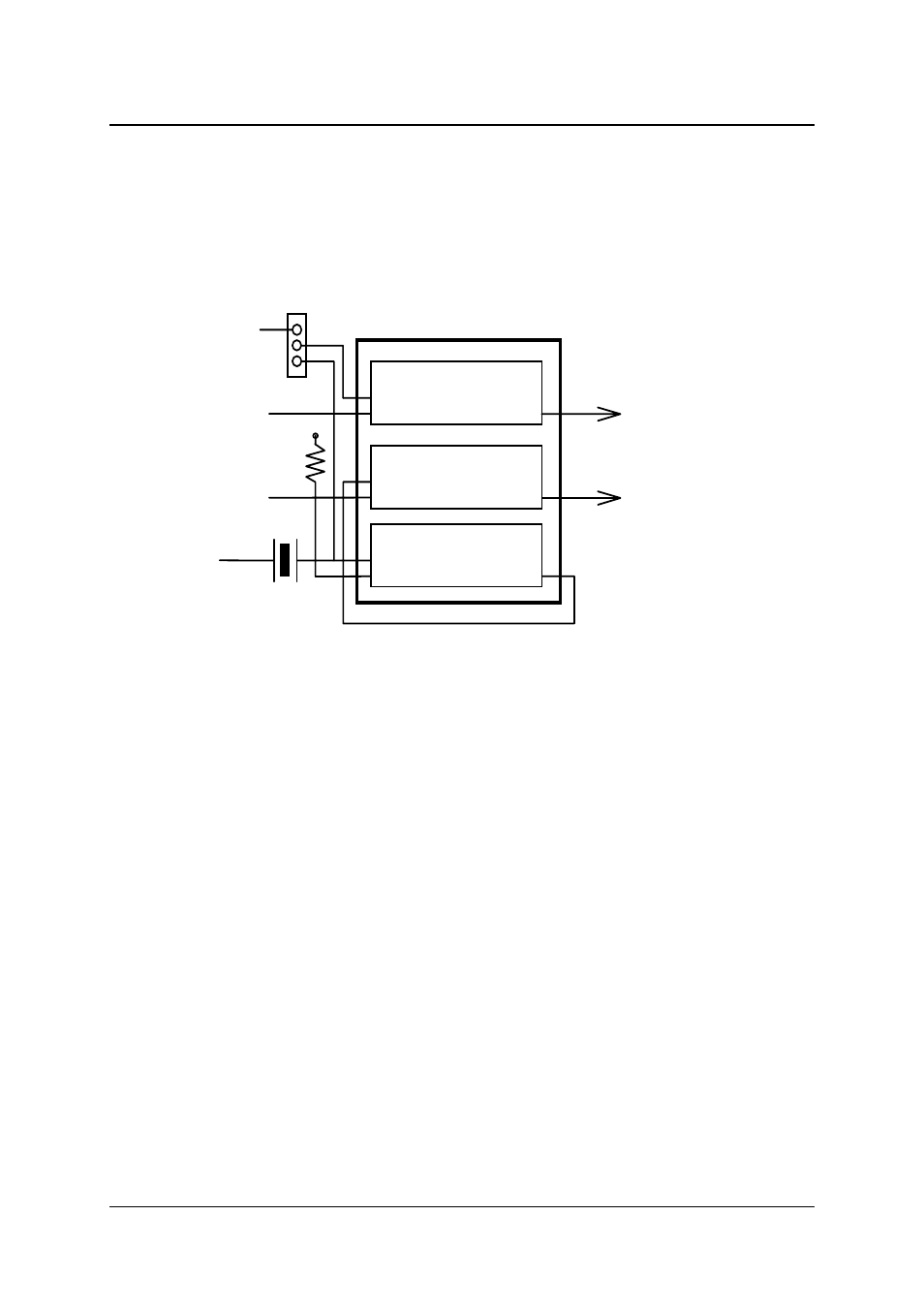

counter 0 is free for your applications. The following figure shows the 8254
timer/counter connection.
Counter 0
Counter 1
Counter 2
CLK0
GATE0 OUT0
CLK1
GATE1
CLK2
GATE2
OUT1
OUT2
2MHz
Oscillator
Vcc
A/D Trigge
CN3 Pin-34
CN3 Pin-37
CN3 Pin-33 CN3 Pin-1
CN3 Pin-35
INT
EXT
8254 Timer/Counter
The clock source of counter 0 can be internal or external, while the gate can
be controlled externally and the output is send to the connector CN3. As to
counter 0 and counter 1, the clock source is internally fixed, while the gate
can be controlled externally and the output is send to the connector CN3 too.
All the timer/ counter signals are TTL compatible.
The 8254 Timer / Counter Chip
The Intel (NEC) 8254 contains three independent, programmable, multi-
mode 16 bit counter/timers. The three independent 16 bit counters can be
clocked at rates from DC to 5 MHz. Each counter can be individually
programmed with 6 different operating modes by appropriately formatted
control words. The most commonly uses for the 8254 in microprocessor
based system are:
• Pprogrammable baud rate generator
• event
counter
• binary rate multiplier
• real-time
clock
• digital one-shot
• motor control
