Dolby E Multichannel Distribution System User Manual Introduction
1-4

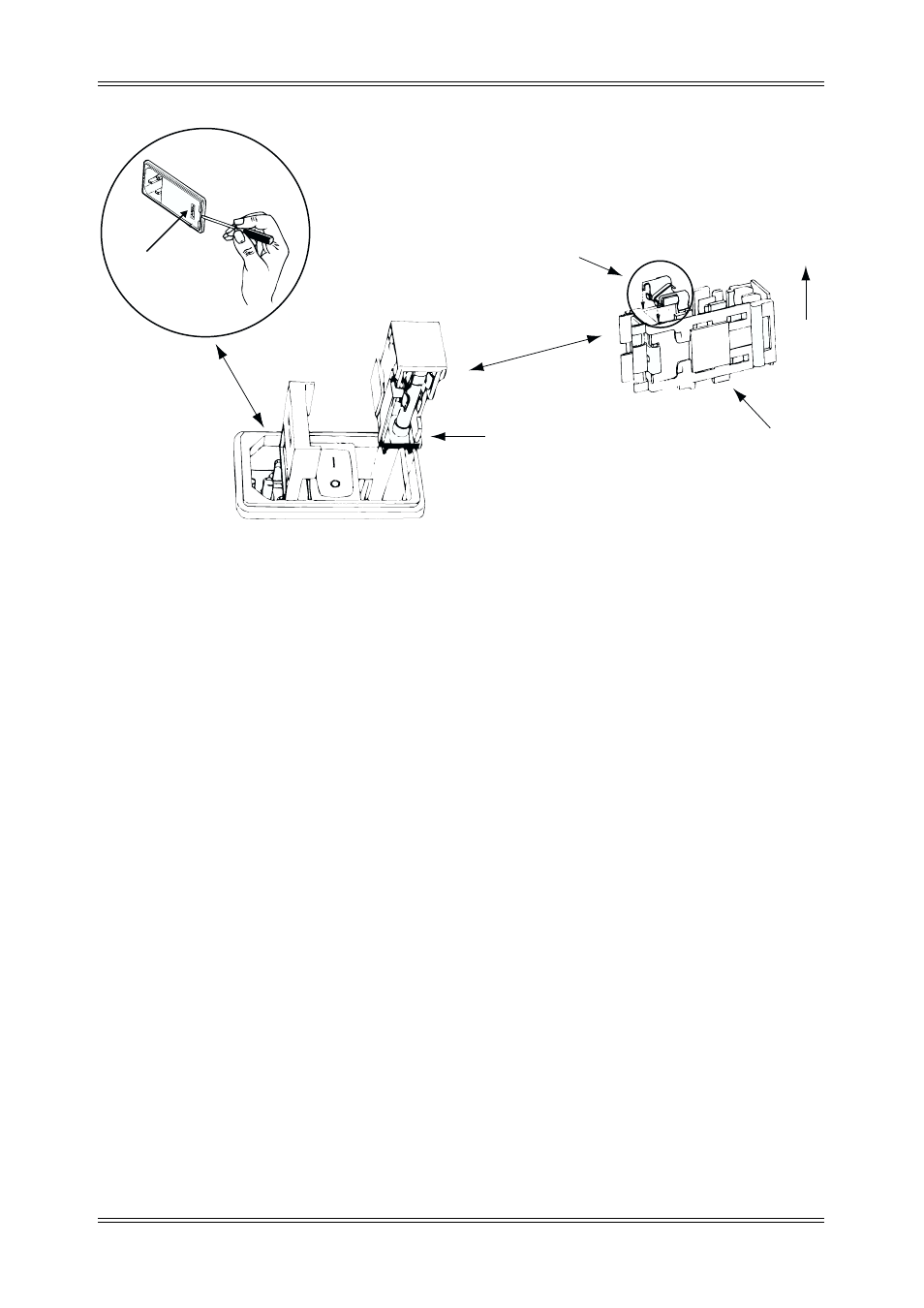

Figure 1-1 Checking the main fuse
Internal Fuse
The switching power supply contains a separate fuse. Most fault conditions should be
protected by the main fuse. The internal fuse rating is:
F 2A L - 2 Amp, 250 V, 20 mm, fast-acting, low-breaking capacity (for all operating
voltages)
Metal clip installed on
unused side of carrier
Open the door
Active fuse
Top
Install fuse
Fuse carrier
