Installation manual | visix ptz network camera, 4 pole mounting applications, Figure 2-‐10 wall mount – 3xLOGIC VISIX Camera User Manual
Page 18: Figure 2-‐11 pole adapter

Installation Manual
| VISIX PTZ Network Camera
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
18
3) Install dome to the mount. Please refer to Section 1.2 Installation and Cabling for installation details.
NOTE:
Follow the same instructions described above for the short-‐arm wall mounting. For outdoor applications, please
adopt
the
water-‐proof
measures.
The
short-‐arm
wall
mount
is
not
recommended
for
outdoor
applications.
1.4 POLE MOUNTING APPLICATIONS
This
mount
and
adapter
must
be
purchased
separately.
3xLOGIC
Part
Number:
VX-‐WM-‐PTZ
(Wall
Mount),
VX-‐POLE-‐PTZ
(Pole
Mount
Adapter)
Mounting Components
!
Wall Mount -‐ VX-‐WM-‐PTZ
Please use the wall mount with corner adapter or pole adapter according to different installation environments.

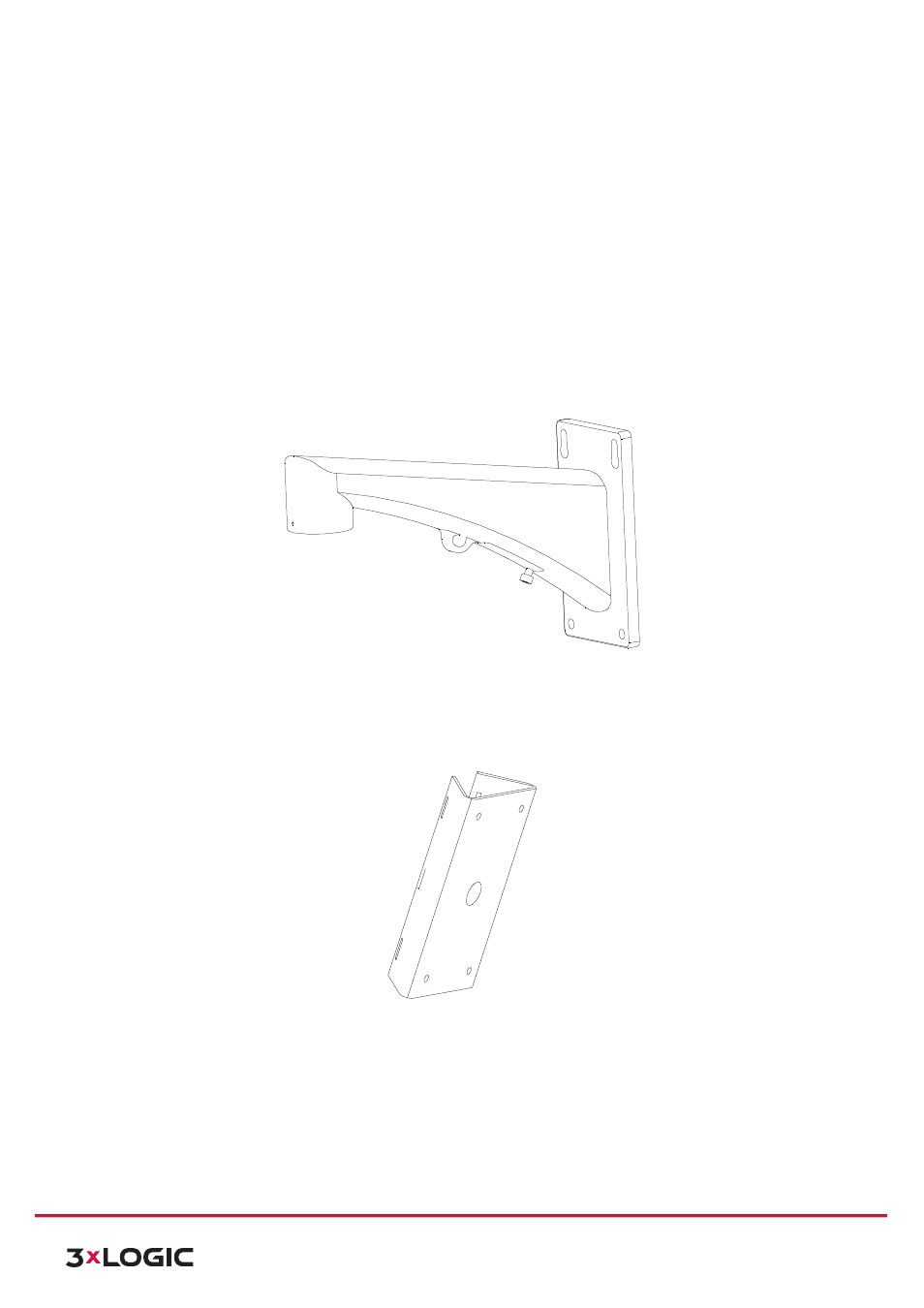

Figure 2-‐10 Wall Mount
!
Pole Adapter -‐ VX-‐POLE-‐PTZ
Please use the pole adapter with the wall mount in the pole mounting applications.
Figure 2-‐11 Pole Adapter
!
Pole Mounting Hoops
Please
use
the
with
the
pole
adapter.
The
following
dimensions
of
stainless
steel
hoop
are
optional:
φ59-‐82mm,
φ84-‐108mm,
φ103-‐127mm,
φ130-‐152mm,
φ155-‐178mm,
φ180-‐203mm,
φ194-‐216mm.
1)
NOTE:
The dimensions of the pole mounting hoop must match with the diameter of the pole adapter.
