3xLOGIC VISIX Camera - Manual (Page 15)

Installation Manual
|
VISIX
PTZ
Network
Camera
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC 15
4) Install
the
speed
dome
on
the
mount.
Please
refer
to
Section
1.2
Installation
and
Cabling
for
installation
details.
Note:
Follow
the
same
instructions
described
above
for
the
short-­‐arm
wall
mounting.
For
outdoor
applications,
please
adopt
the
water-­‐proof
measures.
The
short-­‐arm
wall
mount
is
not
recommended
for
outdoor
applications.
1.3 CORNER
MOUNTING
APPLICATIONS
This
mount
and
adapter
must
be
purchased
separately.
3xLOGIC
Product
Number:
VX-­‐WM-­‐PTZ
(Wall
Mount),
VX-­‐CM-­‐PTZ
(Corner
Mount
Adapter)
Mounting
Components
! Wall
Mount
-­‐
VX-­‐WM-­‐PTZ
You
can
use
the
wall
mount
with
corner
adapter
or
pole
adapter
according
to
different
installation
environments.

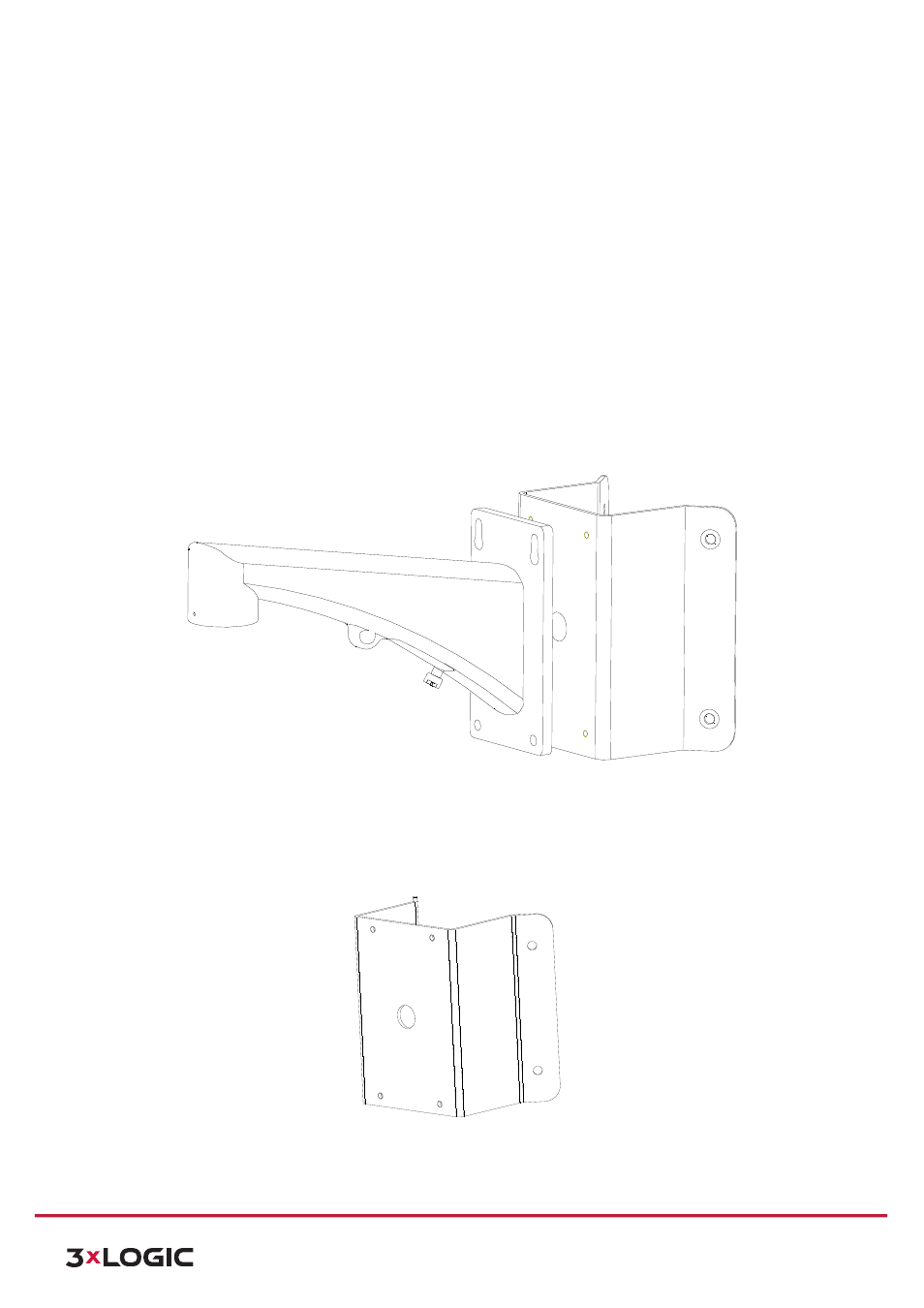

Figure
2-­‐5 Wall
Mount
! Corner
Adapter
-­‐
VX-­‐CM-­‐PTZ
Please
use
the
corner
adapter
with
the
wall
mount
in
the
corner
mounting
applications.
Figure
2-­‐6 Corner
Adapter
