Dimplex DFB6016 - Manual (Page 14)

14 www.dimplex.com
Maintenance
the firebox using a slotted
screwdriver (Figure 5).
Hold the glass in place while
2.
removing the retaining clip
from the upper center of the
firebox (Figure 6A, B).
Lift glass out and store in a
3.
safe place.
Lower Light Bulb Requirements
Quantity of four (4) clear
chandelier or candelabra bulbs
with an E-12 (small) socket base,
60 Watt rating.
To replace the bottom light
bulbs:
Lift up the front edge of the 1.
log until it clears the front
tabs. Pull out until the rear
tab clears the back ledge,
then lift out (Figure 7).
Examine the bulbs to 2.
determine which bulbs require
replacement.
Hold the socket while
3.
unscrewing the bulb.
Hold the socket while
4.
screwing in the new bulb.
replace the log ember bed by
5.
placing the back lip of the log
ember bed under the mirror
then push the front of the
log ember bed down into the
recess (Figure 7).

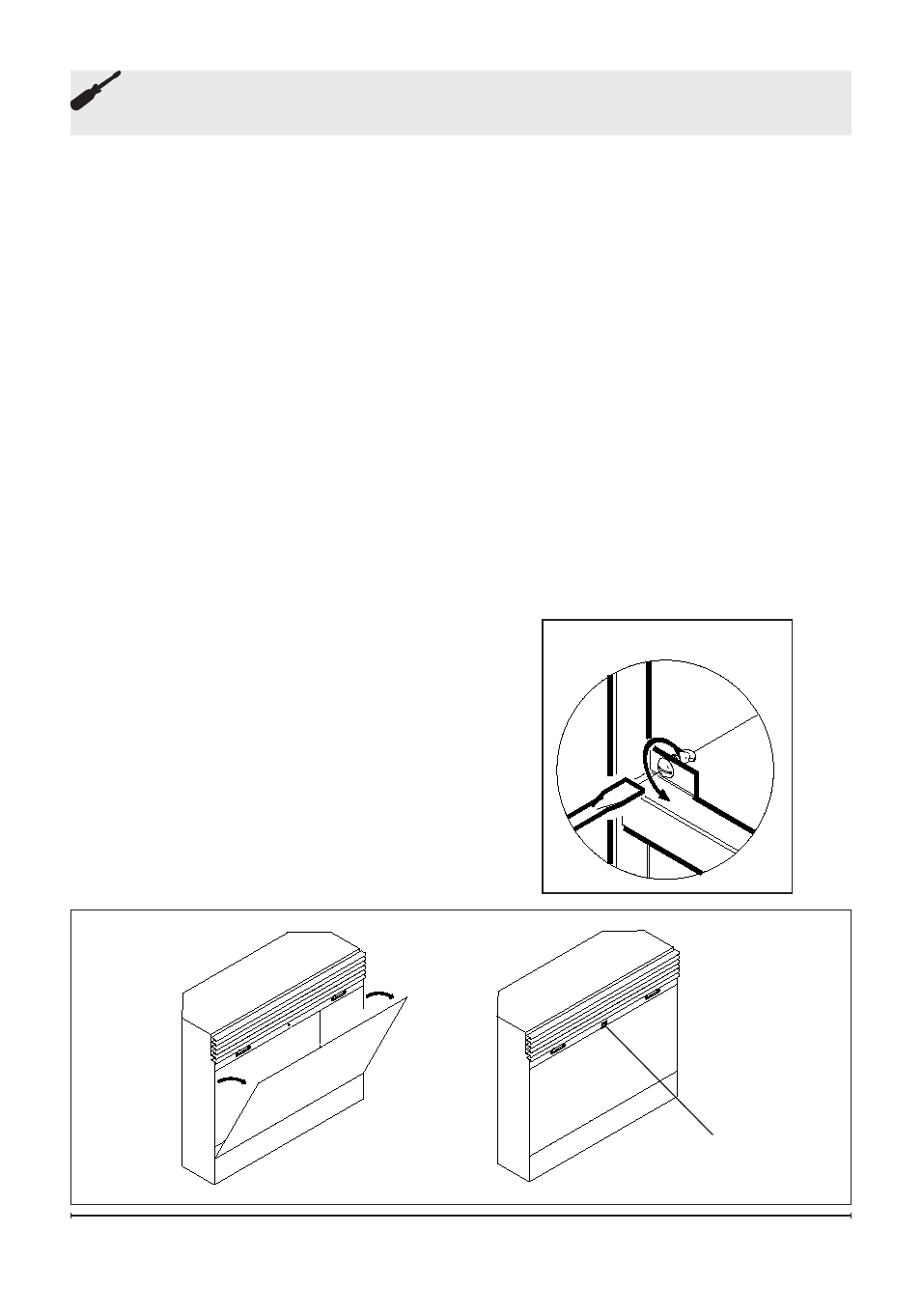

Figure 5
A
Figure 6
Removing
Glass
Holding
Glass
Retaining
Clip
B
