38 Basic Operations
www
.d
e
ll.c
o
m
| s
u
p
p
o
rt
.d
e
ll
.c
o
m
Displaying Version Information
The OSCAR
®
interface enables you to display the versions of the Remote Console Switch
and the SIP module firmware. For optimum performance, keep your firmware current. For
more information, see Appendix A: FLASH Upgrades.
To display version information:
1
Press . The Main dialog box will appear.
2
Click Commands - Display Versions . The Version dialog box displays. The top half of the
box lists the subsystem versions in the appliance.

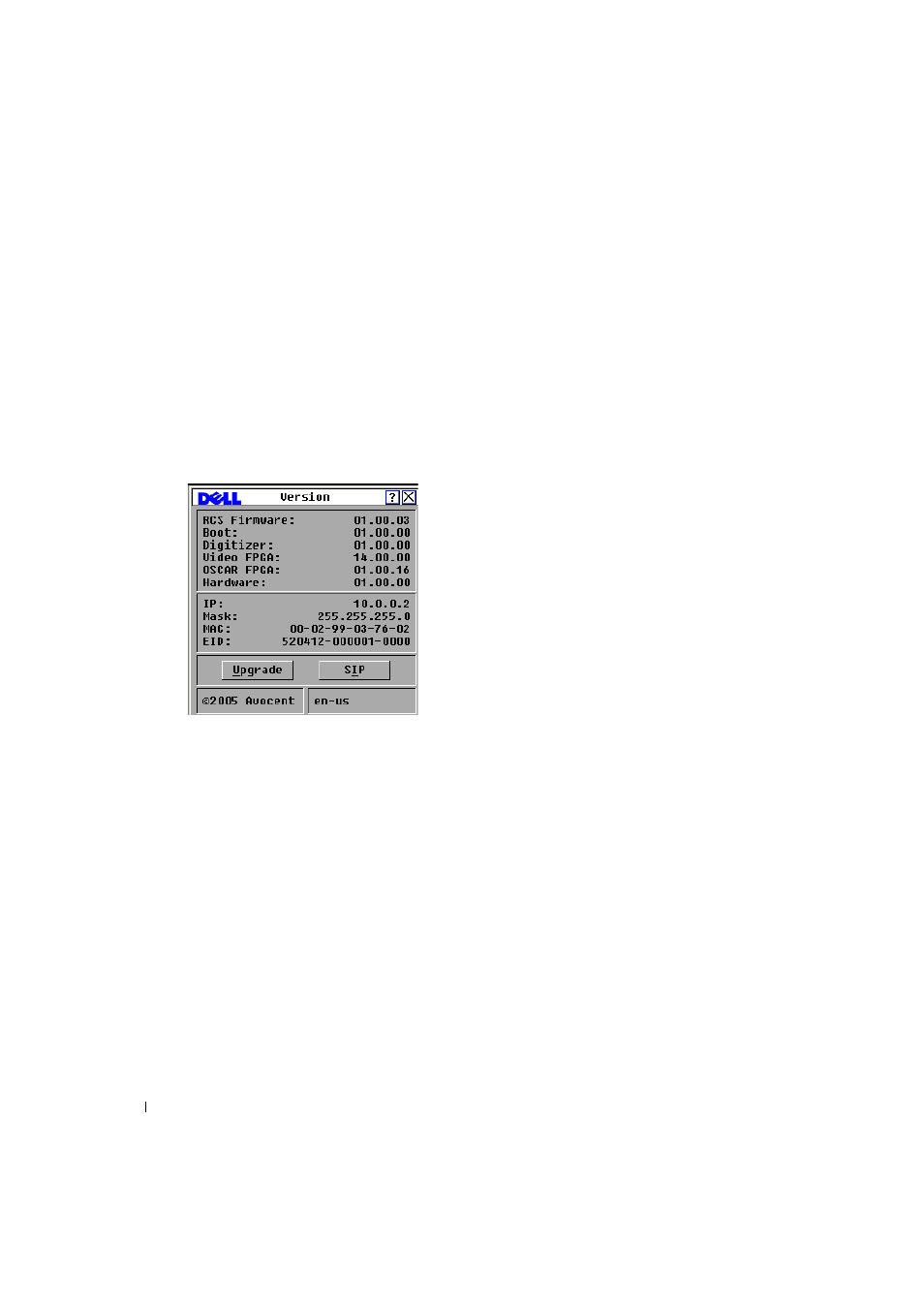

Figure 3-10. Version Dialog Box
3
Click the SIP button to view individual SIP module version information.The SIP Select
dialog box displays.
4
Select a SIP module to view and click the Version button. The SIP Version dialog box
displays. For more information on loading firmware, see Appendix A.
5
Click X to close the SIP Version dialog box.
Scanning Your System
In scan mode, the appliance automatically scans from port to port (device to device). You can
scan up to 16 devices, specifying which devices to scan, and the number of seconds that each
device displays. The scanning order is determined by placement of the device in the list. The list
is always shown in scanning order. You can, however, choose to display the device name or EID
number by pressing the appropriate button.
To add devices to the scan list:
1
If the OSCAR ® interface is not open, press . The Main dialog box appears.
2
Click Setup - Scan. The Scan dialog box displays.
