Basic Operations 39

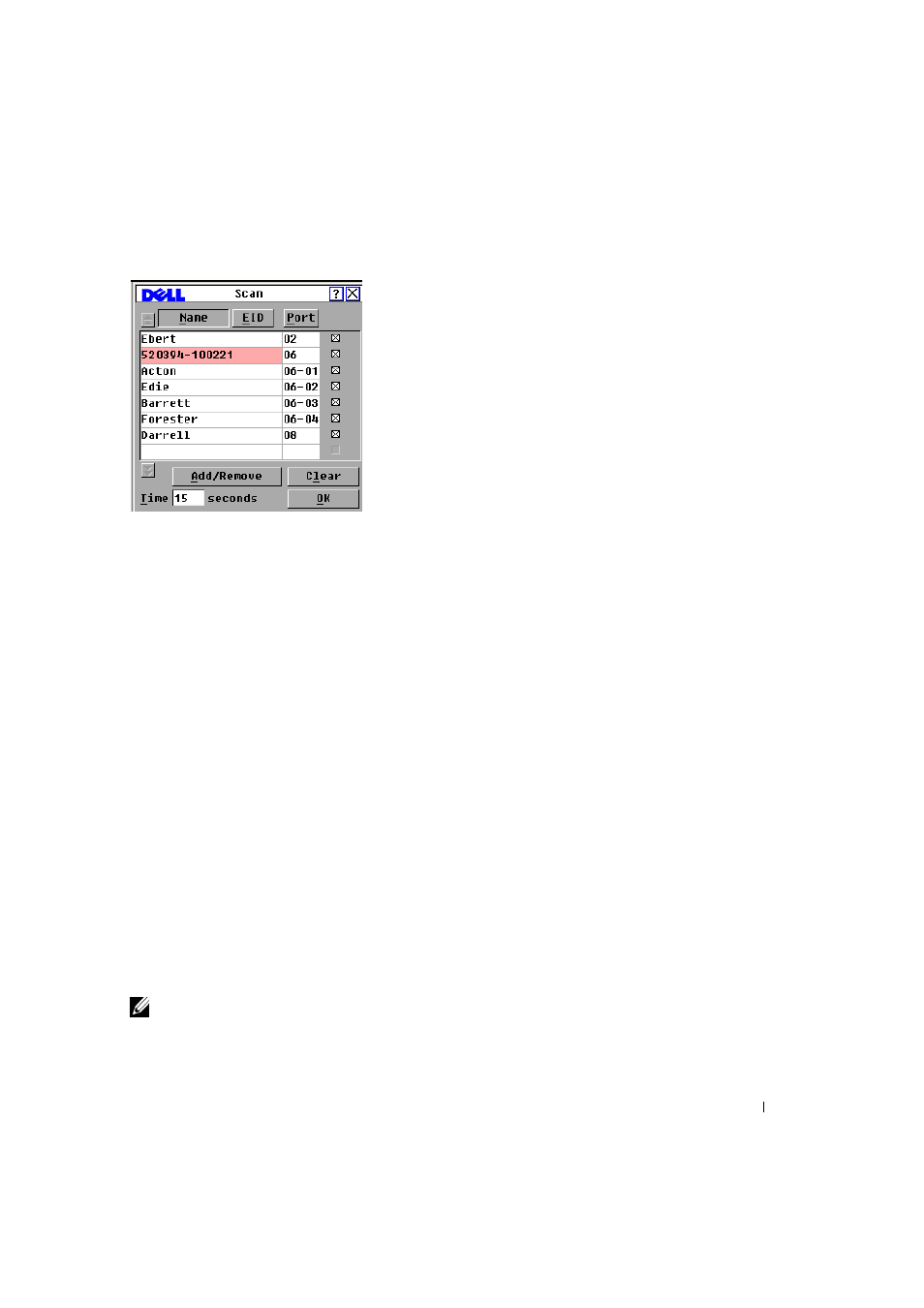

Figure 3-11. Scan Dialog Box
3
The dialog box contains a list of all devices attached to your appliance. Click the checkbox
next to the devices you wish to scan.
or
Double-click on a device name or port.
or
Press and the number of the device you wish to scan. You can select up to 16
devices from the entire list.
4
In the Time box, type the number of seconds (from 3 to 99) of desired time before the scan
moves to the next device in the sequence.
5
Click OK.
To remove a device from the scan list:
1
In the Scan dialog box, select the device to be removed.
or
Double-click on the device name or port.
or
Click the Clear button to remove all devices from the scan list.
2
Click OK.
To start the scan mode:
1
If the OSCAR ® interface is not open, press
.
The Main dialog box appears.
2
Click Commands. The Commands dialog box displays.
3
Select Scan Enable in the Commands dialog box.
4
Click X to close the Commands dialog box.
NOTE: Scanning begins when the Main dialog box or flag is displayed. Scanning is inhibited in any other
OSCAR ®
interface dialog box.
