CARE AND MAINTENANCE
Deck Removal - Zeeter HL 36”
1. Place cut height lever in lowest cut position.
2. Loosen nut on belt idler shock mount until belt can
be removed from electric clutch pulley on the

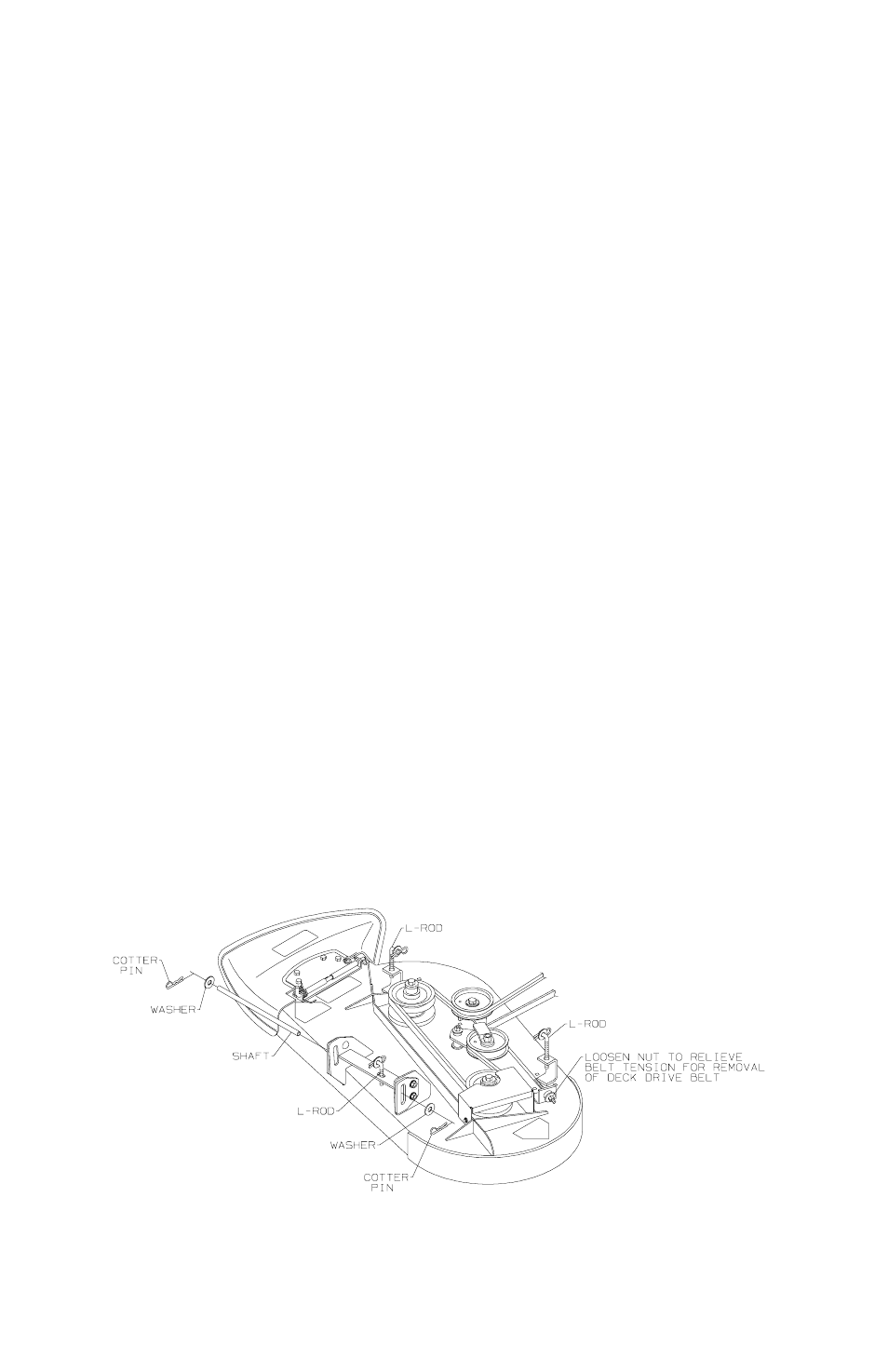

bottom of the engine. Refer to illustration.
3. Remove hair pin cotter and washer from one end
of deck support cross shaft. Note location of
remaining shim washers used between chassis
and mower deck pan arms. Slide shaft from
chassis and mower deck.
4. Remove hair pin cotter and washer from each
deck adjustment rod. Carefully push each link
toward the outside of the mower chassis. At this
point, deck will drop down.
5. Carefully raise and support front of chassis. Slide
mower deck to either side for removal. (Reverse
procedure to reinstall deck assembly.)
37
