BELTS:
Check belts every 50 hours. Replace any belts found to
be in poor condition.
BELT TENSION
Transmission Drive Belt (Zeeter HL 30”) - P/N 16198
Transmission Drive Belt (Zeeter HL 36” & 42”) - P/N 16197
No adjustment required.
Zeeter HL 30”
Engine to Mower Deck Belt - P/N 7725
No adjustment required.
Zeeter HL 36”
Engine to Mower Deck Belt - P/N 14136
Adjust idler shock mount per diagram.
34
CARE AND MAINTENANCE

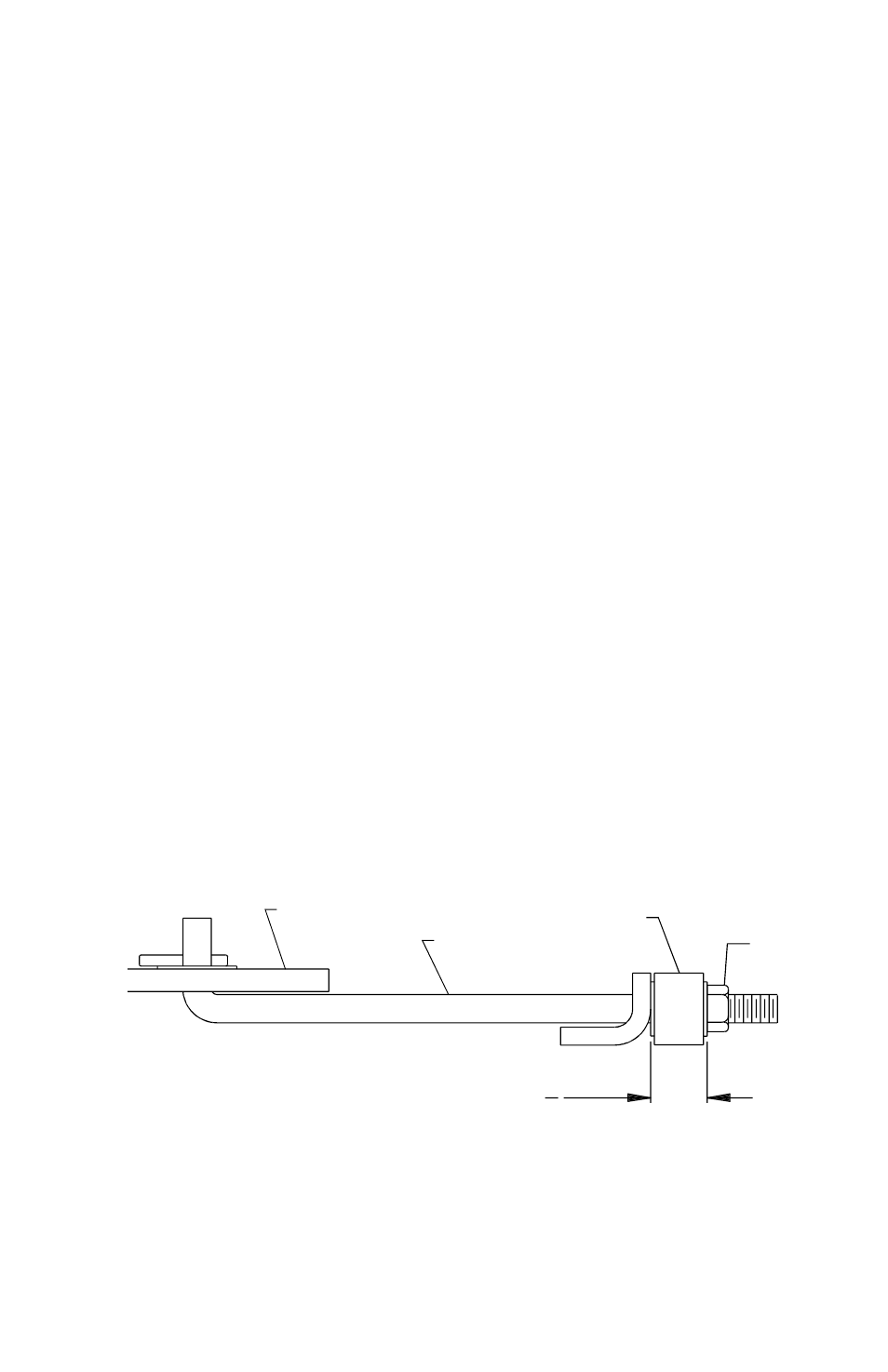

Idler Weldment
“L” Rod
Idler Shock Mount
Hex Nut
5
8
Tighten or
Loosen Hex
Nut to
achieve this
dimension
