Page 35
Zeeter HL 42”
Mower Deck Serpentine Belt
Electric Clutch - P/N 6109
Adjust idler shock mount per diagram.
Engine to Mower Deck Belt - P/N 5861
Adjust idler shock mount per diagram.
A pulsing movement of the belt idler may be
observed both during engagement of the electric blade
clutch and actual operation of the mower deck.
Note: Engagement of the electric blade clutch switch may
produce a sharp high pitched chirp or squeal as the belt
tension loading is absorbed by the idler system. This is
normal and not a sign of failure.
35
CARE AND MAINTENANCE
BELTS (continued):

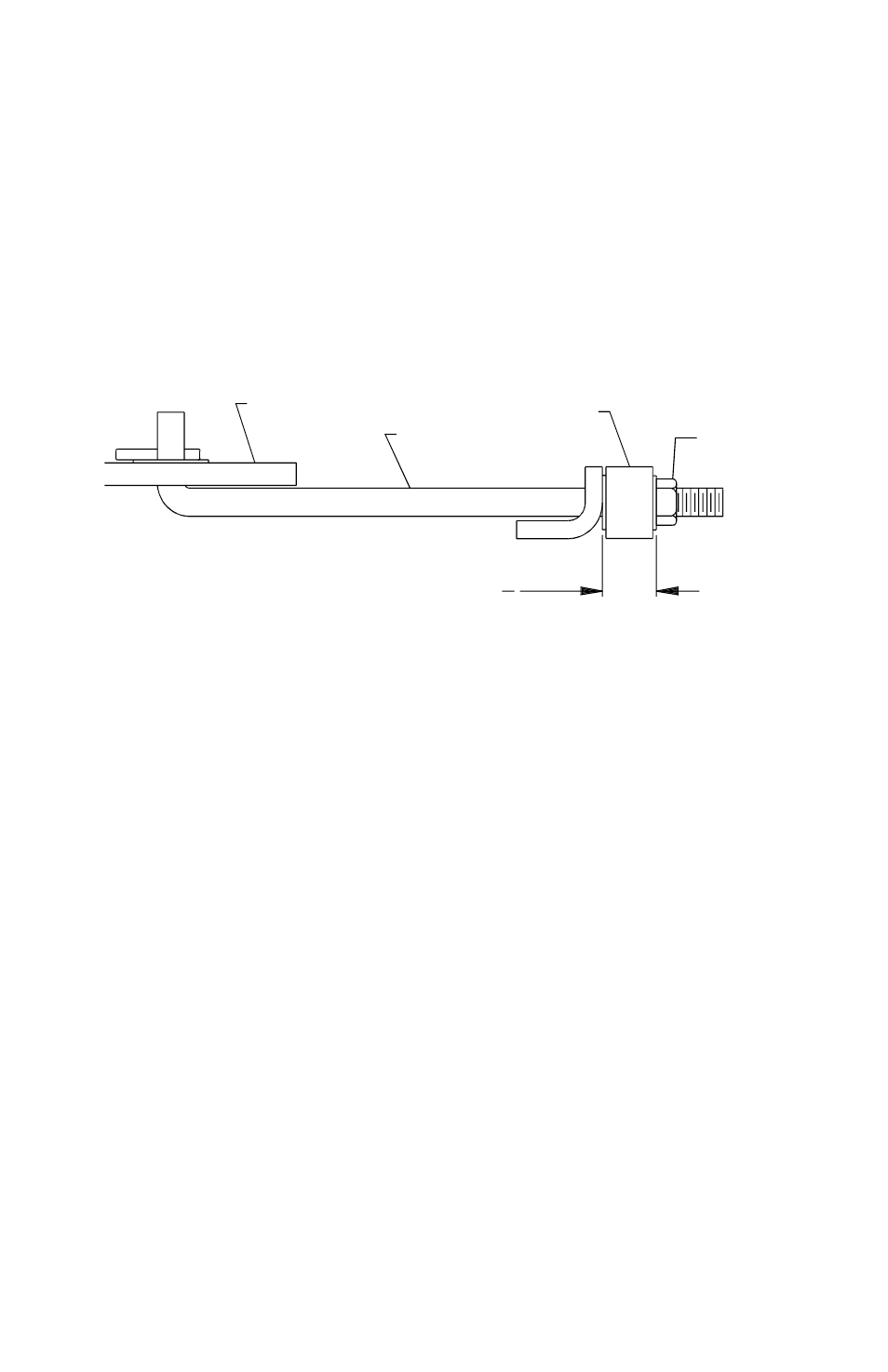

Idler Weldment
“L” Rod
Idler Shock
Hex Nut
3
4
Tighten or
Loosen
Hex Nut to
achieve
this
