CONTROL LEVERS
Note: For access to the seat, move control levers to neutral
position and swing them outward.

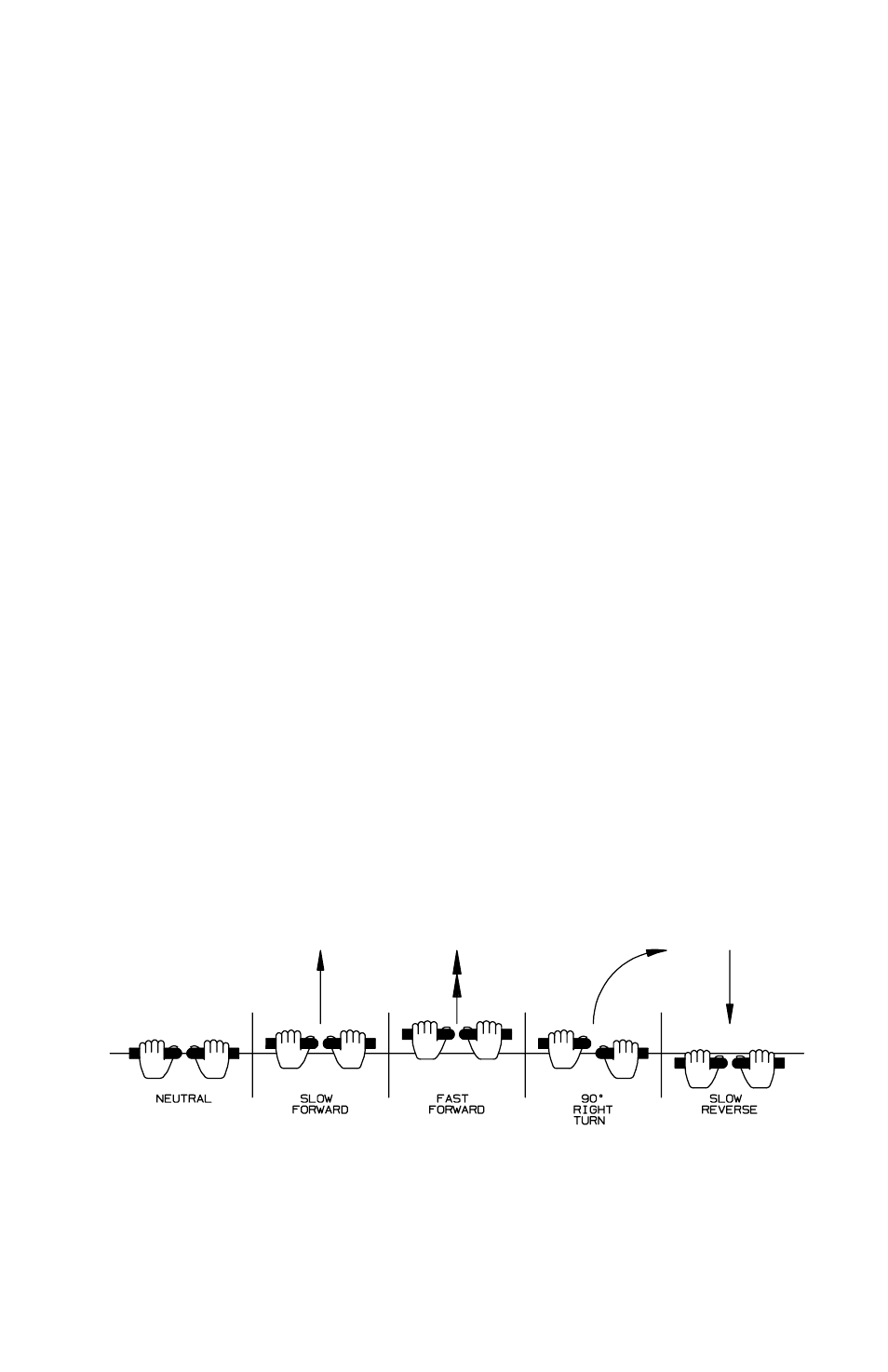

TO GO FORWARD
•
From neutral position, gently push control levers forward.
•
To increase speed, move levers further forward.
TO GO BACKWARDS
•
From neutral position, gently pull control levers toward
you.
TURNING
•
Turning is controlled by moving one control lever slightly
forward or rearward of the other.
•
To turn left, move left lever rearward of the right lever.
•
To turn right, move right lever rearward of the left lever.
•
To turn on mower’s own axis (zero turning radius), stop
and move one lever to reverse position and the other to
forward position.
BRAKING
•
To brake mower, move both levers in direction opposite
of travel.
Note: The pressure required to operate the mower is very light.
17
