CONNECTIONS

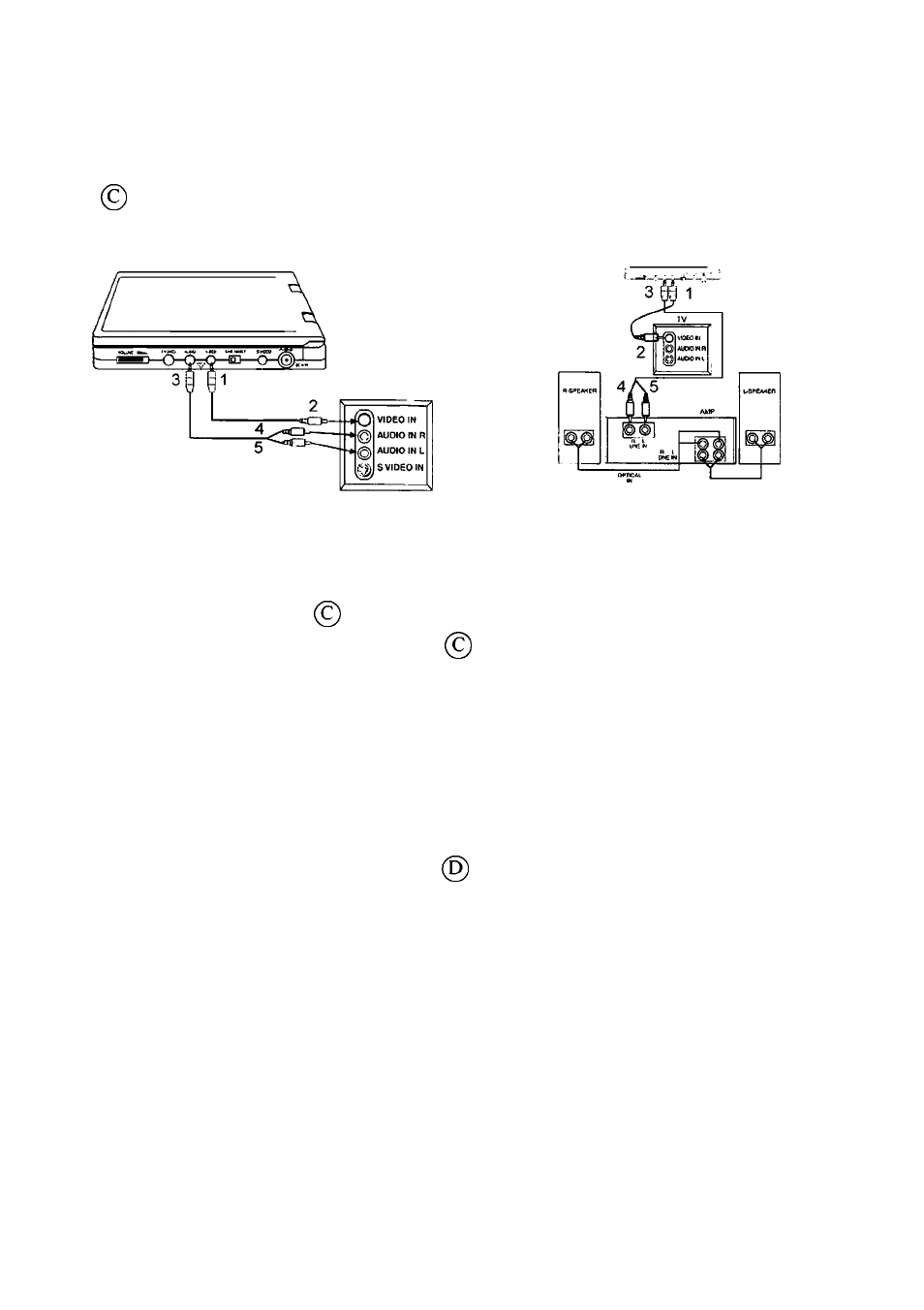

CONNECT TO TV —►
The AV cords are connected according to diagram
1. Mini - plug: connect to the VIDEO OUT jack of the unit.
2. Yellow plug: connect to the VIDEO IN Jack of the TV.
3. Mini - plug: connect to the AUDIO OUT Jack of the unit.
4. Red - plug: connect to the AUDIO IN R Jack of the TV.
5. White - plug: connect to the AUDIO IN L Jack of the TV.
CONNECT TO TV AND AMPLIFIER —► ®
The AV cords are connected according to diagram
1. Mini - plug: connect to the VIDEO OUT Jack of the unit.
2. Yellow plug: connect to the VIDEO IN Jack of the TV.
3. Mini - plug: connect to the AUDIO OUT Jack of the unit.
4. Red - plug: connect to the LINE IN R Jack of the amplifier.
5. White - plug: connect to the LINE IN L Jack of the amplifier.
