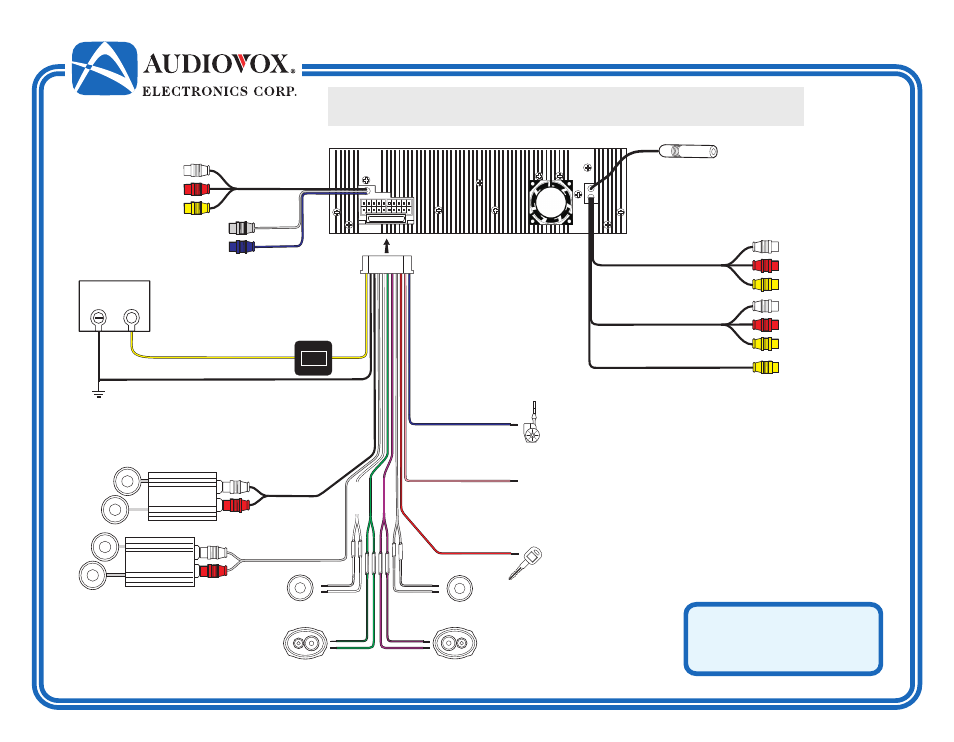

AV1510D Mobile Multimedia AM/FM/DVD Receiver Quick Start Guide
CHASSIS GROUND
Connect the red wire to the factory
Accessory or Ignition wire, which
receives power when the key is
turned on.
ACCESSORY
POWER ANTENNA/
REMOTE AMP TURN ON LEAD
Positive (+) 12VDC output when the head
unit is turned on. Connect the blue wire to
a motorized antenna or to an amplifier.
BATTERY
RCA OUTPUT
Connect to an
optional amplifier.
ANTENNA JACK
Connect to the factory or aftermarket
antenna lead. (Optional extensions or
adapters may be necessary depending
on the type of vehicle you have)
AMP
FILTER &
FUSE BOX
)
-
(
)
(+
Connect the black wire to the factory ground wire. If a
factory ground wire is not provided, locate a clean,
unpainted metal part of the dash and secure the ground
wire with a "ring" terminal and a sheet metal screw.
Connect the yellow wire to the battery
or 12 volt power source that is always
live. This wire MUST be connected
for the radio to work.
AMP
Need help?
For technical assistance, call
the Audiovox customer
support line at 1-800-645-4994.
SPEAKERS
AV1
SUBWOOFER RCA OUTPUT
CENTER RCA OUTPUT
DEDICATED DVD
OUTPUT
Connect optional rear
screen and left/right
audio for headphones.
PARKING
Connect the pink wire to the negative
parking brake wire. This MUST be
connected in accordance with
federal, state, and local laws.
Left Front Right Front
Left Rear Right Rear
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring
instructions carefully, or have the installation handled by an experienced technician.
AV2
VIDEO OUT
