ENGLISH
NOTE
• Do not plug in the power cord until all connections have been
completed.
• When making connections, also refer to the owner’s manual of the
other components.

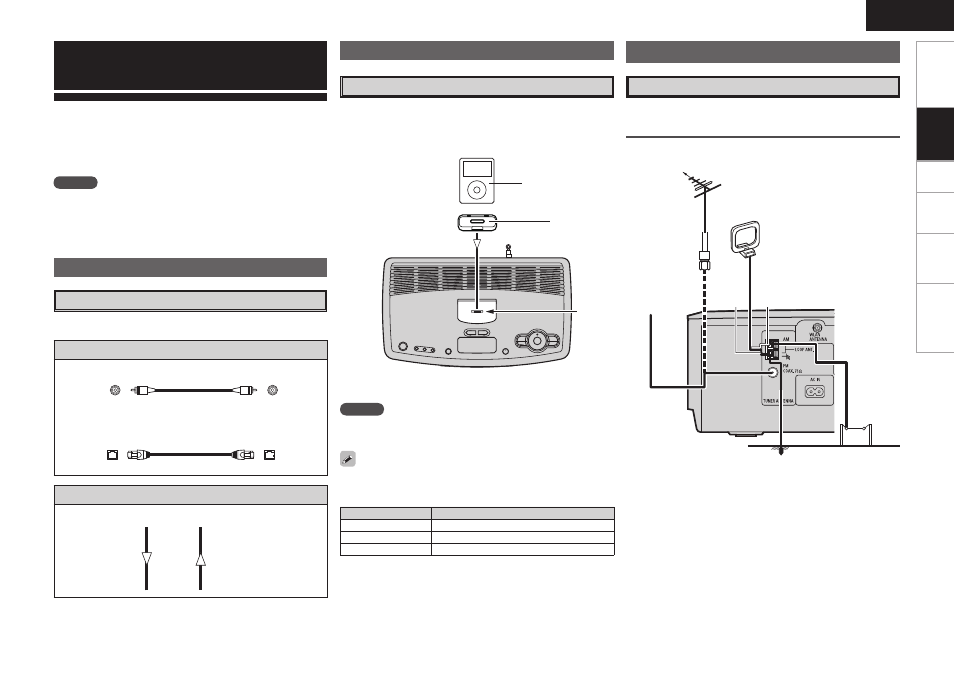

Connections
Connections for all compatible audio signal formats are described
in these operating instructions. Please select the types of
connections suited for the equipment you are connecting.
With some types of connections, certain settings must be made
on the S-32. For details, refer to the instructions for the respective
connection items below.
Select the cables according to the equipment being connected.
Preparations
Cables Used for Connections
Audio cables
Analog connections (Subwoofer)
(Black)
Pin - plug cable
Network connections (Wired LAN)
LAN cable
Signal direction
Audio signal:
Output
Input
Input
Output
NOTE
Note that leaning the iPod forward or backward when connecting it to or
disconnecting it from the dock for iPod may damage the connector.
Keep the dock for iPod’s lid closed when your iPod is not connected to
prevent any foreign objects from getting inside.
iPod
Adapter
Open the lid and mount the adapter suited for your iPod onto the S-
32’s adapter insertion slot.
Connector
Connecting the Playback Components
iPod®
Connections to Other Devices
An FM antenna cable plug can be connected directly.
AM/FM
Direction of broadcasting station
Antenna Terminals
FM antenna
AM loop antenna
(Supplied)
Black White
75 Ω/ ohms
Coaxial cable
FM indoor
antenna
(Supplied)
Ground
AM outdoor antenna
Stamped indication iPod connectable to the S-32
mini iPod mini
Photo 20, 30GB iPod Photo 30GB/iPod 20GB with color display
Photo 60GB iPod Photo 60GB/iPod 40GB with color display
Connections
