Q8 AUX IN jack ················································ (19)
Q 9 Headphones jack ( ) ································ (13)
W0 Remote control sensor ································(2)
W1 Display
For buttons not explained here, see the page indicated in parentheses ( ).
Part Names and Functions

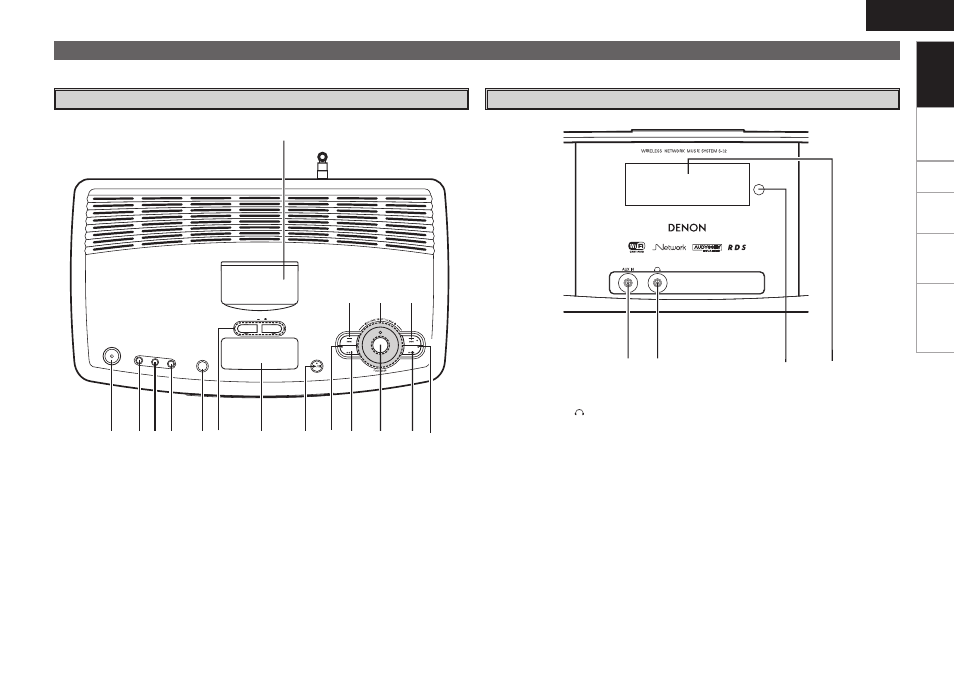

Top Panel
q Power operation button
(FUNCTION ON / OFF) ····························· (12)
w ALARM SETTING button·························· (20)
e SLEEP button ············································ (21)
r DIMMER button ········································ (13)
t DISPLAY button ········································ (13)
y ALARM1, 2 ON / OFF buttons ················· (20)
u MUTE / SNOOZE button ···················· (12, 20)
i PLAY / PAUSE button (1/3) ···················· (16)
o SOURCE indicator ···································· (12)
Q0 SOURCE button ·········································· (8)
Front Panel
Q1 ENTER button ·············································(8)
Q2 RETURN button ···········································(8)
Q 3 RETURN indicator······································ (12)
Q4 Forward-skip /
Fast-forwarding button (9) ·················· (15)
TUNING + button······································· (17)
Q5 Multi jog dial /
Master volume control ·························· (8, 12)
Q 6 Reverse-skip /
Fast-reversing button (8) ····················· (15)
TUNING – button ······································· (17)
Q7 Dock for iPod ················································(5)
Get
ting Star
ted
RETURN
FUNCTION
ON / OFF
ALARM
SETTING SLEEP DIMMER
iPod
PLAY/PAUSE
SOURCE MUTE / SNOOZE
ALARM ON OFF
ALARM 1 ALARM 2
DISPLAY
q wer t u o Q0
Q6
Q2
Q4
Q3
Q7
Q1 i y
Q5
Q8 Q9 W0 W1
