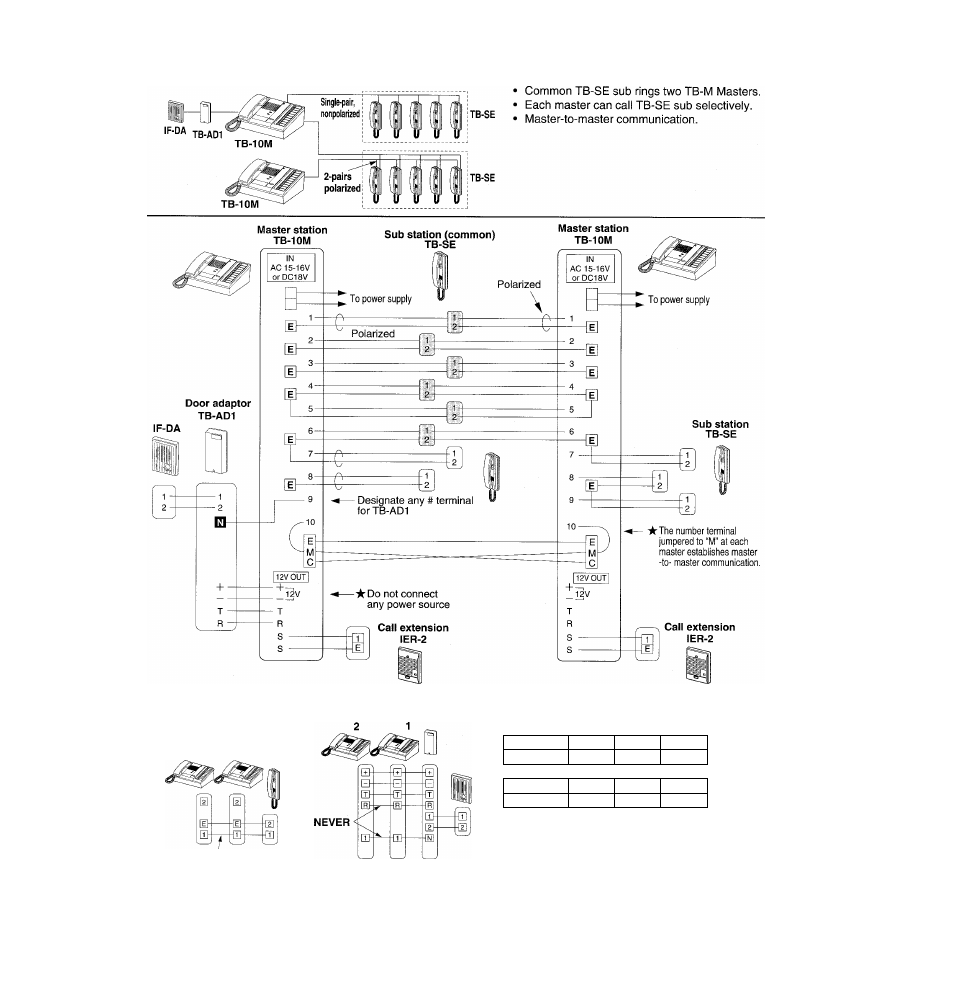

TB-M dual-master system
★ IMPORTANT
Do not use the following wiring methods. They will cause the system
to malfunction:
NEVER
Do not parallel sub station wires
between TB-M master stations.
Wiring from TB-SE must be
homerun to EACH master station.
Door adaptor TB-AD1 (10) can only
be wired to one master. Doors
cannot call both master stations.
8
-
I
Wiring distance:
Between TB-M masters
Diameter
0.65mm
0.8mm
1.0mm
Distance
200m
300m
480m
AWG
22AWG
20AWG
18AWG
Distance
650'
1.000'
1,570'
This manual is related to the following products:
