NAMES & FEATURES
■ Names & functions
TB-10M and TB-20M master station is streamline and modernly designed. The master console may
be placed on desk or wall-mounted.

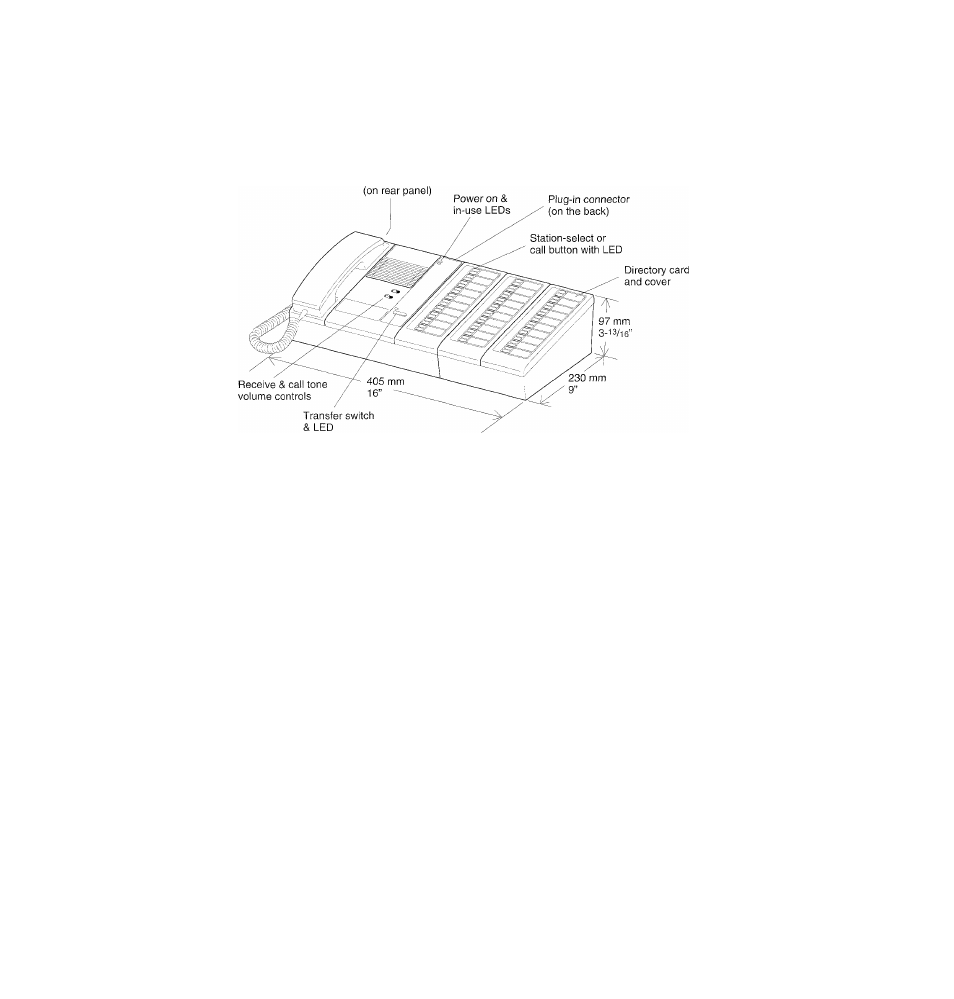

Power on switch
TB-10M with
TB-20G add-on
selector
The selector switch bank is aligned vertically, with each station having its own directory. Station
numbers count top to bottom 1 to 10 on first switch bank, and 11 to 20 on the second switch bank of
TB-20M. The supplied directory card and cover can be attached from the left.
Features Transfer switch and LED in the center of front panel. Single transfer button automatically
connects the master with the next TB-SE sub that has called (max. 2)
TB-20G or TB-40G add-on selector plugs into TB-M back panel, and can be placed on either side of
master.
Features
TB-20G or TB-40G add-on selector connects additional TB-SE subs, allowing system
expansion.
One or dual-master configuration.
TB-AD1 adaptor connects TB-M with an lE/IF Series audio door station (up to 3).
For 4 to max. 10 doors, use a TB-AD10 adaptor. Or alternatively, TB-ADM10 adaptor
for max. 10 PanTilt door stations. Allows TB-M to communicate and monitor each MY
door station audio-visually either selectively or all in succession. Refer to the TB-
ADM10 Manual.
Call extension IER-2 allows incoming call tone to be heard at a remote location.
Master station can call sub by tone, and optional external buzzer.
