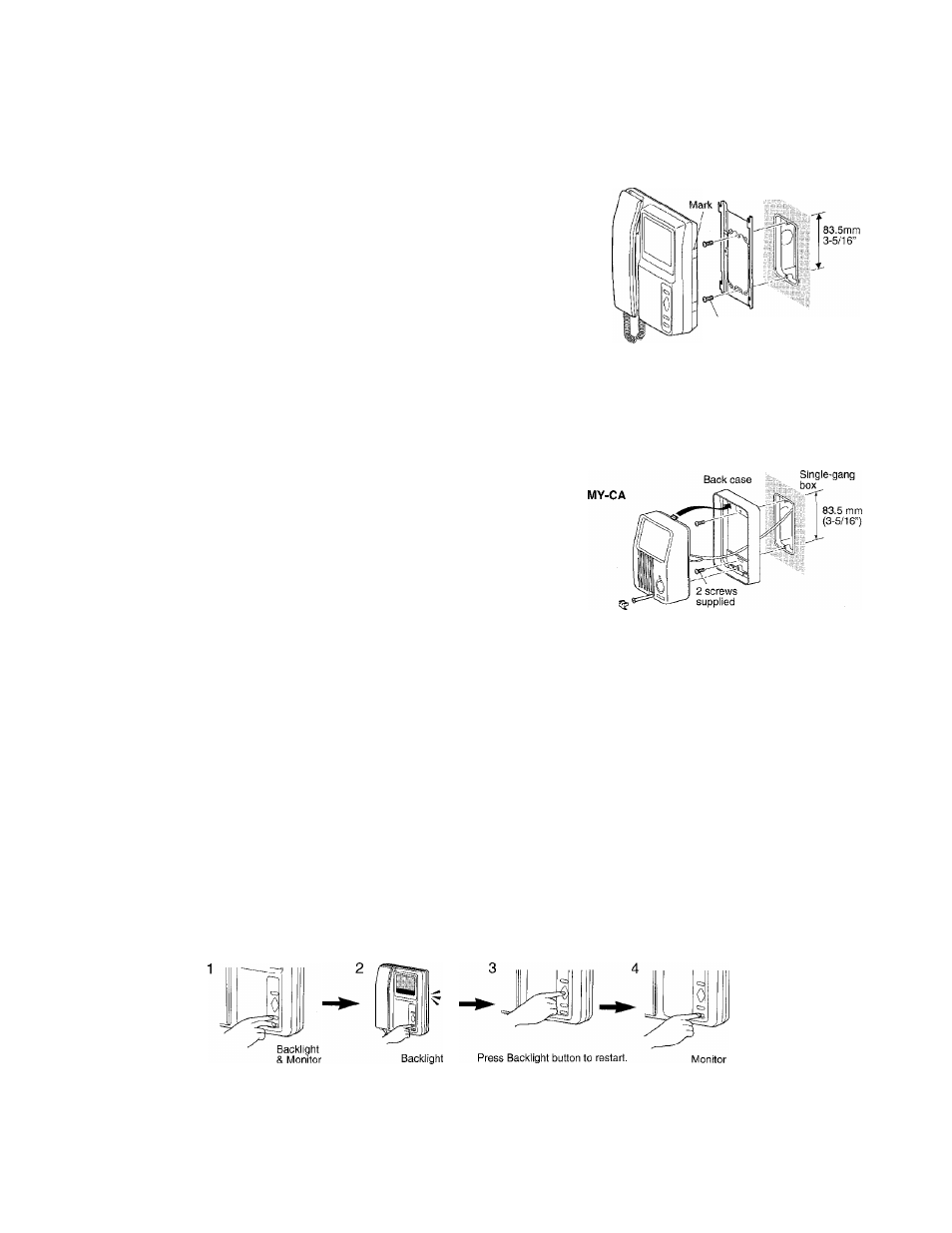

WALL-MOUNTING
MY-1CD video-monitor is supplied with wall-mounting bracket, which is
attached on back of unit.
Wall-mounting
Attach mounting bracket to single gang box or to wall surface.
Terminate wire on A1, A2 terminals. Then, connect DC 18V wires from
power supply.
Insert the prongs of the bracket, into the holes of the MY-1CD, aligning
at the marks. Pull the unit downward until it locks.
Placing on desk-top
The low-height base support is supplied with screws. Install the cable
not too tensely and in non-tripping manner.
WIY-1CD
Mounting
bracket
Single-gang
box
Attach with 2 screw
supplied.
Power supply
Locate the power supply within a convenient distance to an AC outlet.
Mounting bracket and screws are supplied.
PanTilt door stations
Any PanTilt door station may be used with MY-1CD one-room monitor.
MY-DC or MY-DG semi-flush mounts on 3-gang box (92mm, 3-5/8”
pitch). MY-CA surface-mounts on single-gang box (83.5mm, 3-5/16”
pitch).
MY-CA Camera Angle Setting
MY-CA camera returns to center position at start of next operation.
The camera angle can be reprogrammed to a direction matching to the
site.
Turn on video monitor. About after 10 seconds, press both Monitor &
Backlight buttons.
Releasing from Monitor button, keep depressing Backlight button.
Approx. 5 seconds after, the bottom 1/4 of the screen starts flashing.
Then, release Backlight button.
Operate Pan-and-Tilt control pad to move the camera to desired
position.
Lastly, press Monitor button.
(on MY-1CD)
