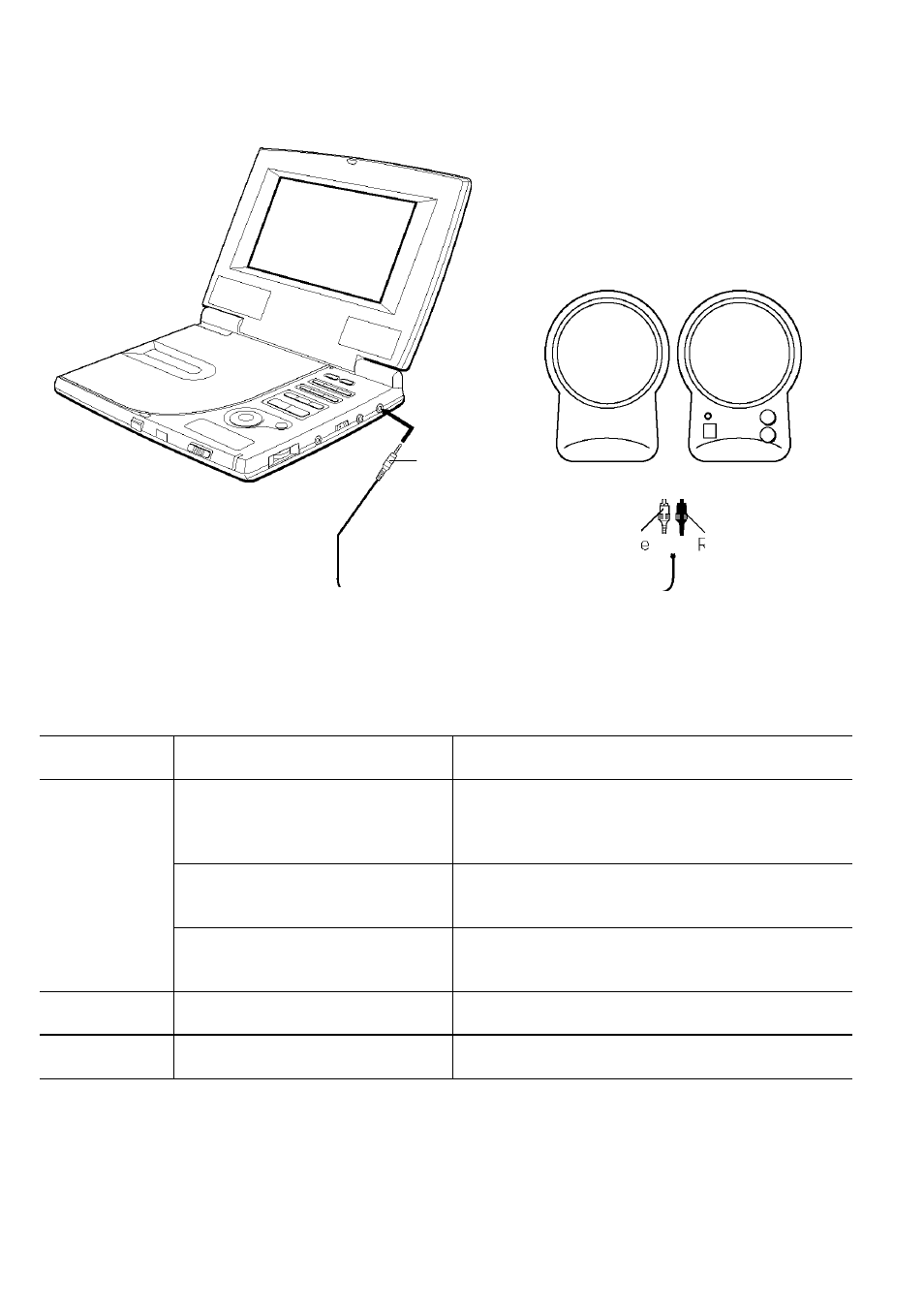

Connecting to an active speaker system
To AUDIO/OPT
OUT jack
— Black
ft
To audio inputjacks
Whit^ \/ Red
Audio connecting cable (supplied)
Output sound from the optical output terminals of this unit
Playing disc
Audio recording system
Output audio signals
DVD
Dolby digital (AC-3)
• Bit stream of Dolby digital (AC-3) (2ch-5.1ch)
• PCM (48 kHz/16 bit) (2ch)*1
Select it in the initial setting “Digital output".
Linear PCM 48 kHz/96 kHz
16/20/24 bit
Linear PCM (48 kHz/16 bit) (2ch)*2
DTS
• Bit stream of DTS (1ch-5.1ch)
• No output PCM signal
Video CD
MPEG 1
PCM (44.1 kHz)
*
1
Audio CD
Linear PCM
Linear PCM (44.1 kHz)
*2 When a 96 kHz-24 bit disc is played, the audio signals are output in 48 kHz-16 bit.
*1 This changes condensed audio signals to PCM and outputs them.
CONTINUE
