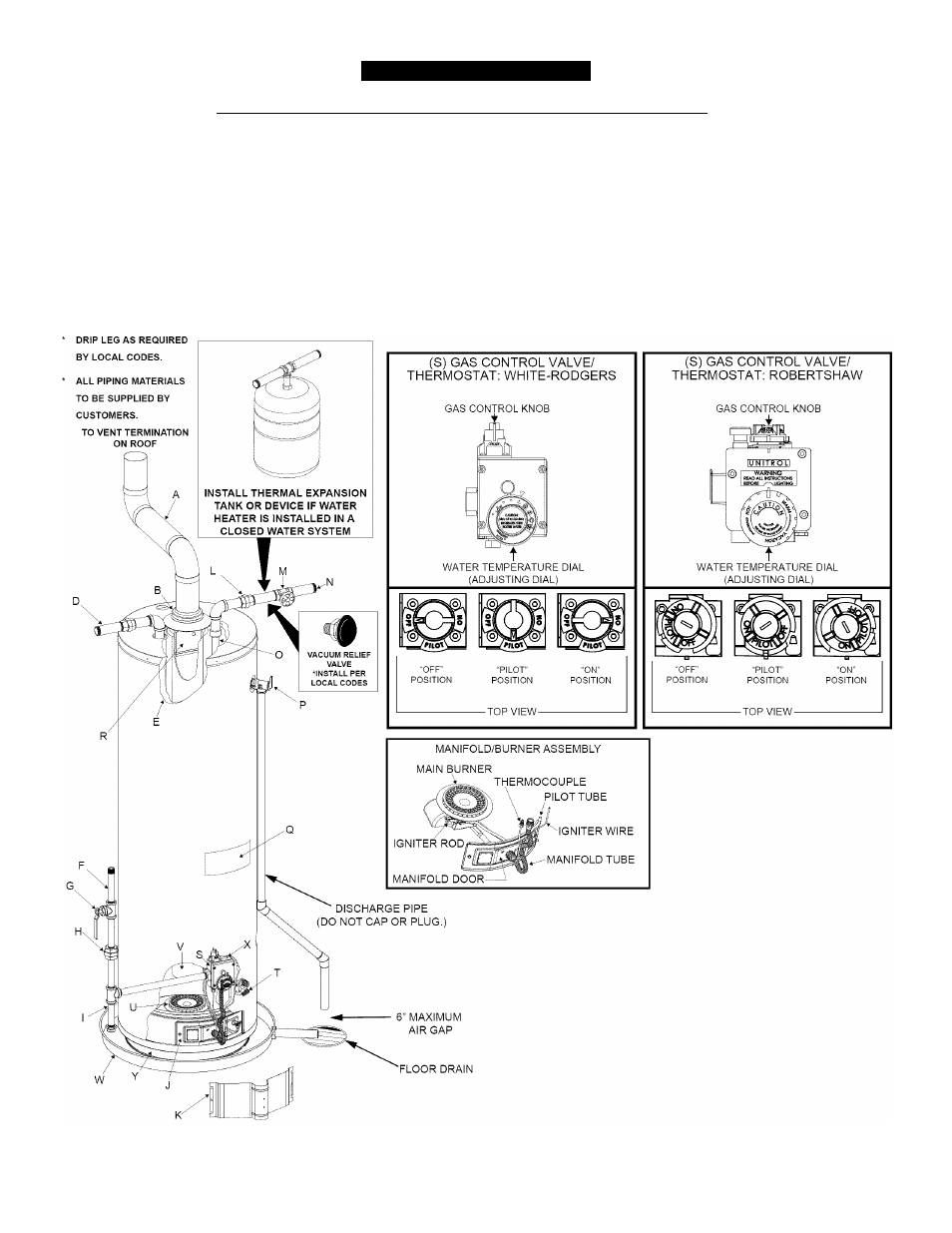

TYPICAL INSTALLATION
GET TO KNOW YOUR WATER HEATER - GAS MODELS
A
Vent Pipe
J
Inner Door
S
Thermostat
B
Draft hood
K
Outer door
T
Drain Valve
c
Anode (Not Shown)
L
Union
u
Pilot and Main Burner
D
Hot Water Outlet
M
Inlet Water Shut-off Valve
V
Flue
E
Insulation
N
Cold Water Inlet
w
Drain Pan
F
Gas Supply Piping
O
Inlet Dip Tube
X
Piezo Igniter
G
Manual Gas Shut-off Valve
P
Temperature & Pressure Relief Valve
Y
Base Filter
H
Ground Joint Union
Q
Rating Plate
1
Drip Leg (Sediment Trap)
R
Flue Baffle
INSTALL IN ACCORDANCE
WITH LOCAL CODES.
