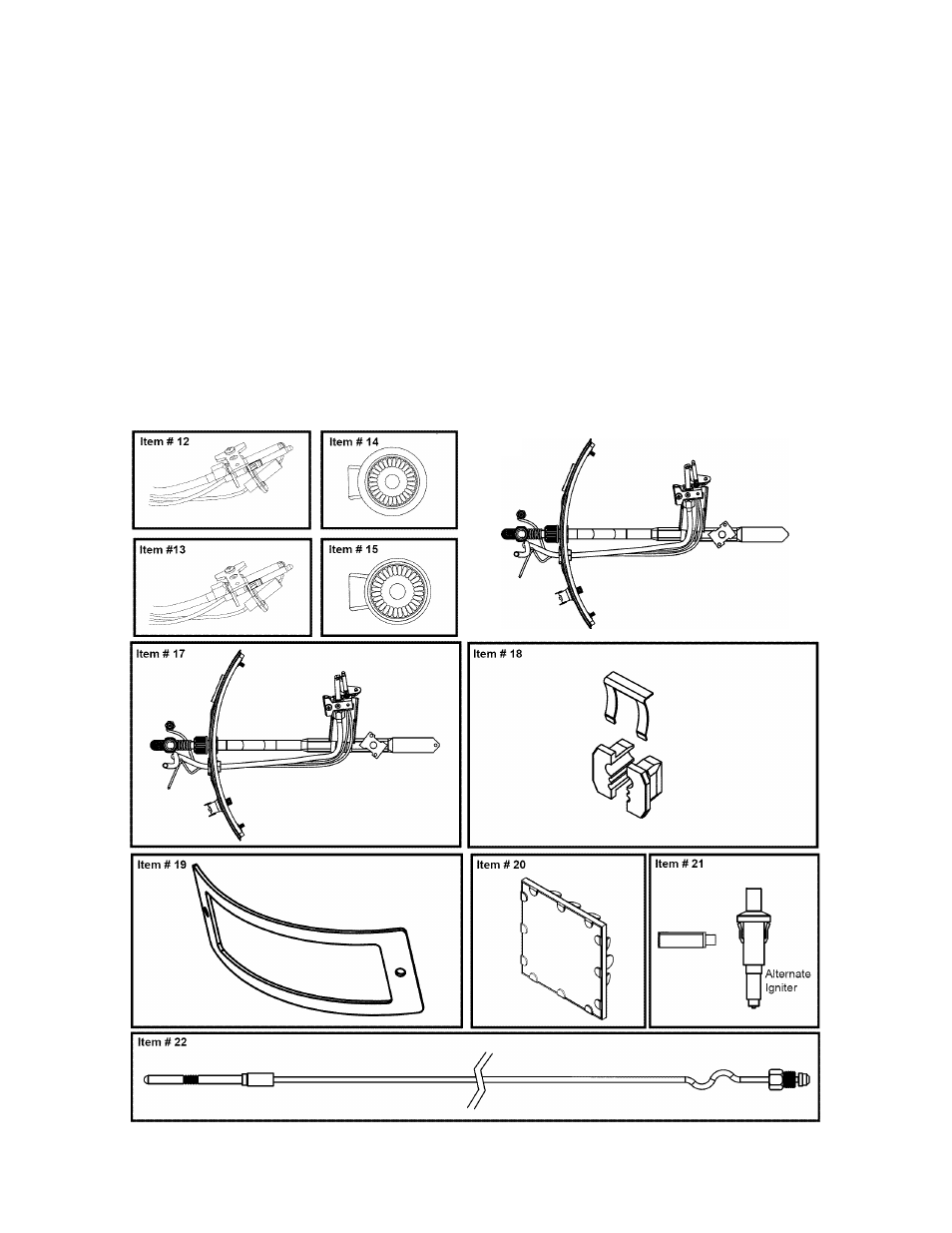

Listed Parts Kits and Illustrations
Item 12: Pilot/Pilot Tube Assembly kit, which contains the pilot assembly, thermocouple, igniter electrode and retainer clip
(Natural Gas)
Item 13: Pilot/Pilot Tube Assembly kit, which contains the pilot assembly, thermocouple, igniter electrode and retainer clip
(L.R Gas)
Item 14: Burner (Natural Gas/Low Nox)
Item 15: Burner (L.R Gas)
Item 16: Manifold door assembly which contains the manifold tube, gasket, door, pilot tube, thermocouple, two piece
wire connector with retainer clip, thermal switch, and pilot assembly. (Natural Gas/Low Nox)
Item 17: Manifold door assembly which contains the manifold tube, gasket, door, pilot tube, thermocouple, two piece
wire connector with retainer clip, thermal switch, and pilot assembly. (L.R. Gas)
Item 18: Contains two piece wire connector and retainer clip
Item 19: Contains manifold door gasket
Item 20: Contains view port
Item 21: Contains piezoelectric igniter button
Item 22: Contains thermocouple
Item #16
