Instailation Instructions

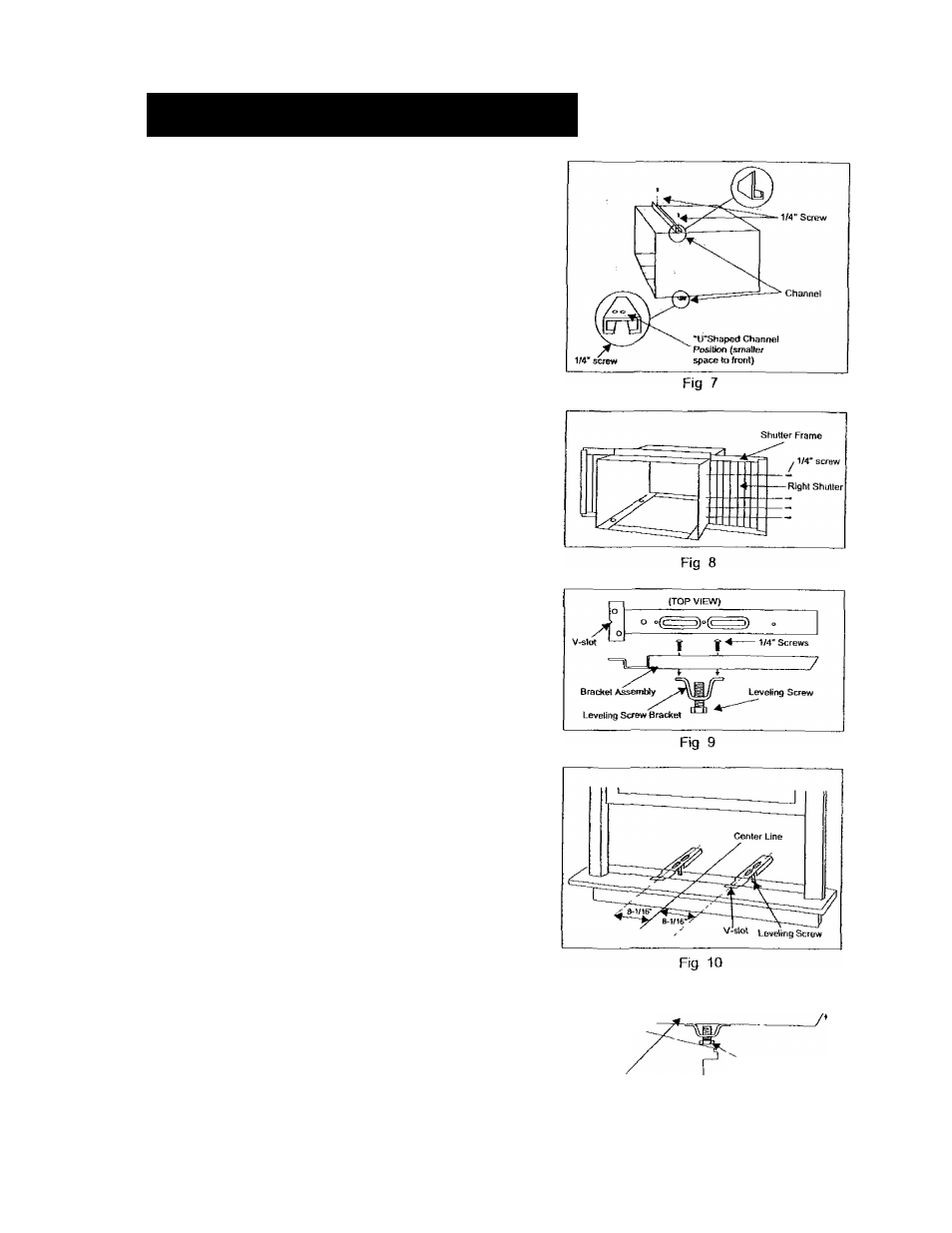

4. Assembly of the upper & lower channels to
the cabinet
A. " L" Shaped Top Channel: Install the "L" shaped
top channel to the cabinet as shown in {Fig 7) using
(4) 1/4" screws
B. *‘U" Shaped Bottom Channel: Install the "U"
shaped bottom channel to the cabinet as shown in
(Fig 7) using (4) 1/4” screws
5 Assembly of the side shutters
(curtains) to the cabinet.
Slide the shutters into the top and bottom
channels as shown in {Fig 8) The shutters are
identified (on each frame) as "left" & "right". Attach the
shutters to the cabinet using (2) 1/4" screws on
each side
6. Installation of Mounting Brackets and
First Sealing Strip
(Model 463AAC005BA)
NOTE; Windows come in a
variety of different styles Therefore, it may be
necessary to modify or improve your particular
installation
A Assemble the leveling screw bracket to the
bracket assembly as shown in (Fig 9), using
two 1/4” screws provided Install the leveling
screws into each of the leveling screw brackets
(This will require the use of an adjustable wrench)
B Measure the inside window sill width and find
the center line as shown in (Fig, 10) From this
center line, measure 8 1/16” on each side and
mark these points Align the V-sIot in each bracket
on these marks and mount to sill using (2) 3/4"
screws provided per bracket Brackets should be
perpendicular to the inside window silt See(Fig 11)
Inside Window Sit 3/16' Maximum
Bracket Assembly
Leveling Screw
Fig 11
8
