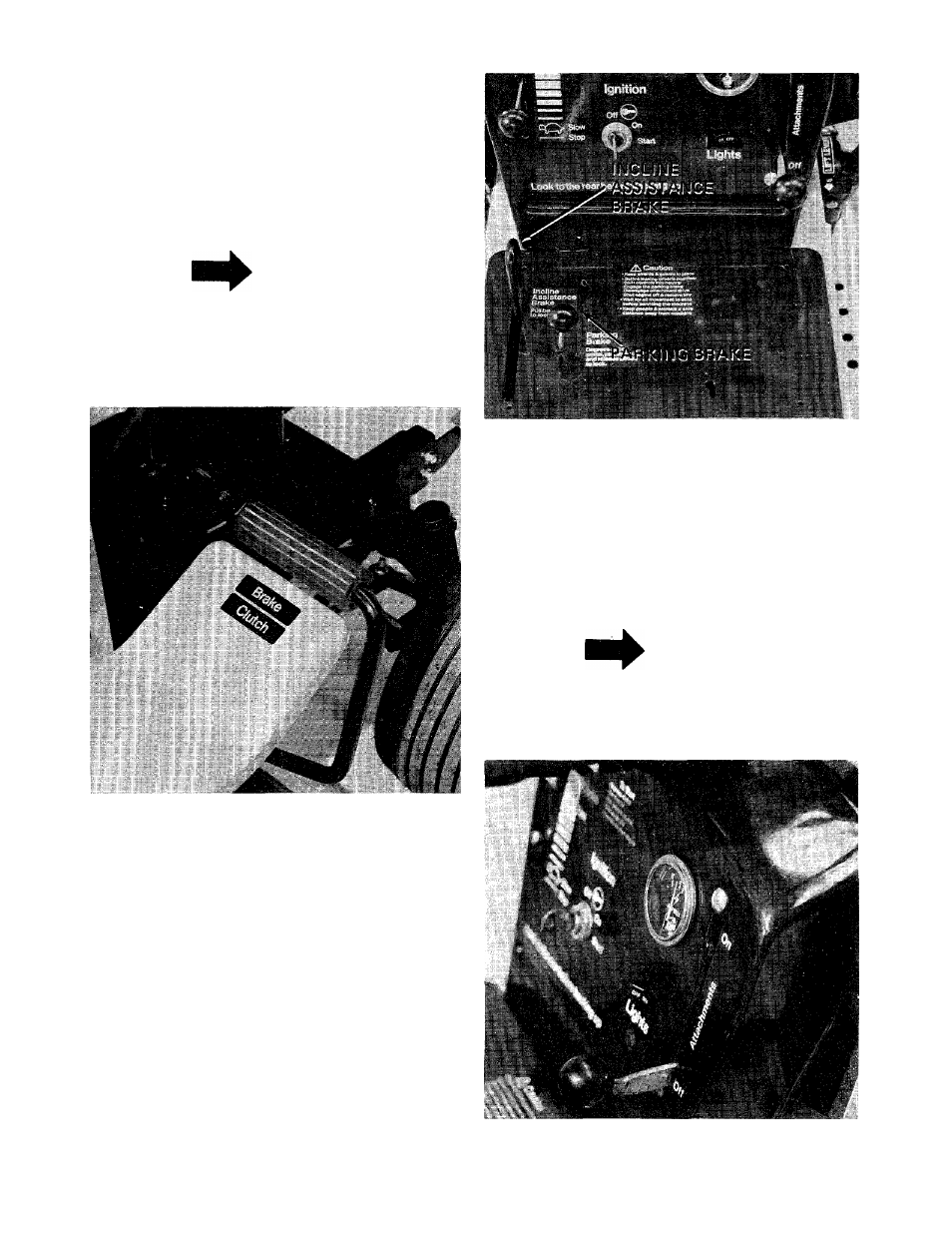

Clutch-Brake Pedal
The clutch-brake pedal is located on the right side
of the tractor. Depressing the clutch-brake pedal
part way disengages the clutch.
Pressing the pedal all the way down disengages
the clutch and engages the disc brake. See figure
7.
NOTE
The dutch-brake pedal must
depressed to start the engine.
be
FIGURE 7.
Parking Brake
To set the parking brake, depress the clutch-brake
pedal and pull up the parking brake knob. It will
stay in the raised position. To release the parking
brake, depress and release the clutch-brake pedal.
See figure 8.
Incline Assistance Brake
When stopping on a hill, hold the lever back while
you release the clutch-brake pedal until the tractor
begins to move, then release the lever. This
prevents you from moving on the hill while re
leasing the clutch. See figure 8.
FIGURE 8.
PowerTake Off (PTO) Lever
The PTO engagement lever is located on the right
side of the dashboard. It is used to engage the
blades on the cutting deck or snow thrower at
tachments. To turn on the attachment, lift the
lever slowly and lock it in the notch. To turn off the
attachment, remove the lever from the notch and
lower it to the off position. See figure 9.
NOTE
The PTO Engagement Lever must
be in the “OFF” position to start
the engine.
FIGURE 9.
