Bolens 131-730A User Manual
Page 19
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
131-050A
^
131-730A
6 7
Color Code Chart
Black
Red
^Zl
Blue
White
r
■ —1
Green
WZ»
Yellow
I555!S3
Orange

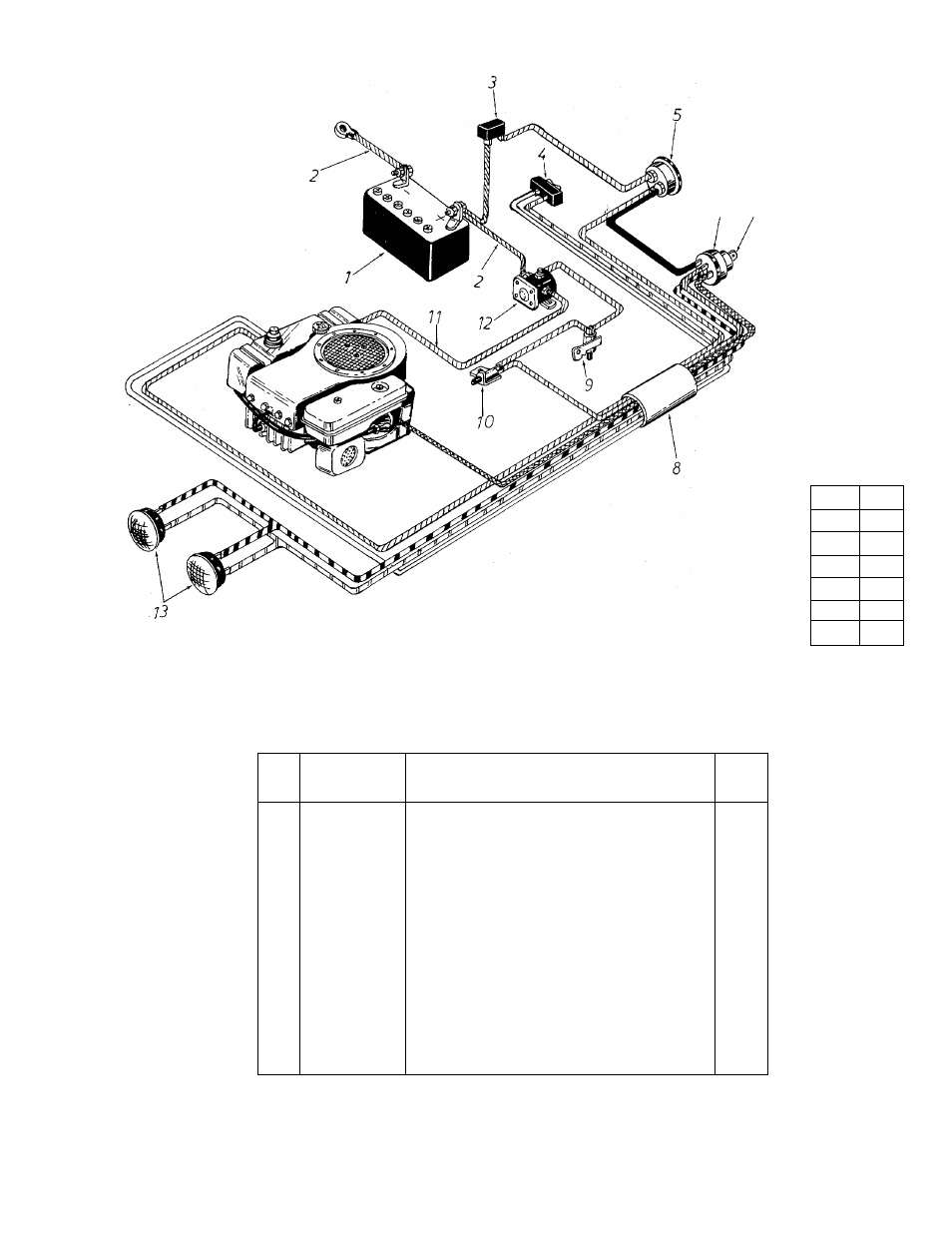

PARTS LIST FOR ELECTRICAL SYSTEM 131-050Aand 131-730A
Ref.
No.
PART No.
DESCRIPTION
New
Part
1
725-0453
12 V-Battery
2
725-0563
Electric Cable
3
725-0459
Circuit Breaker
4
725-0634
Light Switch
5
725-0119
Ammeter
6
725-0267
Ignition Switch
7
725-0201
Ignition Key
8
725-0667
Wire Harness
9
725-0465
Safety Switch
10
725-0268
Safety Switch
11
725-0561
Electric Cable
12
725-0530
Solenoid
13
725-0222
Headlight
