Clearance Requirements

(In Inches)

Bottom of unit to ground or

normal snow level...................... 6
Inlet air (both sides and coil

end)........................................... 12

Discharge air (top)................... . 48

Service clearance (compressor
end)...........................................30

NOTE: Unit can be installed

with 6 in. clearance on LH side

(facing control end of unit) when
24-in. clearance is maintained
from RH side and coil end.

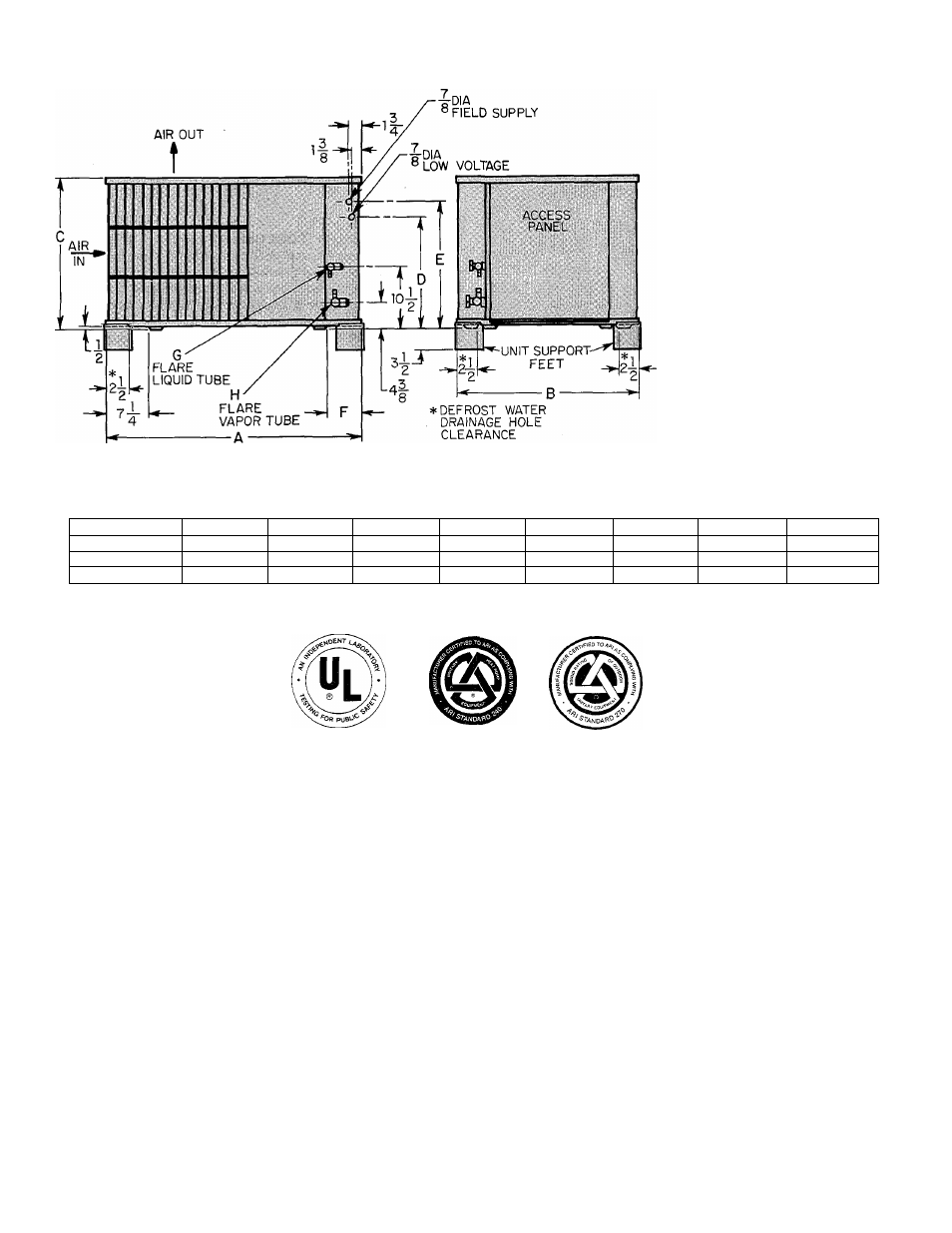

DIMENSIONS (In Inches)

Size

018 & 024

25-5/16

18-3/16

20-1/4

5-3/4

3/8

3/4

030 & 036

31-5/16

24-3/16

26-1/4

5-3/4

3/8

3/4

042, 048 & 060

41-5/16

34-3/16

36-1/4

3/8

3/4

CERTIFICATION APPLIES ONLY WHEN

THE COMPLETE SYSTEM IS

LISTED WITH ARI.

HP-54
