CONNECT BATTERY (See Figs. 2 and 3|
A
CAUTION: Do not short batterf termi­
nals by al ¡owing a wrench or any other
object to contact both terniiiials at the
same time. Before connecting battery,
remove metal bracelets, wristwatch
< t > *1 I t, n
first to prevent s
tal qrounding. TKM
lire ¡it! ai • H i-c ^ 1?.' I
p.i.i to ; I '. I 'tt .I
® C'pf ri i»{>
J <
i .(h wiii i.i- f t< 1i. r I ¡riSiic.
• R- ft Ji- : nn -,^1 f fct f fi I ' u vrt ' f •']
• l‘'ih. h-*Ter. .' |.i!: ,11 fc ^ir 'll ' I a . f . v e r
irdsta!. a on l - t - > iinL«-! .uoateo r.-tu'cen i-tr,'na*s)
chaty' b. tif n- fo' ,aiiH‘r!iiim ot or<- n o y r d t C - ' C j .-mps.
• First ccnnect ril-[ 1 0 ittcivcc.blpt( f o . i t n (+) leirninal
With tiex bC’lt 1at luc> Wu. h‘o' -.nd hex nut as
sh? T rpht'> . a ! /
• Co» nect BLAGF yr>un>Jrg cabi- to negative {) termi­
nal with rcrmininy b-\ bait, flat vasher. iock washer
and hex nut Tight'-; i r,t< ureiy
• Close battery box door.
Open battery box door for:
• Inspection for secure connections (to tighten hard­
ware).
• Inspection for corrosion.
» Testing battery.
• Jumping (if required).
• Periodic charging .
POSITIVE
(RED) N
CABLE
DISCARD
TERMINAL
PROTECTIVE
CAPS
HEX
LOCK
WASHER
/ FLAT
/ / WASHER
NEGATIVE
(BLACK) CABLE

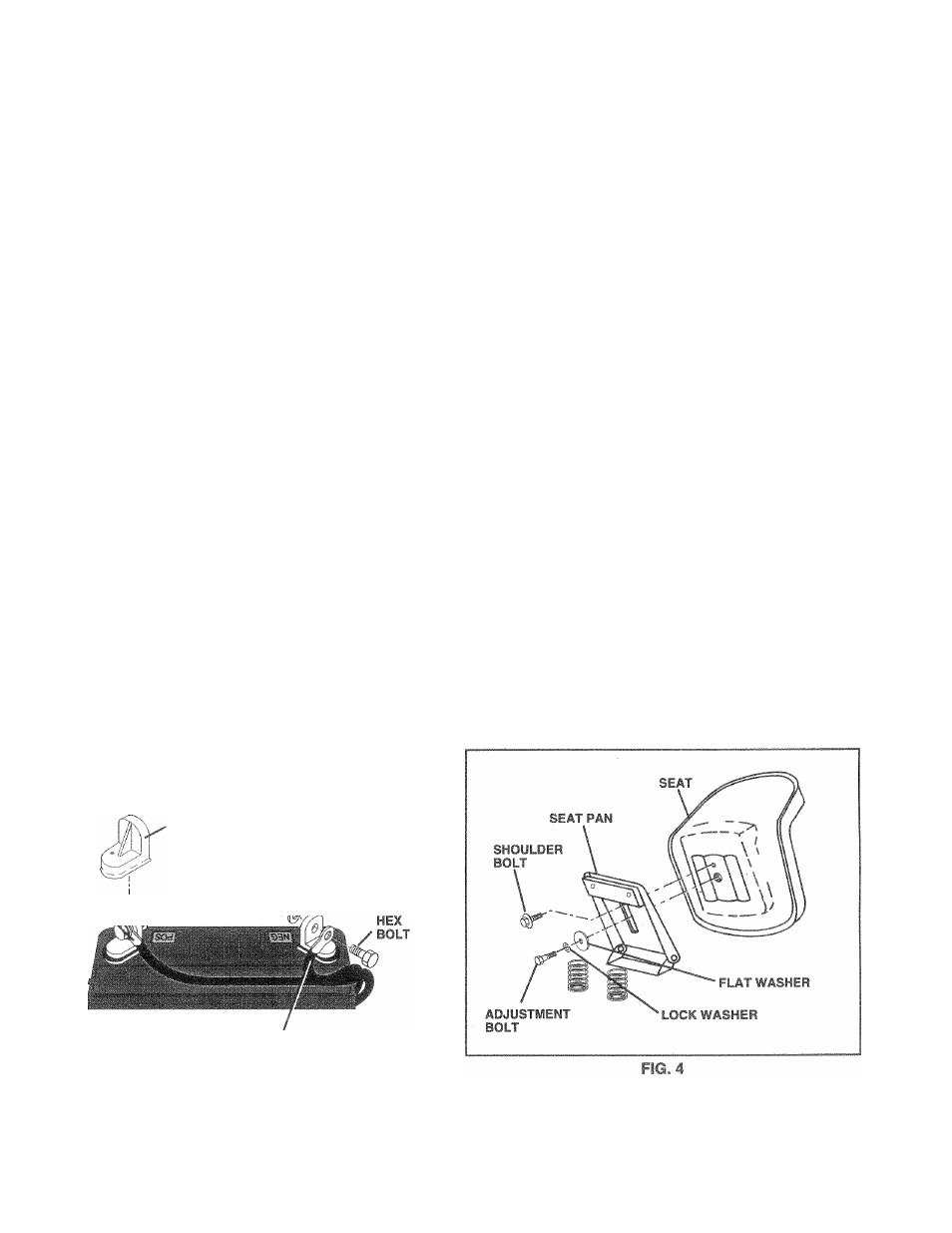

FIG. 2
SEAT
PAN
BirTERY-
BOX DOOR
FIG. 3
INSTALL SEAT (See Fig. 4|
Adjust seat before tightening adjustment bolt.
• Remove cardboard packing on seat pan.
• Place seat on seat pan and assemble shoulder bolt.
• Assemble adjustment bolt, lock washer and flat washer
loosely. Do not tighten.
• Tighten shoulder bolt securely.
• Lower seat into operating position and sit on seat.
• Slide seat until a comfortable position is reached which
allows you to press clutch/brake pedal all the way
down.
• Get off seat without moving its adjusted position.
• Raise seat and tighten adjustment bolt securely.
