Page 20: To install mower (see fig. 17)
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
' . n r ' h - ' i a t i l . ¿ . r s . n i S T M r N T P .
A
CAUTION: BEFORE PERFORMING ANY SERYICE OR ADJUSTMENTS:
•
Depress cluich/brake pedal fully and set parking brake.
•
Place motion control lever in neutral (N) position.
•
Place attachment clutch in “DISENGAGED” position.
•
Turn ignition key “OFF” and remove key.
•
Make sure the blades and all moving parts have completely stopped.
•
Disconnect spark plug wire from spark plug and place wire where it cannot come in contact
with
plug.
TR/%f T"r
TO I
iiOiiT T :
'rr,
Mo#'i r
tun iti f,oinTheri'iriiid*-ctiir t.
Pi I'f dfir • I nt(
ri ‘1)1'-1
,
fh
' C
m
' ition.
f . i ' D t i a ' h . t iii'ii
/1
i> r / a r t i
l
j l
>
' H./k« rtoits
|fi4<- ^ t j. *tSi '•!
Roll belt off engine pulley.
Disconnect clutch rod from clutch lever by removing
retainer spring.
DiSLOiineci ami-swrty bar from chassis bracket by
leit’uvihg leteinei spring.
Disconnect suspension arms from rear deck brackets
by removing retainer springs.
Disconnect front links from deck by removing retainer
springs.
Raise lift lever to raise suspension arms. Slide mower
^ out from under tractor.
IMPORTANT:
iF AN ATTACHMENT OTHER THAN THE
MOWER IS TO BE MOUNTED TO THE TRACTOR, THE
R.H. AND L.H. SUSPENSION ARMS MUST BE REMOVED
FROM TRACTOR.
TO INSTALL MOWER (See Fig. 17)
•
Raise attachment lift lever to its highest position.
•
Slide mower undertractor with discharge guard to right
side of tractor.
® Lower lift lever to its lowest position.
•
install mower in reverse order of removal instructions.

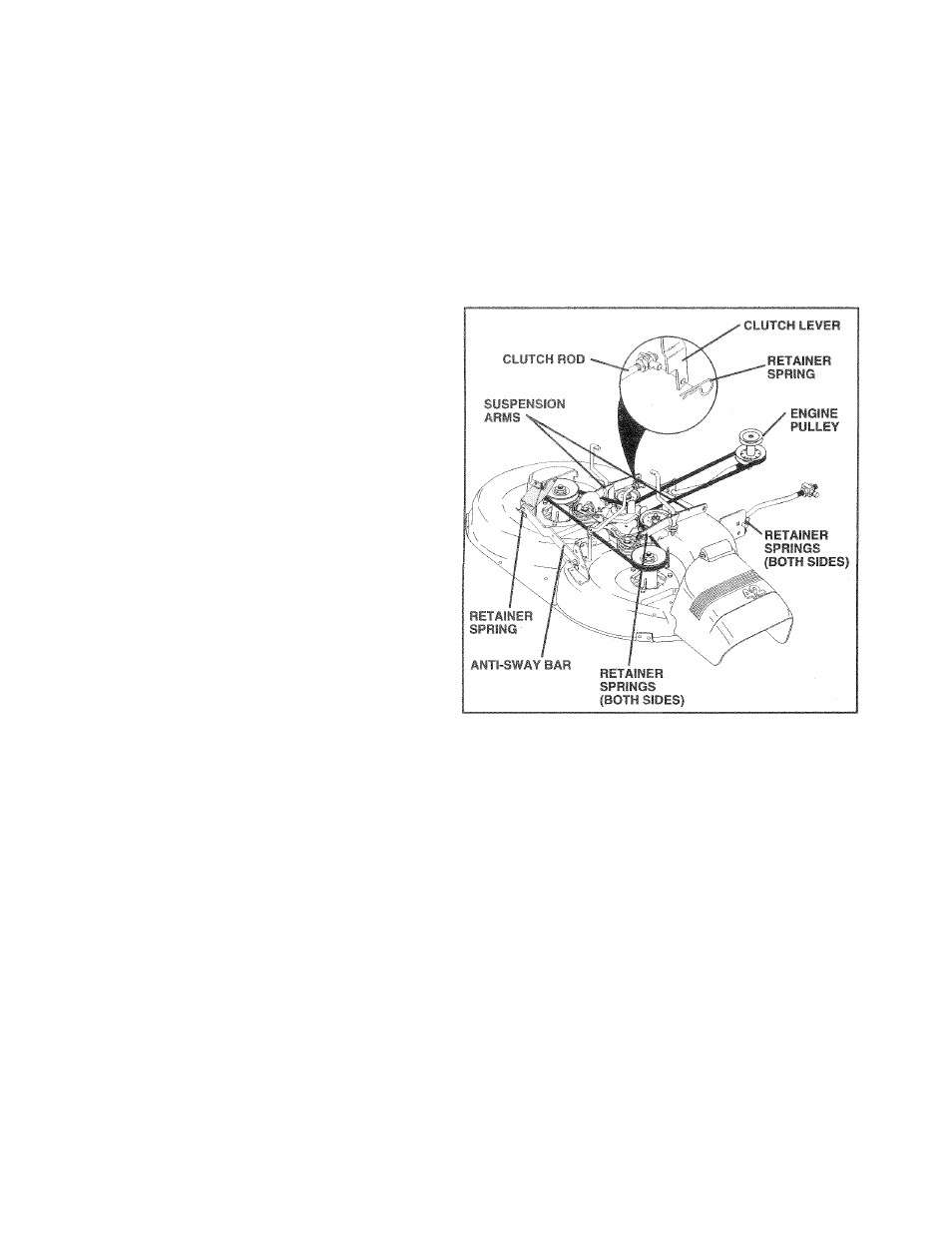

FIG. 17
20
