TOOLS REQUIRED FOR ASSEMBLY
/
•• P- b -1 p'i 1
,
, . .
,
:
K‘l nch SI,
L - , h *
3/d" y ^ L k ; ! i I " I < l i t t t i l l , y Hills
(2) 7/16" wrenches
Tire pressure gauge
(2) 1/2" wrenches
(1) 9/16" wrench
When right or left hand is mentioned in this manual, it
means when you are in the operating position (seated
behind the steering wheel).
TO REMCj¥t 1
Hht
TUR FROit CARTON
UNPACK r ASTON
•
Remove al! accessible loose parts and parts cartons
from carton (See page 5).
•
Cut, from top to bottom, along lines on al! four comers
of carton, and lay panels flat
® Check for any additional loose parts or cartons and
remove.
BEFORE ROLLING TRACTOR OFF SKID

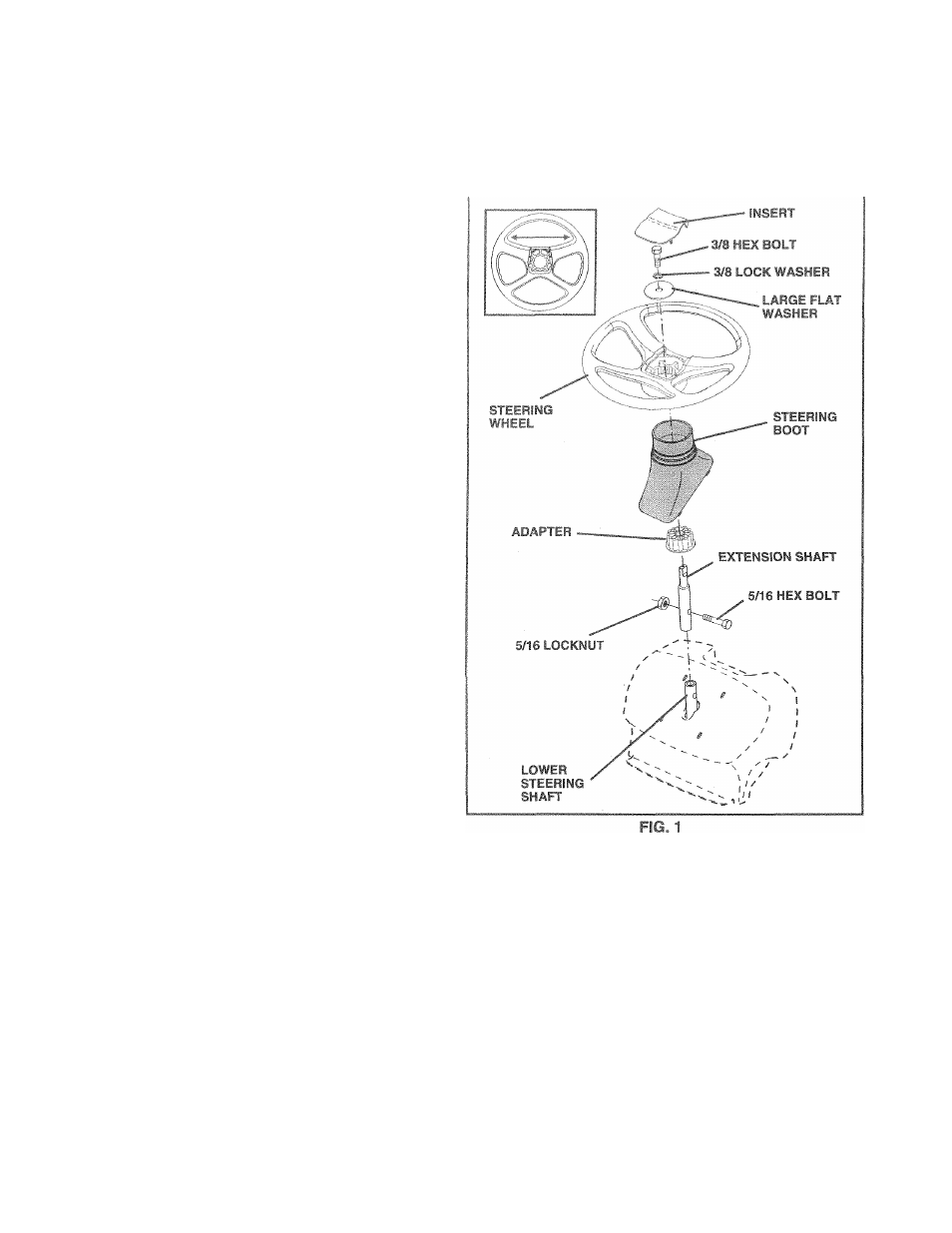

ATT*w*,H TTFF.PiPC WHFFb Fig. 1)
L it V-L N Sil/CT Ai.u L’> Hi
e
ori '.hah O i ' f - V s / V ifc iipg.>-hifl /-lign
nrmii.ro
II '
shat'', t^nd
-t.shiil O, I , i I, ,',t (l t , 'T t. .’•cru II SL- Ul'ly.
IMPORIAMi TH HT. .i B t . L T / f < r » i\iUr i h C l ' R l I - T O
16-2.. FI. Lb.1 I „ R Q L L .
•
Place tabs of steering boot over tab slots in dash and
push down to secure.
INSTALL STEERING WHEEL
•
Position front wheels of the tractor so they are pointing
straight forward.
•
Slide steering wheel adapter onto steering shaft exten
sion.
•
Position steering wheel so cross bars are horizontal
(left to right) and slide onto adapter.
•
Assemble large fiat washer, 3/8 lock washer, 3/8 hex
bolt and tighten securely.
•
Snap steering wheel insert into center of steering
wheel.
•
Remove protective materials from tractor hood and
gri.L
IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR
IS TO ROLL OFF SKID.
TO ROLL TRACTOR OFF SKID (See Opera
tion section fot location and function of con
trols)
•
Press lift lever plunger and raise attachment lift leverto
its highest position.
® Release parking brake by depressing clutch/brake
pedal.
•
Place freewheel control in freewheeling position to
disengage transmission (See ‘TO TRANSPORT” in
the Operation section of this manual).
» Roll tractor backwards off skid.
•
Remove banding holding discharge guard up against
tractor.
