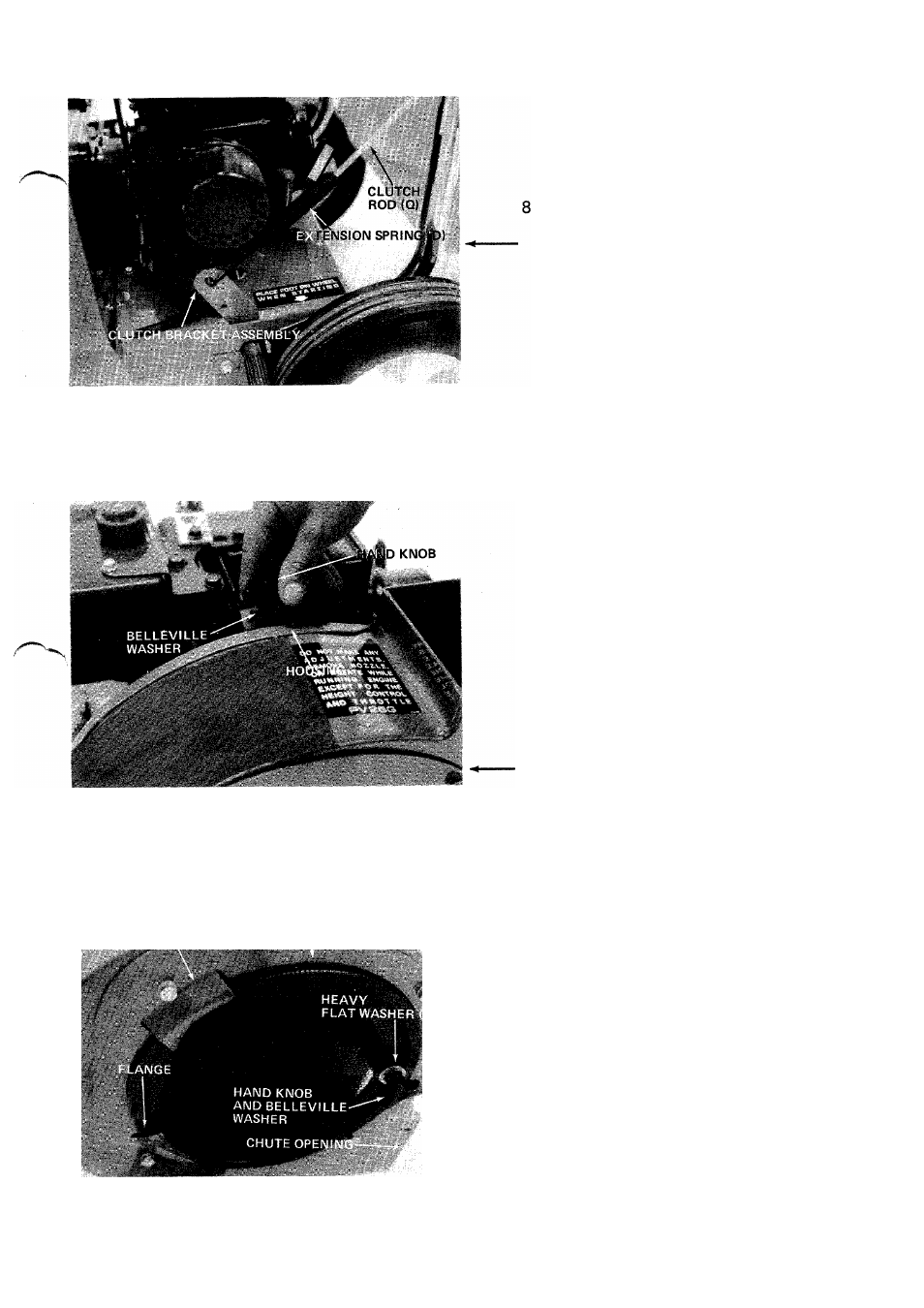

FIGURE 10.
Hook top (hooked end) of clutch rod into clutch
grip. Hook spring into clutch bracket assembly.
See figure 10. Spring should not have any slack.
Adjust nut so that when the clutch grip is all the
way up, there is no slack in the spring.
^ WARNING
\
Engine must be stopped (off) and
spark plug wire disconnected.
ASSEMBLY INSTRUCTIONS
To Convert from a Vacuum to a Leaf Blower.
1. Remove the bag.
2. Remove the air duct assembly by removing two
hand knobs and belleville washers.
3. Remove the nozzle by removing one hand knob
and belleville washer.
4. Remove the hand knob and belleville washer
holding the housing to engine brace. See figure 11.
FIGURE 11.
5.
Lift up on the housing and rotate it 90° clock
wise. Chute opening should be to the right hand
side when viewed from the front of unit. See
figure 12.
6.
Place the impeller guard (S) into flanges on front
of housing. Line up hole in screen with hole on
housing. Secure with one hand knob, belleville
washer and heavy flat washer (H). See figure 12.
FIGURE 12.
