ELASTIC
OPENING
TOP STRAP
ON BAG
/
ON HANDLE

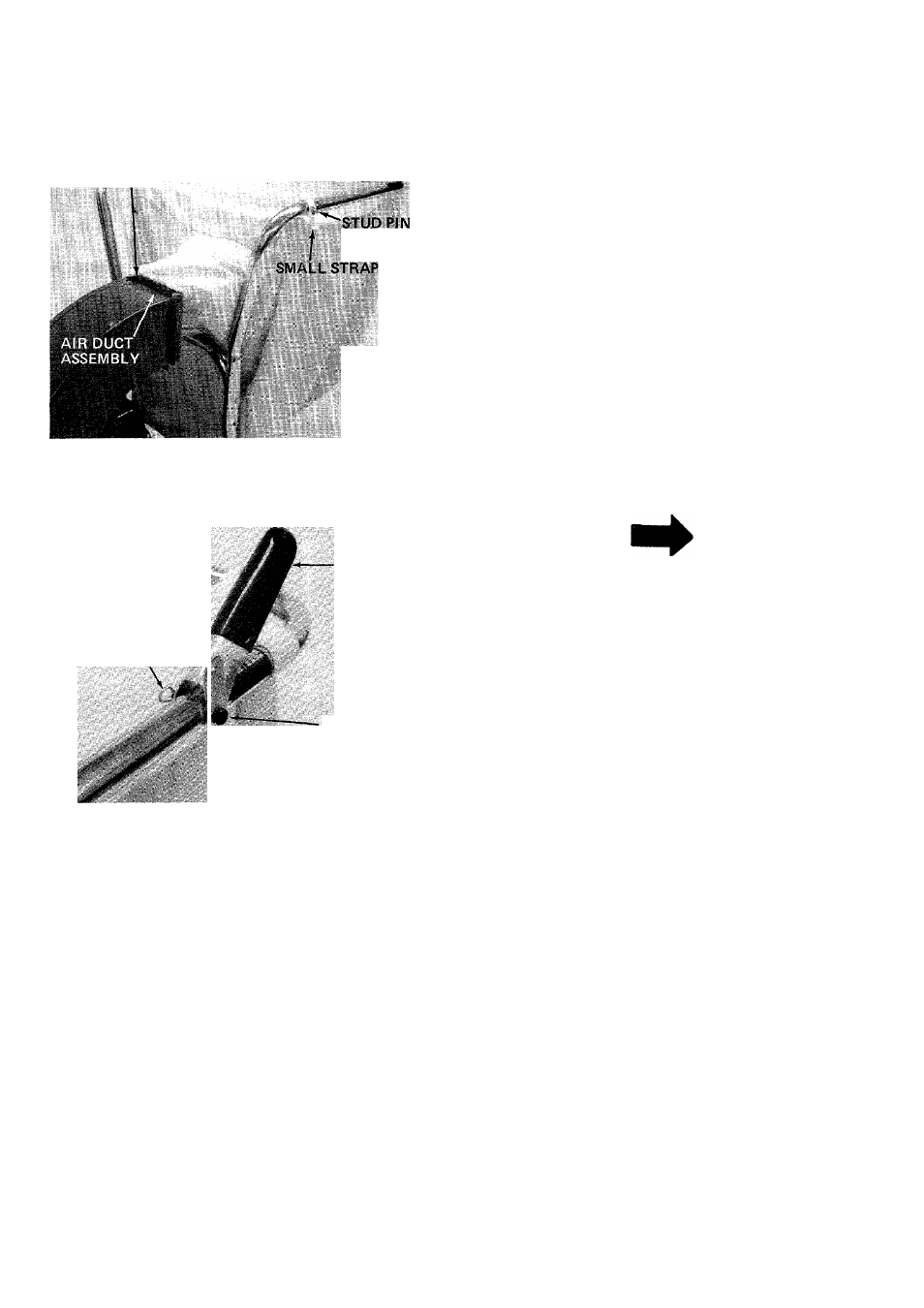

5. Assemble the bag by slipping the top straps on
bag (M) over upper handle. Hook two small straps
over stud pins on handle. Slip elastic opening of
bag over air duct assembly. See figure 7.
X
BAG (M)
FIGURE 7.
HAIR PIN
COTTER (B)
CLUTCH GRIP
ASSEMBLY (A)
CLEVIS PIN (C)
NOTE
Steps 6, 7 and 8 for self-propelled
units only.
6.
Assemble the clutch grip (A) to the left hand
side of upper handle. Secure in place with clevis,
pin (C) and hair pin cotter (B). See figure 8. Head
of clevis pin should be to the outside of handle.
FIGURE 8.
LOCK NUT (E)
EXTENSION
SPRING (D)
7. Slide the extension spring (D) onto clutch rod (Q)
as shown in figure 9. Thread lock nut (E) onto
clutch rod approximately 2 1/2 inches.
CLUTCH ROD (Q)
FIGURE 9.
