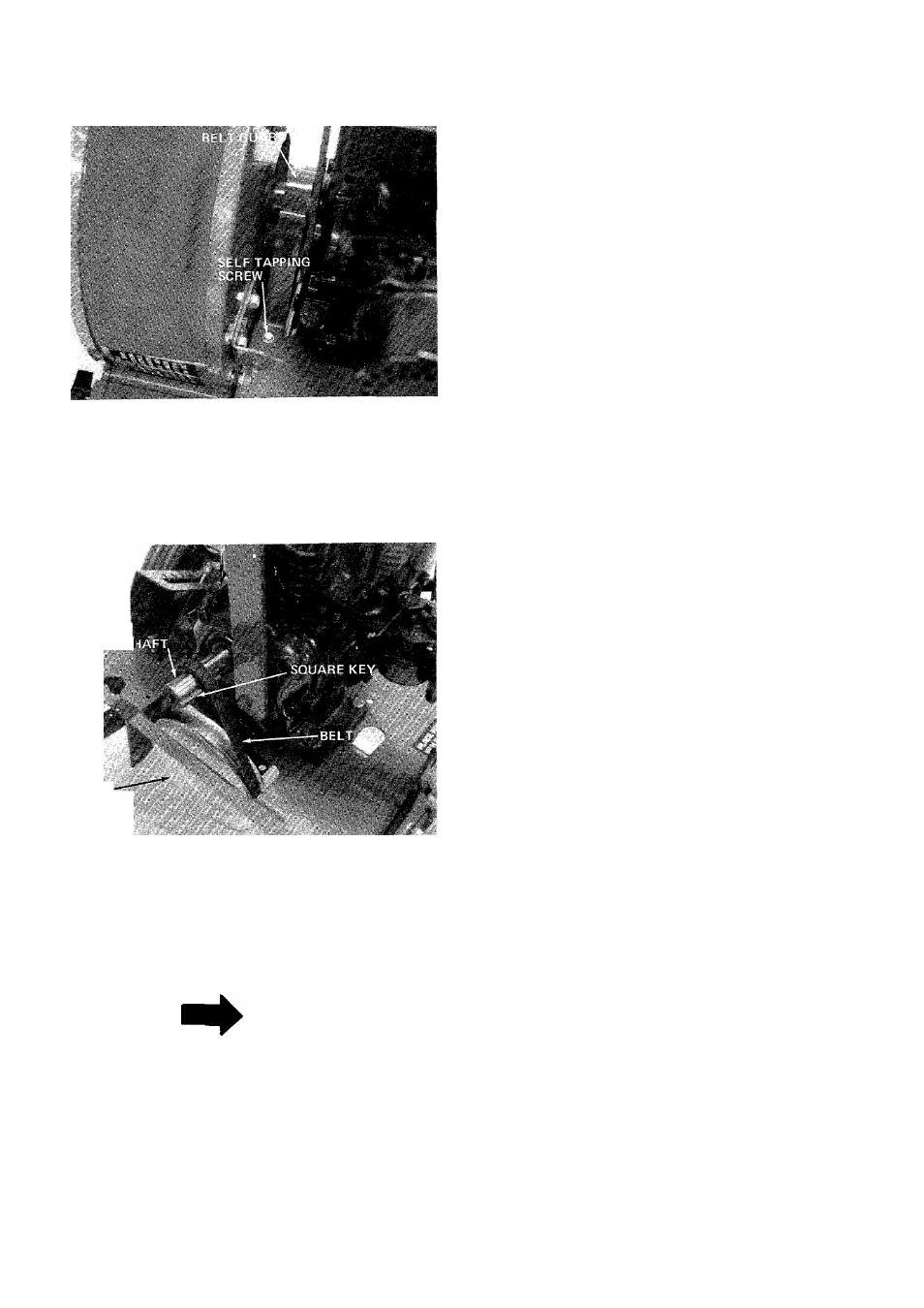

FIGURE 17.
5.
Slide belt off the impeller pulley. Slide housing
and impeller off engine crankshaft. Be careful
not to lose square key. See figure 18.
9. Secure impeller to crankshaft with hex bolt and
lockwasher, removed in step 2. Tighten securely.
10. Slip belt over impeller pulley and reassemble the
belt guard.
11. Reassemble the nozzle or impeller guard.
OFF-SEASON STORAGE
The following steps should be taken to prepare the
unit for storage.
1. Clean the engine and the entire unit thoroughly.
2. Refer to engine manual for correct engine storage
instructions.
3. Store unit in a clean, dry area.
ENGINE
CI-iANK .s
P.T.O.
PULLEY
FIGURE 18.
6. Slide belt off crank shaft.
7. Remove belt from P.T.O. pulley and install new
belt. See figure 18.
NOTE
When reassembling the new belt, the
aid of another person will be helpful.
8.
Turn the crankshaft until the key way on shaft is
directly on top. While holding housing assembly
and impeller assembly, line up the key way on the
pulley with the key on the crankshaft, and slide
housing and impeller assemblies onto crankshaft.
