£ - >EMBLY

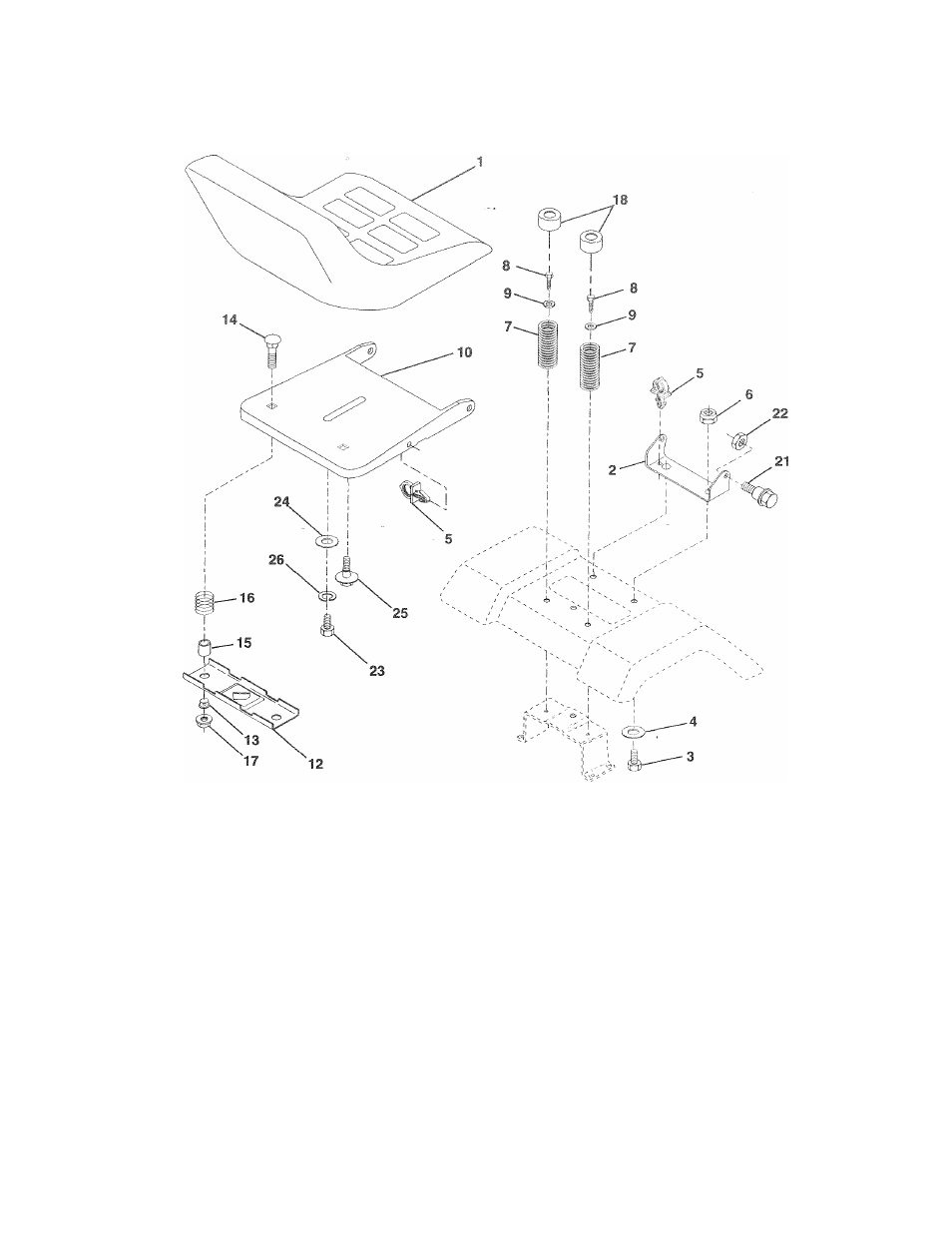

REPAIR PARTS
TRACTOR - - MODEL ^vMiiBFR CHD14542A
KEY PART
NO. NO.
1 140116
2 140551
3 74760616
4 19131610
5 145006
6 73800600
7 124181X
8 17490616
9 19131614
10 155925
12 121246X
13 121248X
DESCRIPTION
Seat
Bracket Pivot Seat
Bolt Hex 3/8 - 16 X 1
Washer 13/32 X 1 “
Clip Push-In Hinged
Nut Lock Hex w/Wsh 3/8-16 Unc
Spring Seat Cprsn 2 250 BIk Zi
Screw Thdrol 3/8-16 X 1 l y-tt
Washer 13/32 X 1 X 14 Ga
Pan Seat
Bracket Mounting Switch
Bushing Snap BIk Nyl 50 Id
KEY PART
NO. NO.
14 72050412
15
134300
16 121250X
17 123976X
18 124238X
21 153236
22 73800500
23 74780814
24 19171912
25 127018X
26 10040800
NOTE: All component dimensions given
1 inch = 25.4 mm.
DESCRIPTION
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
Spacer SplH 28x 96 Yel Zinc
Spring Cprsn 1 27 BIk Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Cap Spring Seat
Bolt Shoulder 5/16-18 UNC
Nut Lock Hex W/lns 5/16-18 Unc P
Bolt Fin Hex 1/2-13 X 7/8 Gr 5
Washer 1 7/32 X 1 -3/16 X 12 Ga
Bolt Shoulder 5/16-18 X 62
Washer Lock Hvy Hid Spr 1/2
in U.S. inches
37
