SERVICE AND ADJUSTMENTS

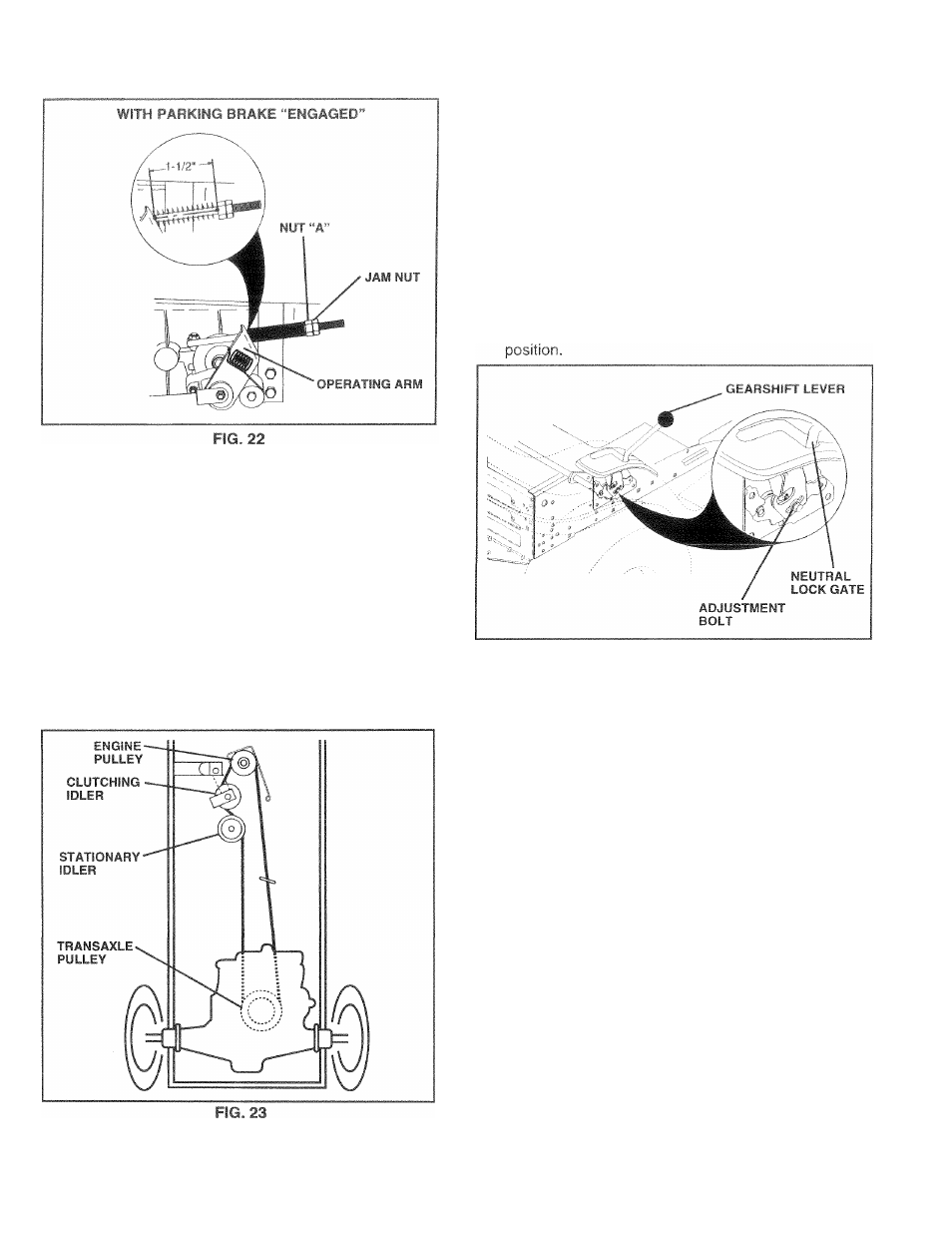

TO REPLACE MOTION DRIVE BELT
(See Fig. 23)
Park the tractor on level surface. Engage parking brake.
For assistance, there is a belt installation guide decal on
bottom side of left footrest.
•
Remove mower (See “TO REMOVE MOWER” in this
section of this manual.)
•
Remove belt from stationary idler and clutching idler.
•
Pull belt slack toward rear of tractor. Remove belt
upwards from transaxle pulley by deflecting belt keep
ers.
•
Pull belt toward front of tractor and remove downwards
from around engine pulley.
•
Install new belt by reversing above procedure.
iRANSAALt Ob A ft SHIFT LtVfcH
APJnSTrUiuhr rTf.- Fi'j
Tf «■ '. ill ' h'
I|i I
t.t h li-ccr
.1
’"lib Hi. ii hill I*- r
I 111 1 -il'i ,1 ItJ'i ||. t 1 ,lf f 1'11-lti >.
UiH 111
preset at the factory; however,
if
adjustment is needed,
proceed rullu/i/c.
•
Make sure transaxle is in neutral (N).
NOTE: When the tractor rear wheels move freely, the
transaxle is in neutral.
•
Loosen adjustment bolt in front of the right rear wheel.
•
Position the gear shift lever in the neutral (N) position.
•
Tighten adjustment bolt securely.
NOTE: If additional clearance is needed to get to adjust
ment bolt, move mower deck height to the lowest
FIG. 24
TO ADJUST STEERING WHEEL ALIGNMENT
If steering wheel crossbars are not horizontal (left to right)
when wheels are positioned straightforward, remove steer
ing wheel and reassemble per instructions in the Assembly
section of this manual.
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe-in and camber are not adjustable on
your tractor. If damage has occurred to affect the front
wheel toe-in or camber, contact your nearest authorized
service center/department.
