OPERATION
A
CailTIOM D.'i
mit
opferatp thn
«itric.»,aich*ri1» rro^PtH et^uipprd thr di-*h^rae ci'jaid pii plareTO OPERATE ON HILLSACAUTION: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope.Choose the slowest speed before starting up or down hills.Avoid stopping or changing speed on hills.If slowing is necessary, move throttle control lever to slower position.If stopping is absolutely necessary, push clutch/brake pedal quickly to brake position and engage parking brake.Move gearshift lever to 1st gear. Be sure you have allowed room for tractor to roll slightly as you restart movement.T0 restart movement, slowly release parking brake and clutch/brake pedal.Make all turns slowly.TO TRANSPORTRaise attachment lift to highest position with attachment lift control.When pushing or towing your tractor, be sure gearshift lever is in neutral (N) position.Do not push or tow tractor at more than five (5) MPH.NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).N. •< )i-,v ii » i i i f i M ilicTi .1^' 0 h, jfidh ,vith * i »- ¡«i f ,* >'•ir ct'i, U"' 'iMrnfi . ' 'A I < > 1 1 ./i/nr. rc r , ' J ' l . •Ahll* ‘ luj. > îllG M ' liO(Viltti lif <■ 'f.ur'f ,l'ij . Tl r-IJ rr iu'.c riirt! J .orBEFORE STARTING THE ENGINECHECK ENGINE OIL LEVEL (See Fig. 12)e The engine in your tractor has been shipped, from the factory, already filled with summer weight oil.• Check engine oil with tractor on level ground.• Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a fev*,' seconds, remove and read oil level. If necessary, add oil until“FULL” mark on dipstick is reached. Do not overfill.• For cold weather operation you should change oil for easier starting (See “OIL VISCOSITY CHART’ in the Customer Responsibilities section of this manual).• To change engine oil, see the Customer Responsibilities section in this manual.ADD GASOLINE• Fill fuel tank. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.IMPORTANT: WHEN OPERATING IN TEMPERATURES BELOW 32“F(0°C), USE FRESH, CLEAN WINTER GRADE GASOLINE TO HELP INSURE GOOD COLD WEATHER STARTING.WARNING; Experience indicates that alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage Instructions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.ACAUTION: Fill to bottom of gas tank filler neck. Do not overfill. Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.12
»,aich*ri
1» rro^PtH et^uipprd
thr di-
*h^rae ci'jaid
pii
plare
TO OPERATE ON HILLS
CAUTION: Do not drive up or down hills with slopes greater than 15° and do not drive across any slope.
Choose the slowest speed before starting up or down hills.
Avoid stopping or changing speed on hills.
If slowing is necessary, move throttle control lever to
slower position.
If stopping is absolutely necessary, push clutch/brake
pedal quickly to brake position and engage parking brake.
Move gearshift lever to 1st gear. Be sure you have allowed room for tractor to roll slightly as you restart movement.
T
0
restart movement, slowly release parking brake and
clutch/brake pedal.
Make all turns slowly.
TO TRANSPORT

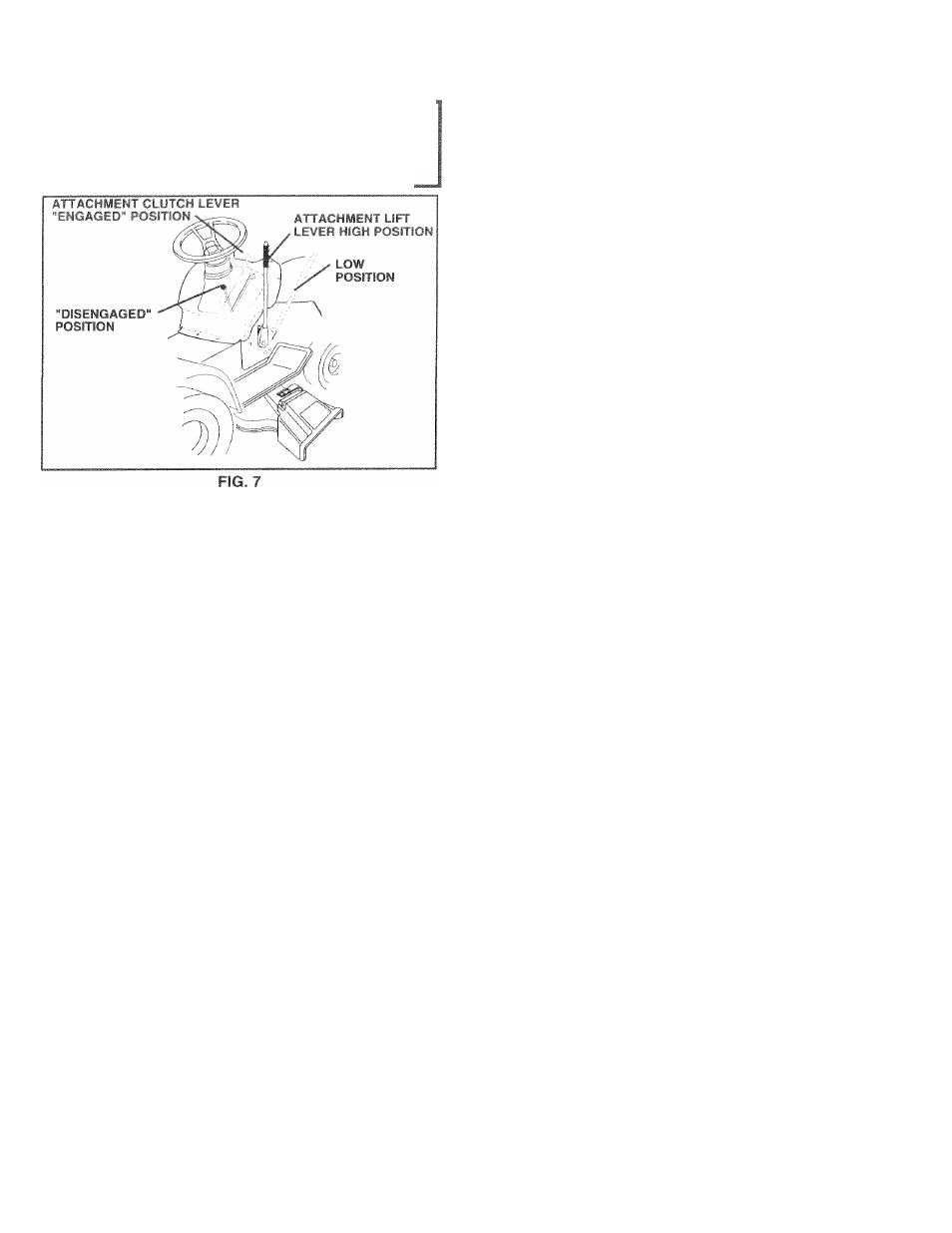

Raise attachment lift to highest position with attachment lift control.
When pushing or towing your tractor, be sure gearshift
lever is in neutral (N) position.
Do not push or tow tractor at more than five (5) MPH.
NOTE: To protect hood from damage when transporting
your tractor on a truck or a trailer, be sure hood is closed
and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.).
N. •< )i-,v ii »
i i i f i M ilicTi .1^' 0
h, jfid
h ,vith
* i »- ¡«i
f ,* >'•
ir ct'i, U"' 'iMrnfi .
' 'A I <
> 1
1 ./i/nr. rc r , ' J ' l .
•
Ahll* ‘ luj. >
îllG
M ' liO(
Viltti lif <■ 'f.ur'f ,l'ij . Tl r-IJ rr iu'.c riirt! J .or
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL (See Fig. 12)
e The engine in your tractor has been shipped, from the
factory, already filled with summer weight oil.
Check engine oil with tractor on level ground.
Remove oil fill cap/dipstick and wipe clean, reinsert the
dipstick and screw cap tight, wait for a fev*,' seconds,
remove and read oil level. If necessary, add oil until
“FULL” mark on dipstick is reached. Do not overfill.
For cold weather operation you should change oil for
easier starting (See “OIL VISCOSITY CHART’ in the Customer Responsibilities section of this manual).
To change engine oil, see the Customer Responsibili
ties section in this manual.
ADD GASOLINE
Fill fuel tank. Use fresh, clean, regular unleaded
gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.
IMPORTANT: WHEN OPERATING IN TEMPERATURES BELOW 32“F(0°C), USE FRESH, CLEAN WINTER GRADE GASOLINE TO HELP INSURE GOOD COLD WEATHER STARTING.
WARNING; Experience indicates that alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage Instructions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.
CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or use gasoline near an open flame.
12
