REPAIR PARTS

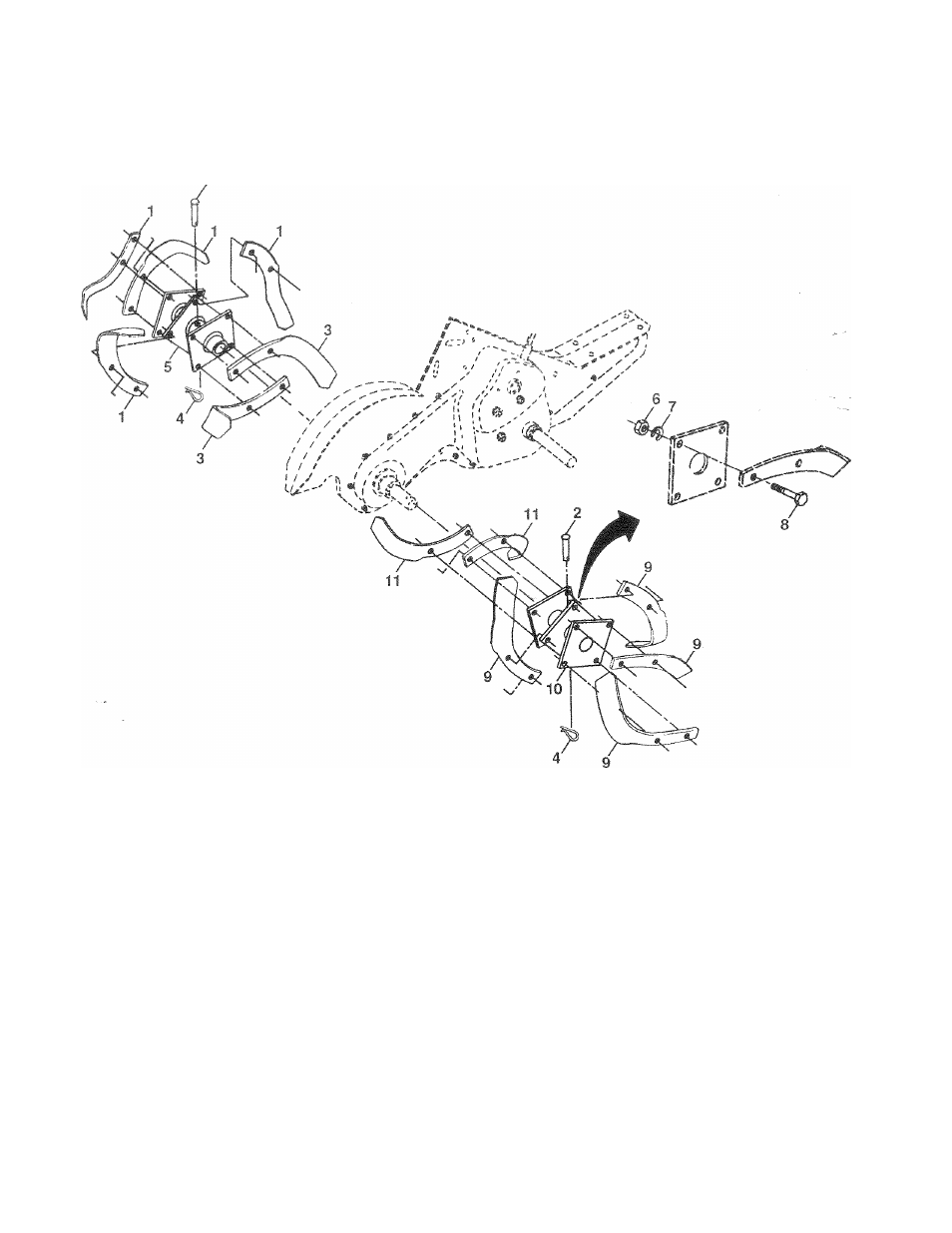

TINE ASSEMBLY
niLEB - - mnBFi wlfPBirB^ ^^DW500B
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO. NO. NO.
1 4459J Tine, Outer, L.H. 8 74610616 Bolt, Hex 3/8-24 x 1
2 132673 Clevis Pin 9 4460J Tine, Outer, R.H.
3 6554J Tine, Inner, L.H. 10 132728 Assembly, Hub and Plate, R.H.
4 3146R Clip, Hairpin 11 6555J Tine, Inner, R.H.
5 132727 Assembly, Hub and Plate, L.H.
6 73610600 Nut, Hex 3/8-24 NOTE; All component dimensions given in U.S. inches
7 10040600 Washer, Lock 3/8 1 inch = 25.4 mm
26
