i I l L£K - - MODE.. ^ НУИ500В

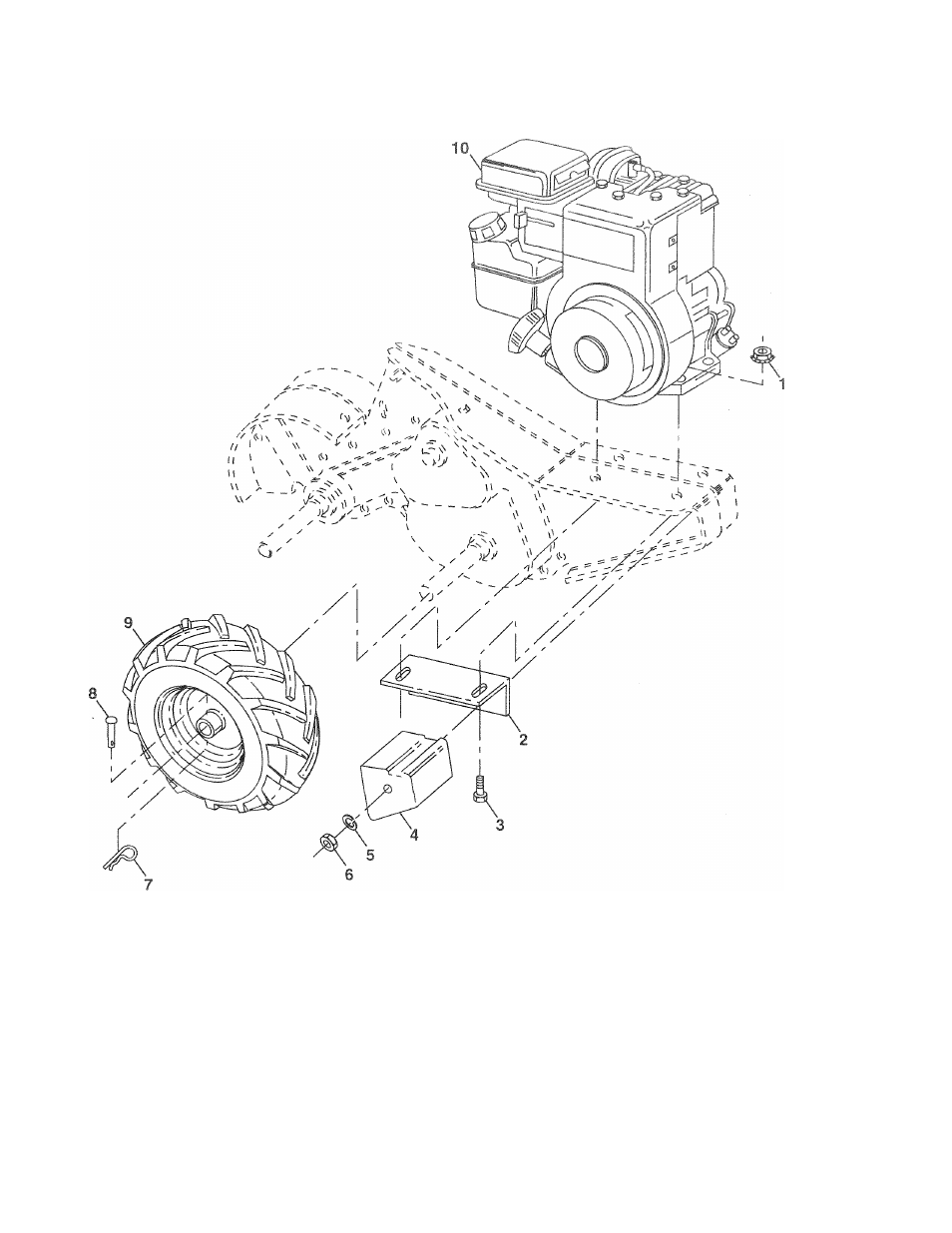

MAINFRAME, RIGHT SIDE
REPAIR PARTS
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO. NO. NO.
1 73510500 Nut, Keps 5/16-18 9 102190X Tire
2 102332X Bracket, Reinforcement 150750 Rim
3 74760524 Bolt, Hex 5/16-18x1-1/2 795R Tire Valve
4 102173X Counter Weight, R.H. 10 .................. Engine, Briggs & Stratton
5 10040600 Washer, Lock 3/8 Model No. 137202
6 73220600 Nut, Hex 3/8-16
7 44Э7Н Clip, На1ф!п NOTE: All component dimensions given in U
8 126875X Rivet, Drilled 1 inch = 25.4 mm
23
